SKY 2 - 2I640DW
with Elkhart Lake ATOM® x6413E / J6412 Processor
Overview

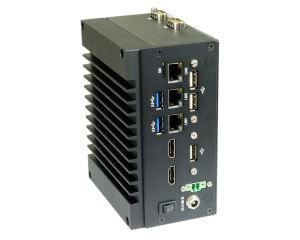

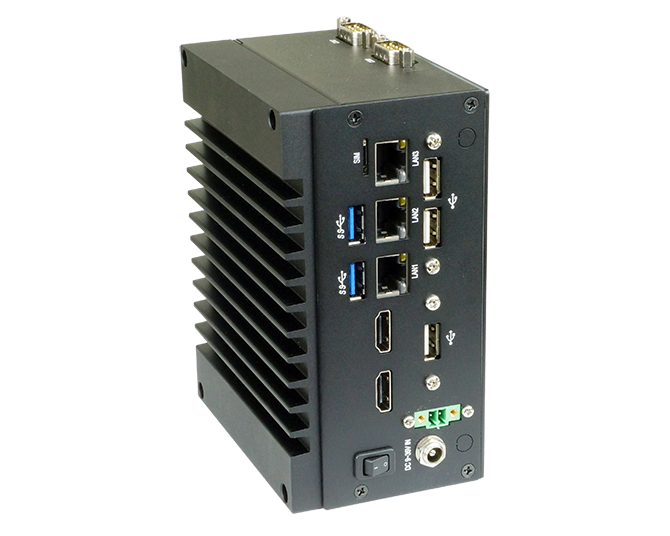

SKY 2 2I640DW is a compact fanless DIN-Rail computer with dimensions measuring just 71.9 x 111.2 x 141 mm. It features Intel Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, AIot , Edge computing and gateway.
SKY 2 2I640DW is equipped with multiple I/O, such as 2 x HDMI, 3 x 2.5 Gb Ethernet ports, 2 x USB 3.0 ports,3 x USB 2.0 ports,2 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 slots, the SKY 2 2I640DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of low power consumption and lightweight mechanical design also make SKY 2 2I640DW an ideal solution for projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- Elkhart Lake ATOM® x6413E / J6412 CPU
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI (OEM Option to DP)
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0, 2 x COM
- 2 x M.2, 4DI / 4DO (option), 1 x Nano SIM
| MODEL | SKY 2-2I640DW | |
|---|---|---|
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.25 kg | |
| Mounting | DIN Rail Mount*, VESA / Wall Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x M.2 B Key Type 2242 (PCIe x2 / USB 2.0 / SATA) 1 x Nano SIM |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 (external) |
| USB | 2 x USB 3.0, 3 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI (OEM Option to DP) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *VESA / Wall Mounting Kit, DIN Rail Mounting Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
