TERA - 2I640CW
with Elkhart Lake ATOM® X6413E / J6412 Processor
Overview
TERA 2I640CW is a compact fanless embedded computer with dimensions measuring just 56.5 x 102.4 x 145 mm. It features Intel Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, AIot , edge computing and gateway.

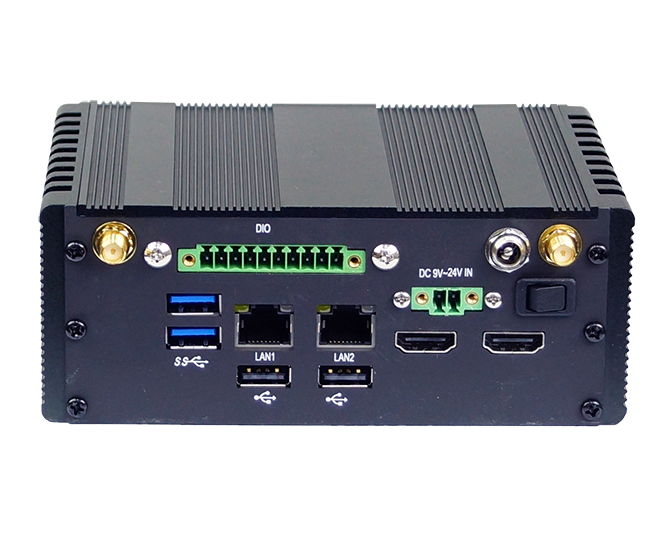

TERA 2I640CW is equipped with multiple I/O, such as 2 x HDMI, 2 x 2.5 Gb Ethernet ports, 2 x USB 3.0 ports, 2 x USB 2.0 ports and 4 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 & Mini PCIe slots, the TERA 2I640CW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of low power consumption and lightweight mechanical design also make TERA 2I640CW an ideal solution for projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- Elkhart Lake ATOM® X6413E / J6412 CPU CPU
- On Board LPDDR4 4 / 8GB
- Multiple Independent display: 2 x HDMI or DP
- 2 x Intel 2.5 GbE LAN, 2 x USB 3.0, 2 x USB 2.0, 4 x COM
- 1 x M.2, 1 x Nano SIM, 1 x Mini PCIe, 4DI / 4DO
| MODEL | TERA 2I640CW | |
|---|---|---|

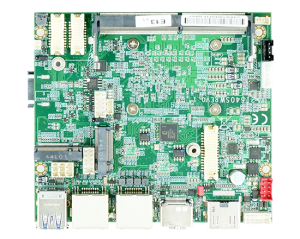

| Motherboard | 2I640CW | |
| Dimension(WxDxH) | 145W x 102.4D x 56.5H mm | |
| Weight(Incl.M/B) | 0.9 kg | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | On Board LPDDR4 4 / 8GB | |
| Storage | M.2, SSD | |
| Expansion slots | 1 x M.2 B Key Type3042 (USB 2.0 / SATA / USB 3.0-optional to PCIe x2) 1 x Nano SIM 1 x Mini PCIe (USB 2.0 / PCIe) |
|
| I/O ports | Network | 2 x Intel 2.5 GbE I225 / I226 |
| USB | 2 x USB 3.0, 2 x USB 2.0 | |

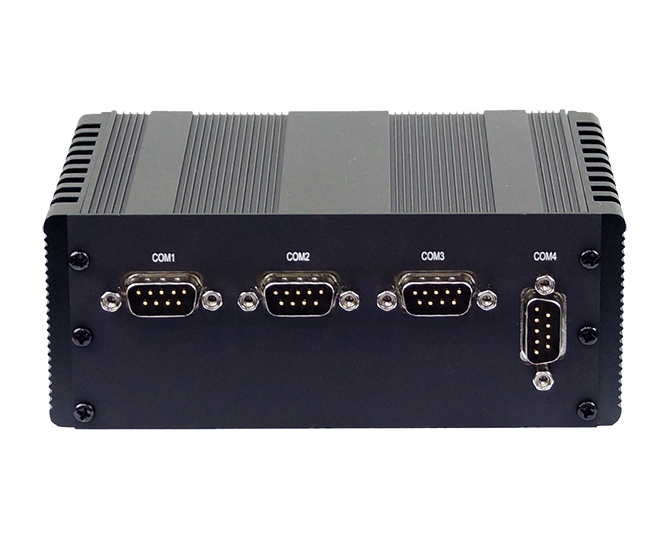

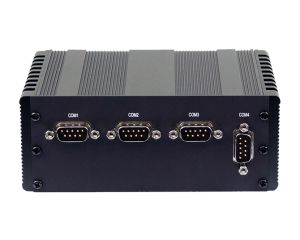

| Serial ports | 1 x RS232 / 422 / 485 ; 3 x RS232 |
|
| Display | 2 x HDMI | |
| DIO | 4 DI /4DO (option) | |
| Optional Modules & Accessory |
4G /5G LTE, M.2 Module *VESA Mounting Kit |
|
| Power | DC input : Wide Range +9~24V | |
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
