TWITTER 3I640DW
Intel® Atom™ Elkhart Lake 6000 series Processor
Overview

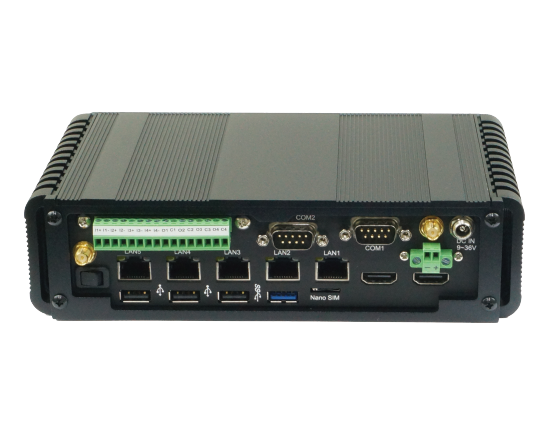

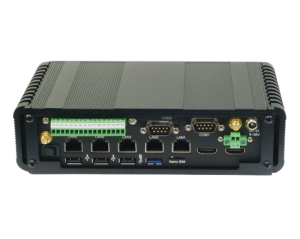

TWITTER 3I640DW is a compact fanless embedded computer with dimensions measuring at 210W x 121D x 55H mm. It equipped with Intel Elkhart Lake Atom® 6000 series processor and multiple I/O, such as 2 x HDMI,5 x 2.5 Gb Ethernet ports, 1 x USB 3.0 ports, 3 x USB 2.0 ports and 2 x COM ports and isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 & Mini PCIe slots, the TWITTER 3I640DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of low power consumption and lightweight mechanical design also make TWITTER 3I640DW an ideal solution for edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- Intel® Elkhart Lake ATOM x6413E / Celeron J6412 Quad Core CPU
- 1 x DDR4 SODIMM, Max. 32GB
- 5 x 2.5GbE, 2 x COM, 2 x HDMI, 4 x USB
- 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM
- Wide Range 9~36V DC input
| MODEL | TWITTER 3I640DW | |
|---|---|---|
| System Dimension(WxDxH) | 210W x 121D x 55H mm | |
| Weight(Incl.M/B) | 1.2 kg | |
| Mounting | VESA Mount / Wall Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel® Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM, Max. 32GB | |
| Storage | M.2, SSD HDD* | |
| Expansion slots | 1 x M.2 B Key Type 3042 (SATA / USB 2.0 / USB 3.0) 1 x Mini PCIe (USB 2.0 / PCIe-OEM to mSATA-share w/SATA) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel i225 / i226 2.5 GbE |
| USB | 1 x USB 3.0 3 x USB 2.0 |
|
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI | |
| DI/O | 4 DI / 4DO | |
| Optional Modules & Accessor |
4G / 5G, Wifi, Bluetooth, Digital I/O *SATA HDD Kit, *VESA Mount Kit *Wall mount Kit |
|
| Power | DC input : +9~36V AC input : External adapter 100 / 240V AC-DC 30W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with SSD | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 11 IOT, Windows® 10 IOT Ubuntu 22.04 above, Fedora 36 above |
|
