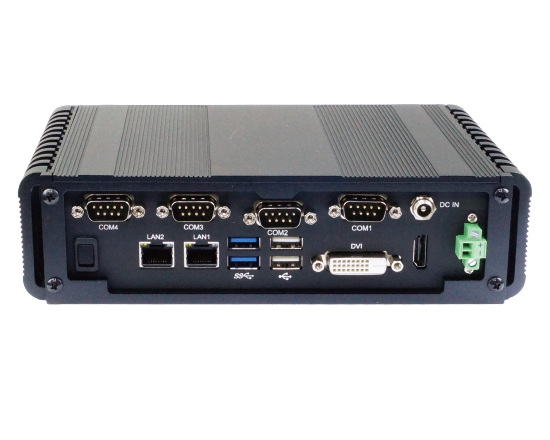

Embedded Box PC
TWITTER 3I640A
Fanless Embedded Computer with
Intel® Atom™ Elkhart Lake 6000 series Processor
Intel® Atom™ Elkhart Lake 6000 series Processor
Features
- Intel® Elkhart Lake ATOM x6413E
/ Celeron J6412 Quad Core CPU - 1 x DDR4 SODIMM, Max. 32GB
- 2 x 2.5GbE, 4 x COM, DVI, HDMI, 4 x USB
- 1 x Mini PCIe, 2 x M.2, 1 x Mini SIM
- DC-IN +12V
| MODEL | TWITTER 3I640A | |
|---|---|---|
| System Dimension(WxDxH) | 210W x 121D x 55H mm | |
| Weight(Incl.M/B) | 1.1 kg | |
| Mounting | VESA Mount / Wall Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel® Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM, Max. 32GB | |
| Storage | M.2, SSD HDD* | |
| Expansion slots | 1 x M.2 B Key Type 3042 (SATA / USB 2.0 / USB 3.0) 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0), support NVMe 1 x Mini PCIe (USB 2.0 / PCIe) 1 x Mini SIM |
|
| I/O ports | Network | 2 x Intel i225 / i226 2.5 GbE |
| USB | 2 x USB 3.0 2 x USB 2.0 |
|
| Serial ports | 2 x RS232 / 422 / 485 2 x RS232 |
|
| Display | 1 x DVI, 1 x HDMI | |
| Optional Modules & Accessor |
4G / 5G, Wifi, Bluetooth, Digital I/O *SATA HDD Kit, *VESA Mount Kit *Wall mount Kit |
|
| Power | DC input : +12V AC input : External adapter 100 / 240V AC-DC 30W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with SSD | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 11 IOT, Windows® 10 IOT Ubuntu 22.04 above, Fedora 36 above |
|
