单板电脑

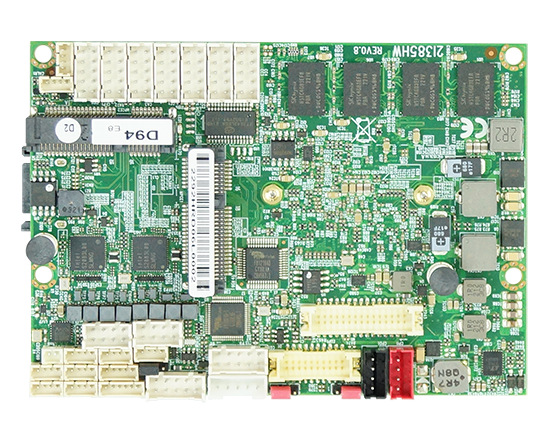

2I385HW
Pico-ITX Embedded SBC 支持 Intel® Bay Trail Atom / Celeron CPU,
VGA, LVDS, eDP, Touch, 2 x Intel Gb Ethernet,
4DI / 4DO, 5 x USB, 4 x COM, 2 x Mini PCIe, SMBus
VGA, LVDS, eDP, Touch, 2 x Intel Gb Ethernet,
4DI / 4DO, 5 x USB, 4 x COM, 2 x Mini PCIe, SMBus
特点
- Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) - On Board DDR3L 1066/1333 MHz 2GB / 4GB
- Multiple Independent display: VGA, eDP & LVDS
- 2 x Intel GbE LAN, 1 x USB 3.0, 4 x USB 2.0
- 4 x COM, 4DI / 4DO, 2 x Mini PCIe, SMBus
| MODEL | 2I385HW |
|---|---|
| CPU | Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core) Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core) Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) |
| MB Chipset | Intel® Bay Trail SoC |
| Graphics | Intel Gen7 graphic engine DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration, decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2 |
| System Memory | On Board DDR3L 1066 / 1333 MHz 2GB / 4GB |
| Storage | 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 1 2 x mini card socket for mSATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, eDP, Dual Channel, 48 bits LVDS |
| Touch | COM touch screen controller |
| LAN | 2 x Intel GbE (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Half size Mini PCIe (mSATA / USB) |
| Expansion Module |
Converter Card : CN066 : Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 1 x USB 3.0 (internal), 4 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
4 x RS232 (internal) optional to RS485 *COM4 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| PS2 KB / MS | PS2 KB / MS |
| Power Input | Wide Range +9~36V |
| Dimension | Pico-ITX 2.5" (102 x 73 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
| Chassis (OEM I/O Expansion by request) | IP66 / 67 waterproof Box PC, IP66 / IP67 / 69K waterproof PPC |
