单板电脑

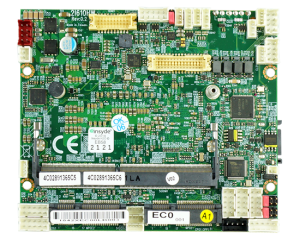

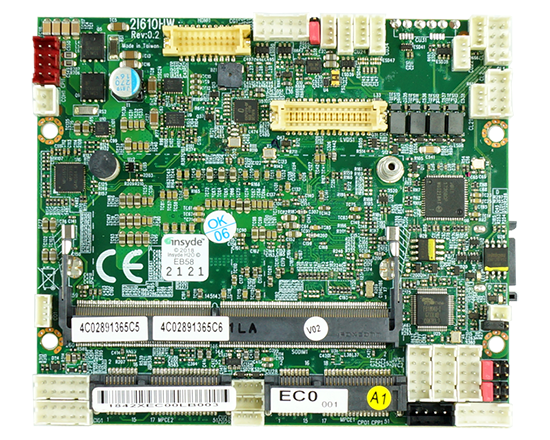

2I610HW
2.5" Plus SBC 支持 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU
VGA, HDMI, LVDS, Touch Screen, 2 x Intel Gb Ethernet,
4DI / 4DO, 6 x USB, 2 x COM, 2 x Mini PCIe, SMBus
VGA, HDMI, LVDS, Touch Screen, 2 x Intel Gb Ethernet,
4DI / 4DO, 6 x USB, 2 x COM, 2 x Mini PCIe, SMBus
特点
- 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: VGA , HDMI & LVDS
- 2 x Intel GbE LAN, 2 x USB 3.0, 4 x USB 2.0, 1 x Micro USB 3.0 (OEM)
- 2 x COM, 4DI / 4DO, Touch Screen, 2 x Mini PCIe, SMBus
| MODEL | 2I610HW |
|---|---|
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | 1 x DDR4 SODIMM socket, Max. 32GB |
| Storage | 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 1 1 x mini card socket for mSATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS |
| Touch | USB touch screen controller |
| LAN | 2 x Intel GbE (internal) |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Full size Mini PCIe (PCIe / USB) |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 2 x USB 3.0 (internal) ; 4 x USB 2.0 (internal) ; 1 x Micro USB 3.0 (OEM) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (102 x 88 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6600U) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | IP66 / I67 Waterproof PC / IP66 / IP67 Waterproof PPC |
