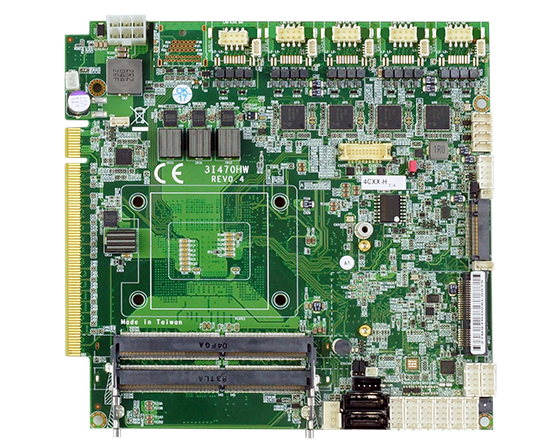

单板电脑

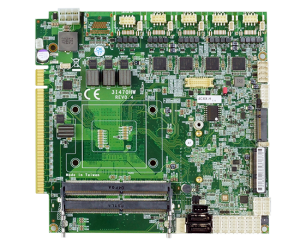

3I470HW

3.5" Plus Embedded SBC 支持 10th Gen Intel® Comet Lake-S
i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU,
Intel® Q470 chipset
eDP, 5 x Intel Gb Ethernet, 8 x USB, 8DI / 8DO
4 x COM, 1 x Mini PCIe, 1 x M.2, 1 x PCIe, 1 x SIM, SMBus

概览

LEX SYSTEM 3I470HW，采用英特尔第十代 Comet Lake-S Core i CPU，配备針腳式 I/O 端口：5 个 GbE、4 个 RS232/RS422/485 串口、8 个 USB、8 个 DI/8 个 DO 和 PCIe/mPCIe/M.2 扩展槽，是具有高度灵活性的扩展功能的理想平台 & 还为用户提供了将 SBC 板集成到诊断测试工具和视频监控、车辆控制设备中的无障碍解决方案通信和工业物联网自动化应用。

特点

10th Gen Intel® Comet Lake-S
i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU
Intel® Q470 chipset
2 x DDR4 SODIMM socket, Max. 64GB
Multiple Independent display: eDP
5 x Intel GbE LAN, 4 x USB 3.1, 4 x USB 2.0
4 x COM, 1 x Mini PCIe, 1 x PCIe, 1 x M.2, 1 x Nano SIM
8DI / 8DO, TPM 2.0, SMBus

3I470HW Datasheet

MODEL	3I470HW
CPU	10th Gen Intel® Comet Lake-S i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU
MB Chipset	Intel® Q470
Graphics	Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5
System Memory	2 x DDR4 2400 MHz SODIMM, Max. 64GB
Storage	2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x mini card socket for mSATA 1 x M.2 B Key, Type 3042 / 3052 (mSATA / PCIe / USB 3.0 / USB 2.0)
BIOS	AMI UEFI BIOS
Display	1 x eDP ; optional to VGA or DVI or HDMI
TPM	TPM 2.0
LAN	1 x Intel GbE I219LM (internal), 4 x Intel 2.5 GbE I225 (internal)
Audio (OEM)	High Definition Audio Specification, Support Line-out / Mic-in / Line-in
Expansion Interface	1 x Full size Mini PCIe (PCIe / mSATA / USB 3.0 / USB 2.0) 1 x M.2 B Key, Type 3042 / 3052 (mSATA / PCIe / USB 3.0 / USB 2.0) (Support NVME) 1 x Nano SIM 1 x PCIe 16x / 8x / 4x / 1x golden finger
Expansion Options	CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA 　 eDP003 : eDP to DVI 　 eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM)
USB	4 x USB 3.1 (external) ; 4 x USB 2.0 (internal)
Serial IO	4 x RS232 / 422 / 485 (internal) (OEM option to 6 x COM w/o DIO) *COM1, COM2 pin9 5V / 12V (Option)
GPIO	Hardware digital Input & Output, 8 x DI / 8 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +12~36V
Dimension	161.51 x 155 mm (Memory at Horizontal DIMM Socket) 150 x 155 mm (Memory at Vertical DIMM Socket)
Operation Temperature (100 % CPU Usage)	-20°C~70°C (Core i7 10700T)
Operation Humidity	5~95%, non-condensing
OS Support	Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above
