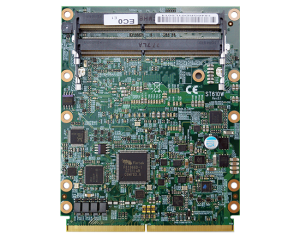

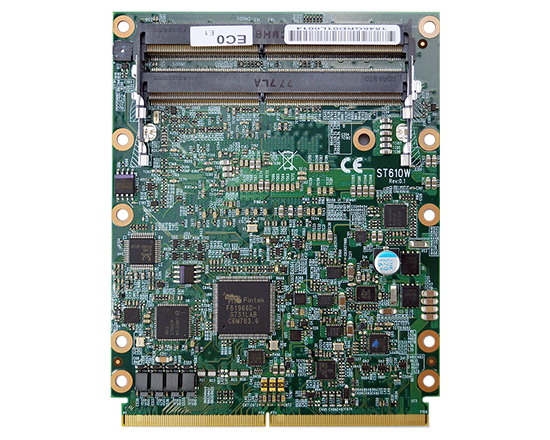

ST610W
SMART Computer on Module 支持,
6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU,
VGA, HDMI, LVDS, Touch, 2 x Intel Gb Ethernet,
7 x USB, 4 x COM, 8DI / 8DO, 4 x PCIe
6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU,
VGA, HDMI, LVDS, Touch, 2 x Intel Gb Ethernet,
7 x USB, 4 x COM, 8DI / 8DO, 4 x PCIe
特点
- 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
- 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: VGA, HDMI & LVDS
- 2 x Intel GbE LAN, 2 x USB 3.0, 5 x USB 2.0, 8DI / 8DO
- 4 x COM, 4 x PCIe
| MODEL | ST610W |
|---|---|
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS |
| Touch | USB touch screen controller |
| LAN | 2 x Intel GbE (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 4 x PCIe 1x |
| Expansion Module | ST001: 4 x COM, 2 x GbE, VGA, HDMI, LVDS, 4 x USB, 7 x PCIe mini card, 3 x SIM socket, Audio |
| USB | 2 x USB 3.0 (internal), 5 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 88 x 110 mm |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6600U) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), |
