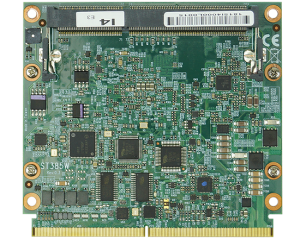

ST385W
SMART Computer on Module 支持 Intel® Bay Trail Atom / Celeron CPU,
VGA, HDMI or LVDS, Touch, 2 x Intel Gb Ethernet,
8 x USB, 4 x COM, 8DI / 8DO, 2 x PCIe
VGA, HDMI or LVDS, Touch, 2 x Intel Gb Ethernet,
8 x USB, 4 x COM, 8DI / 8DO, 2 x PCIe
特点
- Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) - 1 x DDR3L SODIMM, Max. 8GB
- Multiple Independent display: VGA, HDMI & LVDS
- 2 x Intel GbE LAN, 1 x USB 3.0, 7 x USB 2.0, 8DI / 8DO
- 4 x COM, 2 x PCIe
| MODEL | ST385W |
|---|---|
| CPU | Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core) Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core) Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) |
| MB Chipset | Intel® Bay Trail SoC |
| Graphics | Intel Gen7 graphic engine DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration, decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2 |
| System Memory | 1 x DDR3L 1066 / 1333 MHz SODIMM, Max. 8GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI or LVDS |
| Touch | COM touch screen controller |
| LAN | 2 x Intel GbE (internal) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 2 x PCIe 1x |
| Expansion Module | ST001: 4 x COM, 2 x GbE, VGA, HDMI, LVDS, 4 x USB, 7 x PCIe mini card, 3 x SIM socket, Audio |
| USB | 1 x USB 3.0 (internal), 7 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 88 x 80 mm |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
