单板电脑

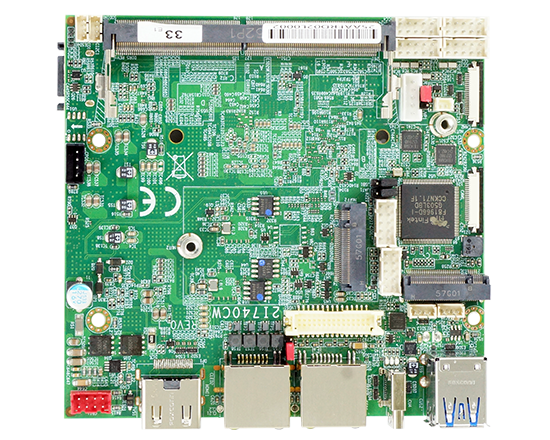

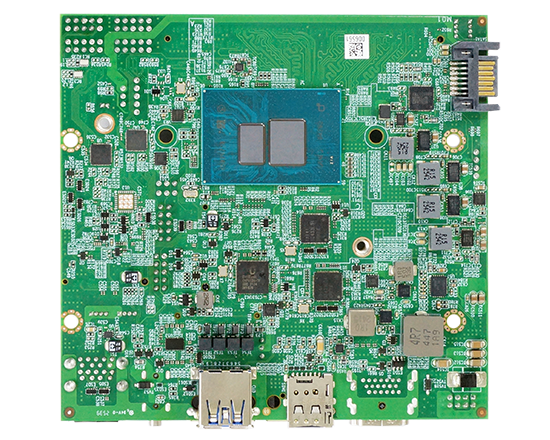

2I740CW

2.5" SBC 支持 Intel® Amston Lake ATOM® x7000 series CPU

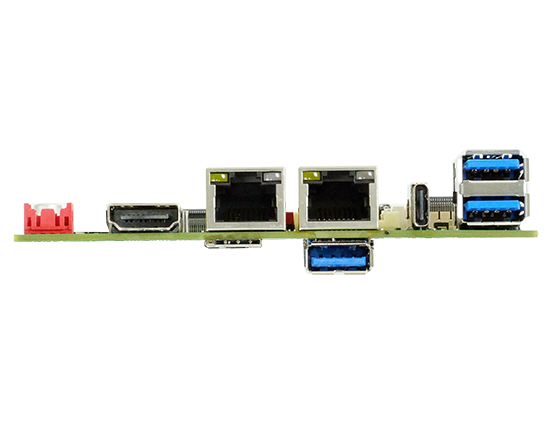

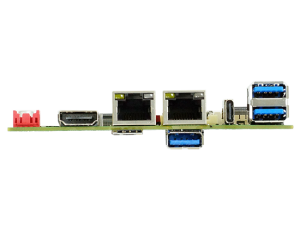

1 x HDMI® ; 1 x USB 3.2 Type C DP ALT ; 1 x LVDS, 2 x Intel 2.5Gb Ethernet,
6 x USB, 4 x COM, 2 x M.2, 1 x Nano SIM, 2 x MIPI-CSI, DI/O

概览

LEX System 超小型单板计算机 (108 x 102mm) – 2I740CW 采用 Intel® Atom™ x7000（原 Amston Lake）系列处理器。2I740CW 集成 2 个 2.5GbE LAN 端口、6 个 USB 端口、4 个 COM 端口、HDMI®、LVDS、1 个支持 DP Alt 模式的 USB 3.2 Type-C、2 个 MIPI-CSI 摄像头接口，以及 2 个 M.2 ，1个 Nano SIM扩展槽，是高性能图形处理、内置物联网功能、实时计算、可管理性和安全性的理想平台。

凭借低功耗设计、多个 2.5GbE 以太网端口以及宽电压 9–36V DC 输入范围，2I740CW 是基于 OpenVINO 的 AI 加速平台和先进边缘 AI 应用的优秀解决方案，包括智能控制、工厂自动化（工业 4.0）、物联网（IoT）及边缘计算等应用。

特点

Intel® Amston Lake ATOM® x7000 series CPU
1 x DDR5 SODIMM, Max. 16GB
Independent display: 1 x HDMI® ;
1 x USB 3.2 Type C DP ALT ; 1 x LVDS
2 x Intel 2.5 GbE LAN, 3 x USB 3.2 (Type A),
1 x USB 3.2 (Type C) 2 x USB 2.0
4 x COM, 2 x M.2, 1 x Nano SIM, 2 x MIPI-CSI
TPM 2.0, 4DI/4DO

2I740CW Datasheet

MODEL	2I740CW
CPU	Intel® Amston Lake ATOM® x7000 series CPU
MB Chipset	Intel® Amston Lake SoC
Graphics	Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.6
System Memory	1 x DDR5 SODIMM, Max. 16GB
Storage	1 x M.2 B Key Type 3042 / 2242 SATA-SSD 1 x M.2 B Key Type 2242 PCIe-SSD 1 x SATA
BIOS	Insyde UEFI 64BIOS
Display	1 x HDMI® ; 1 x USB 3.2 Type C DP ALT ; 1 x LVDS
TPM	Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0
LAN	2 x Intel 2.5 GbE I226 (external)
Expansion Interface	1 x M.2 B Key Type2242/3042 (SATA / USB 3.2 / USB 2.0) 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x Nano SIM
Expansion Module	CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic-in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V)
USB	3 x USB 3.2 Gen 1 (Type A / external) ; 2 x USB 2.0 (internal) 1 x USB 3.2 Type C (Type C / external)
Serial IO	4 x RS232 / 422 / 485 (internal) *COM1~COM4 Pin9 5V/12V (option)
Camera Interface	2 x MIPI-CSI (internal)
SMBus / I2C	1 x SMBus, 1 x I2C
GPIO	Hardware digital Input & Output, 4 x DI / 4 x DO
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +9~36V
Dimension	2.5" Plus (108W x 102D mm) ; Weight: 100g
Operation Temperature	-20°C~70°C (100 % CPU Usage)
Operation Humidity	5~95%, non-condensing
Chassis (OEM I/O Expansion by request)	Box PC: NET-II, Panel PC
OS Support	Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above
