SKY 2 - 2I110AW + Hailo-8™
Computing Vision IPC w /
11th Gen Intel® Core i Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator
11th Gen Intel® Core i Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator
概览

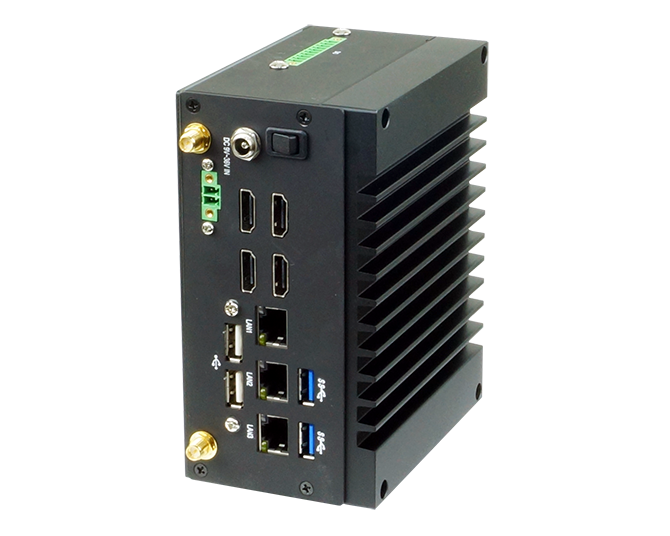

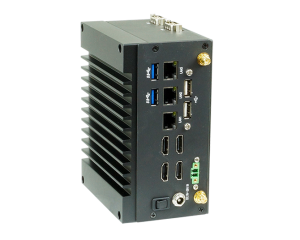

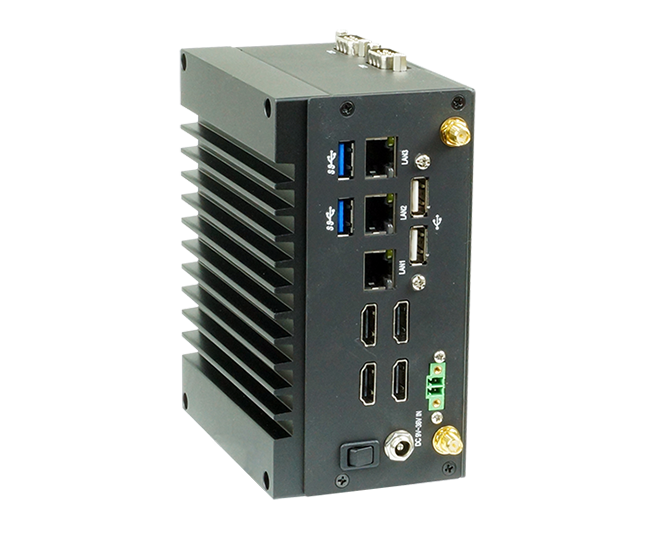

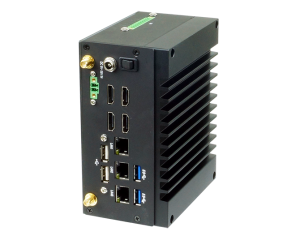

SKY 2 2I110AW 是一款紧凑型无风扇 DIN 导轨计算机，尺寸仅为 71.9 x 111.2 x 141 毫米。它采用第 11 代英特尔® Tiger Lake-UP3 i7/i5/i3/Celeron 处理器，旨在提供强大的边缘 AI 解决方案。
SKY 2 2I110AW 配备多个 I/O，例如 4 x HDMI、3 x 2.5 Gb 以太网端口、2 x USB 3.2 端口、2 x USB 2.0 端口和 2 x COM 端口以及用于工业通信的可选隔离数字 I/O和控制。

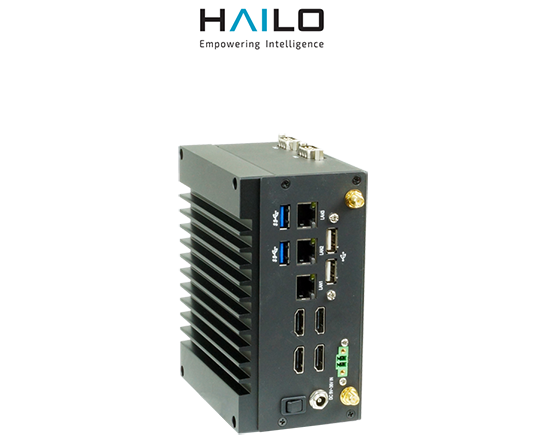

此外，通过采用M.2插槽，SKY 2 2I110AW可以轻松安装Hailo-8™ AI加速模块以用于AI应用。 Hailo-8™边缘AI模块通过最大限度地发挥边缘AI的功能并帮助客户加快上市时间，提供与LEX SKY 2 2I110AW系统的高度兼容性。 SKY 2 2I110AW 与 Hailo-8™ 模块的配对使开发人员能够以低功耗运行复杂的深度学习和机器视觉应用程序。
特点
- 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM socket, Max. 32GB
- Independent display: 4 x HDMI
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.2, 2 x USB 2.0
- 2 x COM, 2 x M.2, DI/DO, SMBus
| MODEL | SKY 2 - 2I110AW + Hailo-8™ | |
|---|---|---|
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.46 kg | |
| Mounting | VESA Mount* (VESA 75), DIN-Rail Mount*, Wall Mount* | |
| CPU | 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU | |
| Chipset | Intel Tiger Lake-UP3 SoC | |
| AI Accelerator | Pre-installed M.2 Hailo-8™ AI Accelerator | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD*, SATA* | |
| Expansion slots | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA) Support NVMe |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 |
| USB | 2 x USB 3.2 ; 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 4 x HDMI | |
| DI/DO | 4DI / 4DO (optional to 2.5” SATA Kit) | |
| Optional Modules & Accessory |
Converter card CN064 for Wifi 6 Module Converter card CN067 for 4G / 5G Module *VESA Mounting Kit, DIN Rail Mounting Kit, *Wall Mount Kit *SATA Kit (optional to DI/DO) |
|
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (Core i7 1185GRE) | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
|
