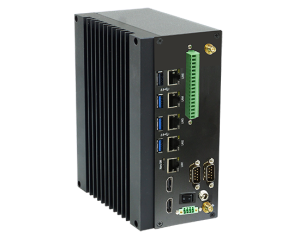

SKY 3 - 3I130DW
Fanless Embedded Computer
with 13th Gen Intel® Raptor Lake-P/U
& 12th Intel® Alder Lake-P/U Processor
with 13th Gen Intel® Raptor Lake-P/U
& 12th Intel® Alder Lake-P/U Processor
概览
SKY 3 3I130DW 是一款无风扇 DIN 导轨计算机，尺寸仅为 183W x 142.2D x 83.9H mm。它配备第 13 代英特尔® Raptor Lake-P/U 和第 12 个英特尔® Alder Lake-P/U i7/i5/i3/Celeron 处理器，专为提供高性能边缘人工智能解决方案而设计。 SKY 3 3I130DW 配备多个 I/O：2 个 HDMI、5 个 2.5 Gb 以太网端口、3 个 USB 3.2 端口、1 个 USB 2.0 端口和 2 个 COM 端口以及用于工业通信和控制的可选隔离数字 I/O 。此外，通过采用M.2插槽，SKY 3 3I130DW可以充分利用WiFi 6、4G/5G无线通信的带宽，为AIoT和边缘网关应用提供广域覆盖和实时数据传输。
高性能和坚固耐用的机械设计的属性也使SKY 3 3I130DW成为在恶劣环境下需要先进计算的视觉检测、视频分析、智能交通、智能工厂、智能医疗应用项目的理想边缘AI解决方案。。
特点
- Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U,
i7 / i5 / i3, Pentium CPU - Intel® 12th Gen Alder Lake-P / Alder Lake-U,
i7 / i5 / i3, Celeron CPU - 2 x DDR5 SODIMM (Max. 64GB)
- Multiple Independent display: 2 x HDMI®
- 5 x Intel 2.5 GbE LAN, 3 x USB 3.2, 1 x USB 2.0
- 1 x Mini PCIe, 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
| MODEL | SKY 3 3I130DW | |
|---|---|---|
| System Dimension(WxDxH) | 183W x 142.2D x 83.9H mm | |
| Weight(Incl.M/B) | 2.8 kg | |
| Mounting | DIN-Rail Mount*, System Mount* | |
| CPU | 13th Gen Raptor Lake-P/ Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-P / Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-P/U ; Alder Lake-P/U SoC | |
| Memory | 2 x DDR5 SODIMM socket, Max. 64GB | |
| Storage | M.2, HDD / SSD* | |
| Expansion slots | 1 x Full Size Mini PCIe (PCIe / USB 2.0) 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 / 3052 (SATA / USB 3.2 Gen 1 x 1 / USB 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 1 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI® | |
| GPIO | 4 x DI / 4 x DO (option) | |
| Optional Modules & Accessory |
*SATA Kit *VESA Mounting Kit *System Mounting Kit *4G / 5G, WiFi , BT, Module, Digital I/O, 2 / 4 PoE |
|
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C~55°C (under specific environmental & CPU power consumption conditions.) |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
