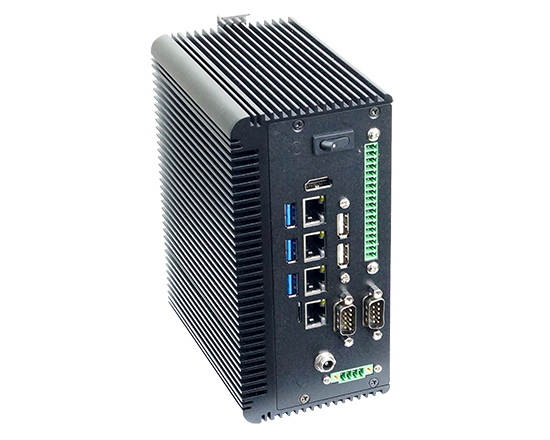

ROCK - 2I130DW
Fanless Embedded Computer with
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
概览

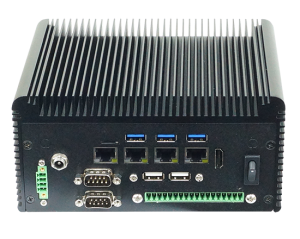

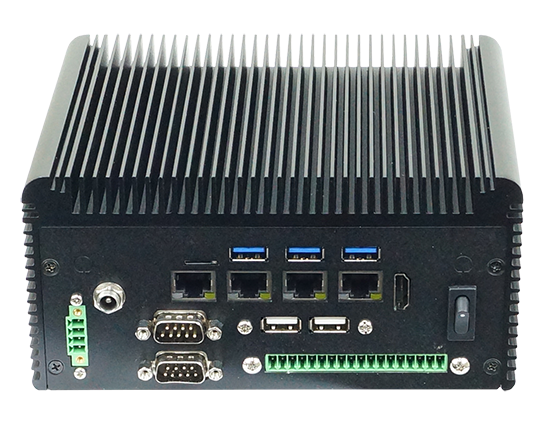

ROCK 2I130DW 是一款小型无风扇 DIN 导轨/桌上型计算机，尺寸为 173W x 130D x 85H mm。它配备第 13 代英特尔® Raptor Lake-U 和第 12 代英特尔® Alder Lake-U i7/i5/i3/Celeron 处理器，专为提供高效能边缘人工智慧解决方案而设计。 ROCK 2I130DW 配备多个I/O：1 个HDMI、4 个2.5 Gb 乙太网路连接埠、3 个USB 3.2 连接埠、2 个USB 2.0 连接埠和2 个COM 连接埠以及用于工业通讯和控制的可选隔离数位I /O。此外，透过采用M.2插槽，ROCK 2I130DW可以充分利用WiFi 6、4G/5G无线通讯的频宽，为AIoT和边缘闸道应用提供广域覆盖和即时资料传输。
高性能与坚固耐用的机械设计的属性也使 ROCK 2I130DW 成为在恶劣环境下需要高级运算的视觉检测、视讯分析、智慧交通、智慧工厂、智慧医疗应用专案的理想边缘 AI 解决方案。
特点
- Intel® 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
Intel® 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU - 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: 1 x HDMI®
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
- Lab-tested and qualified by Intel® Edge Controls for Industrial (Intel® ECI) &
Time-Sensitive Networking (TSN)
| MODEL | ROCK - 2I130DW | |
|---|---|---|
| Motherboard | 2I130DW | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.2 kg | |
| Mounting | DIN-Rail Mount* System Mount* VESA Mounting* | |
| CPU | 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-U ; Alder Lake-U SoC | |
| Memory | 1 x DDR5 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| DIO | 4 x DI / 4 x DO (Option) | |
| Optional Modules & Accessory |
*SATA Kit *DIN Rail Mounting Kit *System Mounting Kit *VESA Mounting Kit *4G / 5G, WiFi, BT, Module, Digital I/O, 2 / 4 PoE |
|
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
