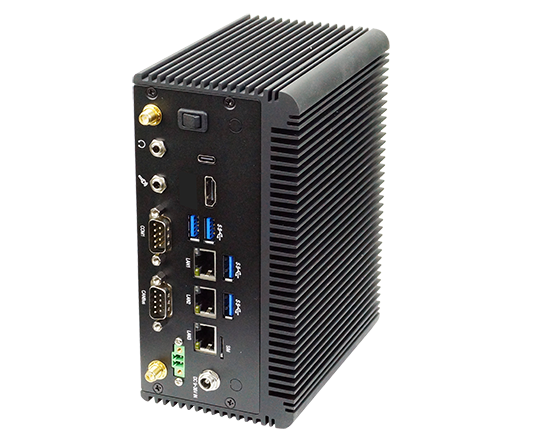

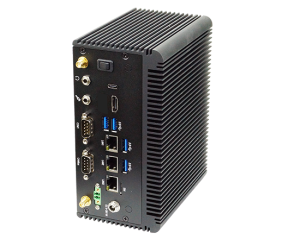

ROCK 2NOR01
Fanless AI Box:
NVIDIA® Jetson Orin™ Nano (Super) / NX SoM + 2NOR01
NVIDIA® Jetson Orin™ Nano (Super) / NX SoM + 2NOR01
概览
ROCK 2NOR01 是无风扇 DIN-Rail 导轨系统，尺寸为 173W x 130D x 85H mm。它利用 NVIDIA Jetson Orin NX / Nano 模组提供边缘 40 至 100 (TOPS) 的 AI 性能，特别适合 AI 视讯运算密集型应用。
ROCK 2NOR01 支援的I/O 包括3 x LAN、1 x HDMI®、1 x Nano SIM、4 x USB 3.1、1 x Type C USB 3.1/2.0(OTG)、3 x M.2、2 x COM、1 x CANBus (可选)和音频等用于实施AI视讯解决方案，可满足各种应用的要求。
特点
- CPU Board:
NVIDIA Jetson Nano (Super): 4 / 8GB LPDDR5, 20 / 40 TOPs
NVIDIA Jetson NX: 8 / 16GB LPDDR5, 70 / 100 TOPs - AI Accelerator: NVIDIA® Jetson Orin™ Nano (Super) / Orin™ NX
- 1 x HDMI®
- 2 x 2.5GbE, 1 x GbE
- 4 x USB 3.1
- 1 x Type C USB 3.1 / 2.0 (OTG)
- Mic-in / Line-out
- 2 x RS232 (Option RS422)
- 1 x CANBus (Option)
- 1 x M.2 M key
- 2 x M.2 B key
- 1 x Nano SIM
- 4DI / 4DO (Option)
- Internal wafer: SPI, I²S, I²C, USB 2.0
| MODEL | ROCK 2NOR01 | |
|---|---|---|
| Motherboard | NVIDIA Jetson Orin SOM + 2NOR01 | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.6 kg | |
| Mounting | DIN Rail Mount*, VESA Mount*, Wall Mount* | |
| M.2 | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 1/ USB 2.0) ; WiFi / Bluetooth or PCIe 1 x M.2 B key Type 3042 (USB 3.1 / 2.0) ; 4G / 5G, GPS or USB Device |
|
| I/O ports | Network | 2 x Intel 2.5GbE I226IT ; 1 x GbE |
| USB | 4 x USB 3.1 (external) ; 1 x USB 3.1 / 2.0 (Type C, OTG) |
|
| Serial ports | 2 x RS232 (Option RS422) | |
| CANBus | 1 x CANBus (Option) | |
| Display | 1 x HDMI® | |
| SIM Card | 1 x Nano SIM | |
| DIO | 4DI / 4DO (Option) | |
| Audio | Mic-in / Line-out | |
| Internal I/O wafer | SPI, I²S, I²C, USB 2.0 | |
| Optional Modules & Accessory |
M.2 Module: 4G, 5G, PCIe, WiFi, GPS, Bluetooth, NVMe DIN Rail Mounting Kit, VESA Mounting Kit, Wall Mounting Kit |
|
| Power | DC input : Wide Range +9~36V Ignition Option : ignition by module |
|
| Operating Temp. (100 % CPU usage) |
-25°C to +60°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
