嵌入式电脑系统
HAWK - 3I140DW
Fanless Embedded Computer with
Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
概览

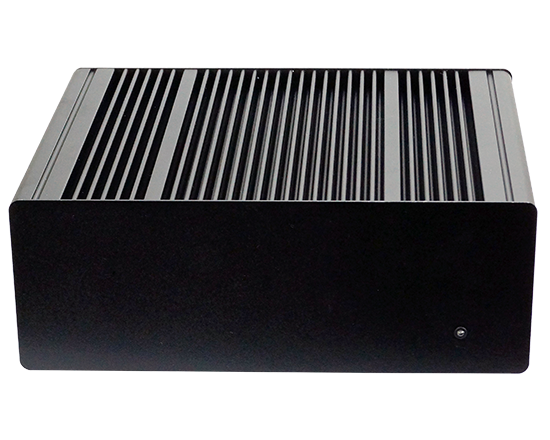

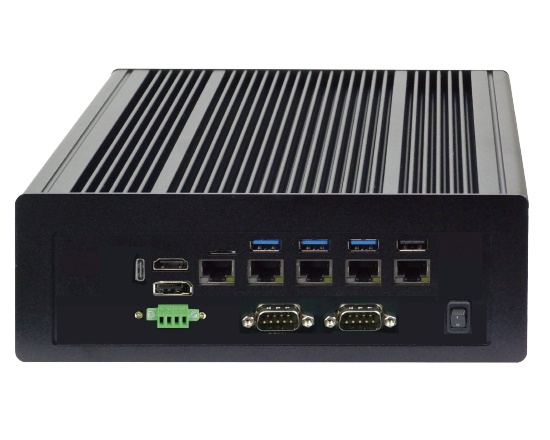

HAWK 3I140DW 是一款无风扇嵌入式计算机，尺寸为 212.0 毫米（宽）x 172.6 毫米（深）x 80 毫米（高）。它搭载Intel® Core™ Ultra 7/5 系列处理器（Meteor Lake-U/H 和 Arrow Lake-U/H），配备两个 DDR5 SO-DIMM 插槽，最高支持 64GB 内存，并提供多种显示接口，包括 HDMI®、DP 和 Type C DP ALT。HAWK 3I140DW 专为提供高性能边缘 AI 解决方案而设计，配备丰富的 I/O 接口，包括 5 个 2.5Gb 以太网端口、3 个 USB 3.2 端口、1 个 USB 2.0 端口、2 个 COM 端口以及 1 个用于工业通信和控制的 PCIe 插槽。
此外，该系统还配备支持 Wi-Fi 6 和 4G/5G 模块的 M.2 插槽，可为 AIoT 和边缘网关应用提供广域覆盖和实时数据传输。
特点
- Intel® Core™ Ultra 7/5 processors
(Meteor Lake-U/H) (Arrow Lake-U/H) - 2 x DDR5 SODIMM (Max. 64GB)
- Multiple Independent display:
1 x HDMI®, 1 x DP, 1 x Type C DP ALT - 5 x Intel 2.5 GbE LAN, 3 x USB 3.2 Gen 1x1, 1 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM, 1 x PCIe (OEM)
- 2 x COM
- TPM 2.0, SMBus, I2C, I2S
- Wide Range DC-IN
| MODEL | HAWK-3I140DW | |
|---|---|---|
| System Dimension(WxDxH) | 220W x 172.6D x 80H mm | |
| Weight(Incl.M/B) | 3.6 kg | |
| Mounting | *System Mount, *VESA Mount | |
| CPU | Intel® Core™ Ultra 7/5 Series processors | |
| Chipset | Meteor Lake-U/H ; Arrow Lake-U/H | |
| Memory | 2 x DDR5 SODIMM, Max 64GB | |
| Storage | M.2-SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (USB 3.2 Gen 1x1 / USB 2.0) 1 x M.2 B key Type 3042 (PCIe / USB 2.0) 1 x Nano SIM 1 x PCIe x 1 golden finger with U Series CPU (OEM) or 1 x PCIe x 8 golden finger with H Series CPU (OEM) |
|
| I/O ports | Network | 5 x Intel 2.5GbE I226-IT (external) |
| USB | 3 x USB 3.2 Gen 1x1 (external), 1 x Type C USB 3.2 1 x USB 2.0 |
|
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® ; 1 x DP ; 1 x Type C DP ALT | |
| Optional Modules & Accessory |
*VESA Mounting Kit *System Mounting Kit |
|
| Power | DC input : Wide Range DC IN +9~36V |
|
| Operating Temp. (100 % CPU usage) |
-20°C~70°C (under specific environmental & CPU power consumption conditions.) | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
