功能转换板

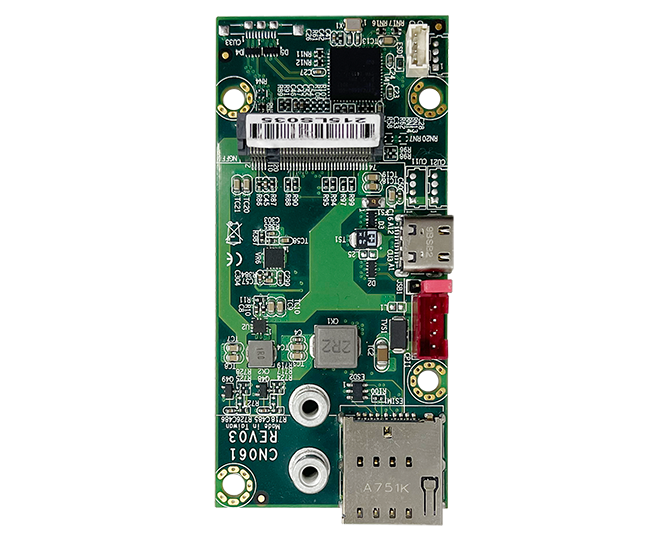

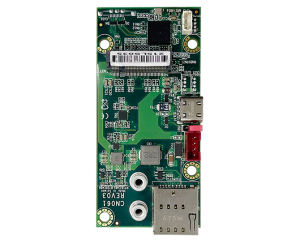

CN061
USB to 2 x M.2 B-key 3042 or 3052
+ 2 x SIM Slot Converter board
+ 2 x SIM Slot Converter board
特点
- Two M.2 B-key 3042 or 3052 size Socket
- Two Micro SIM PUSH-PUSH
- DC 12V to 3.3V or 3.7V
Introduction:
CN061 is a USB 3.0 Signal extension board. It 支持 up to 2 x M.2 B key 3042 or 3052 Slots.
The board communicates to the host PC via USB cables and powered from Motherboard CPO1 wafer.
CN061 also 支持 3G/4G micro SIM slot (push-push)
Option:
- 1 x 1.25mm 1x5pin & 1 x 1.25mm 1x4pin for USB 3.0 / 2.0 extension.
Cable information:
- 6G6002-8026-0100 (option)
6G6003-7452-0100 L=15cm, 2.0 1*4 / 2.0 1*4
| MODEL | CN061 |
|---|---|
| Function | 2 ports M.2 B-key 3042 or 3052 extension board |
| Interface | USB 3.0 / 2.0 |
| SIM | 2 Micro SIM Card (Push-Push) |
| USB Connector | 1.25mm 1x4pin, 1.25mm 1x5pin |
| DC in Connector | 2.0mm 1x4pin |
| Input Voltage | DC 12V |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 77.5 x 37 mm |
