ディスプレイ＆オーディオボード

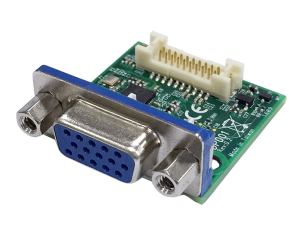

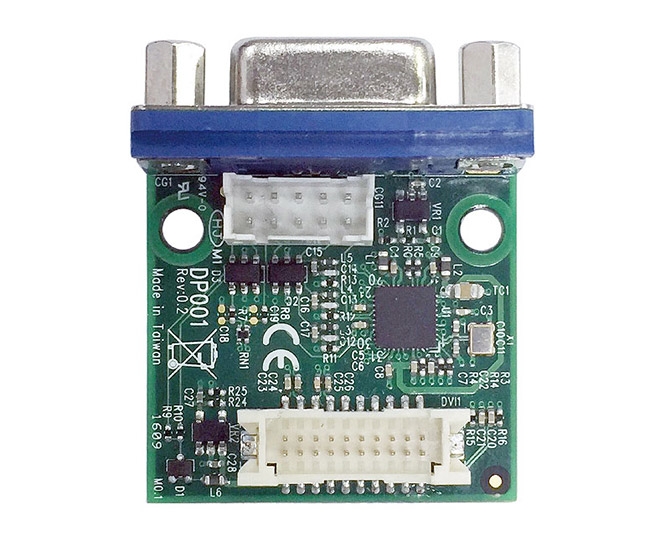

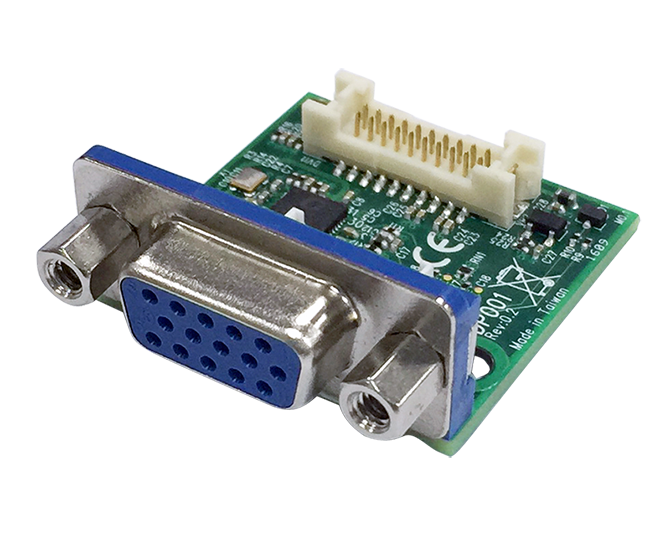

DP001
Display interface convert board: converts eDP signal to VGA connector
特色
Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP) specification version 1.3.
Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate.
Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate. Sync signals can be provided in separated or composite manner. Support VESA and CEA tim
| MODEL | DP001 |
|---|---|
| Type | eDP to VGA board |
| Input | 24 pin eDP signal |
| Output port | VGA D-Sub |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 30 x 31 mm |
