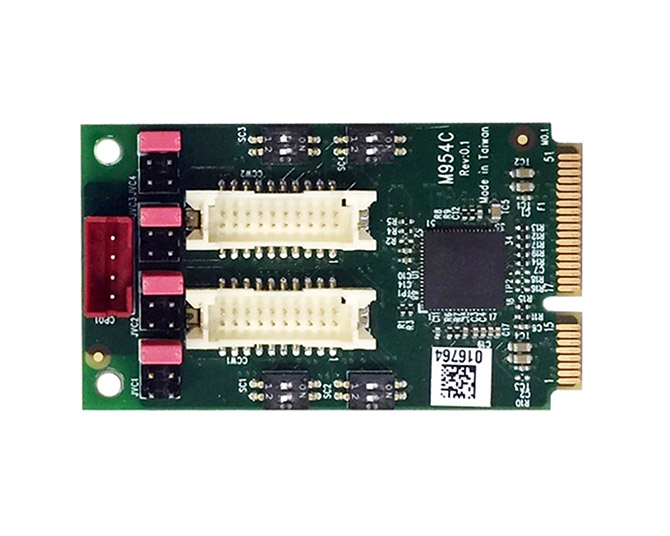

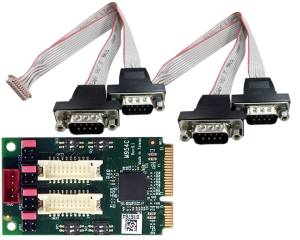

M954C

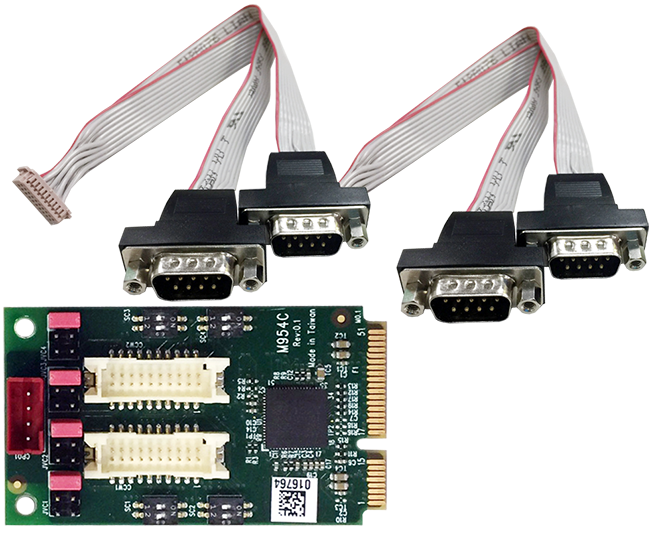

Mini PCIe to 4 Port RS232 / RS485 / RS422 module
特色
- Compliant with PCI Express 2.0 Gen 1
- Quad UARTs Supports RS-232 / RS-422 / RS-485 multiprotocol
- Bi-directional speeds up to 25 Mbps per port
- Full Serial Modem Control
- Supports Hardware, Software Flow Control
- Supports 5, 6, 7, 8 and 9-bit Serial format
- Supports Even, Odd, None, Space and Mark parity
- Supports On Chip 256 Byte depth FIFOs in Transmit,
Receive path of each Serial Port - Serial Port transceiver shutdown support
- Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
- Supports multi-drop application for 9-bit mode
- Supports DMA burst transfer
- Robust ESD Protection: ±15kV ESD Protection
(IEC 61000-4-2 Air Gap ; ±8kV contact)
| MODEL | M954C |
|---|---|
| Type | Mini PCIe to 4 RS232 / RS485 / RS422 |
| Input | Mini PCIe |
| Output | 2*2 x10 pin wafer connector |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 50.95 x 30 mm |
