| LEX launches Femto –ITX |
| measuring at 55 x 84 mm, only 62% of Pico-ITX form factor, 32% of 3.5" form factor motherboard ; with low power consumption and high performance. The benefits of low-power consumption
(DC-IN +5V) and compact size make these platforms well suited for many space –limited and thermally constrained market applications, such as healthcare, logistics, fleet management and mobile security. |
|
| |
1I385A Spec: |
| 1. Intel® Bay Trail-I E3825 1.33GHz (Dual core) CPU |

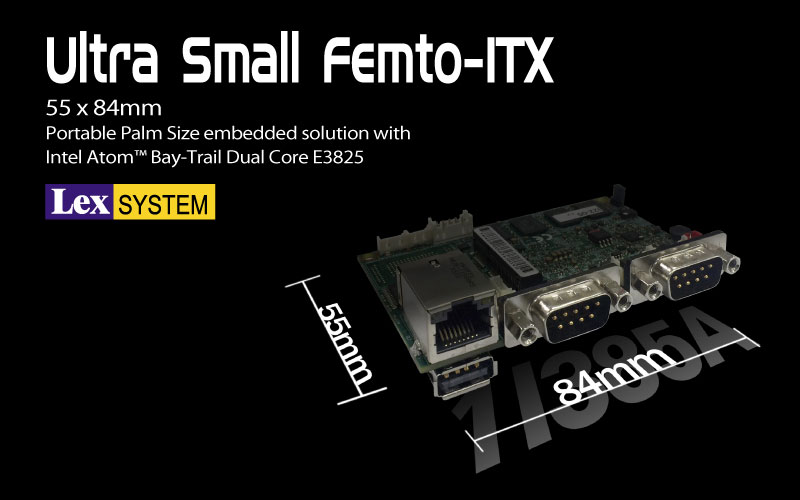

| 2. MB size: Femto-ITX (1.8”) 55 x 84 mm |
| 3. Memory: DDR3L 2G Onboard (OEM 4GB) |
| 4. Storage: on board flash SSD up to 64GB or mSATA |

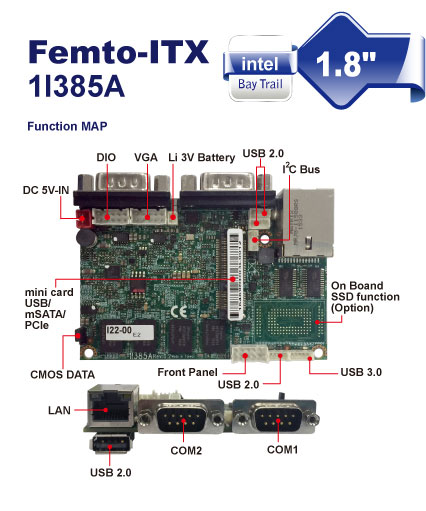

| 5. Features: |
1 x Intel i210 GbE, 1 x USB 2.0, 2 x COM, 1 x Mini PCIe, |
| |
VGA (wafer), 2 x USB2.0(wafer), 1 x USB3.0(wafer) |
| 6. Power: DC-IN 5V |
| 7. Operation Temperature: -40°C ~ 70°C |
 |
|
|
| |
|
|
