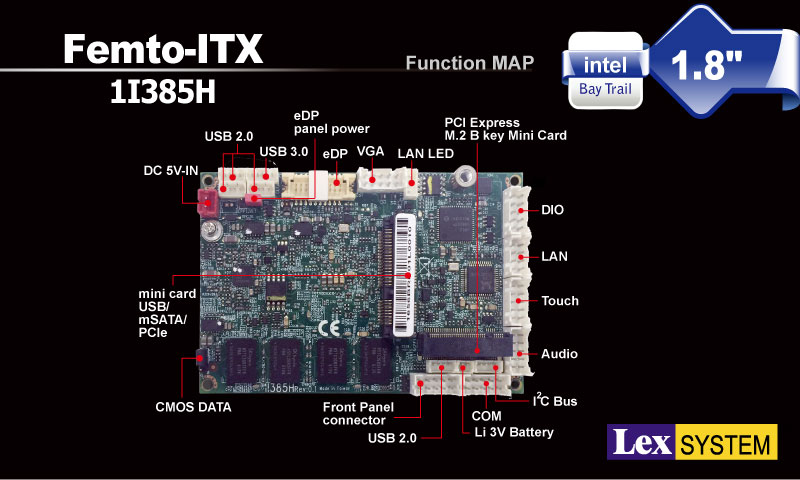

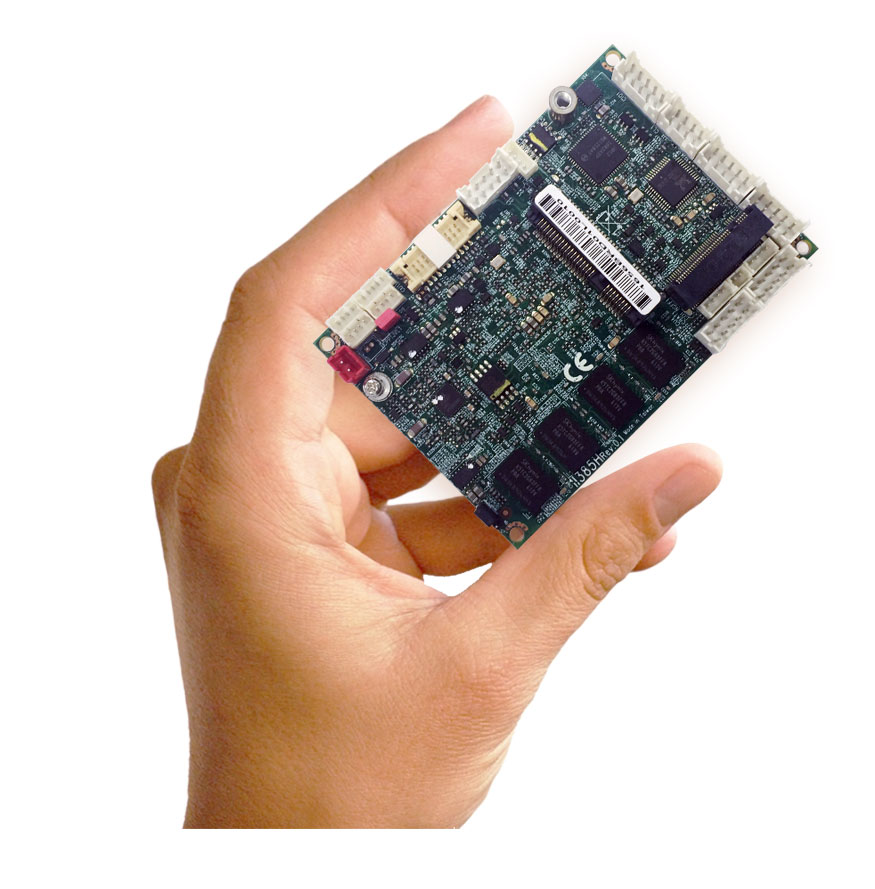

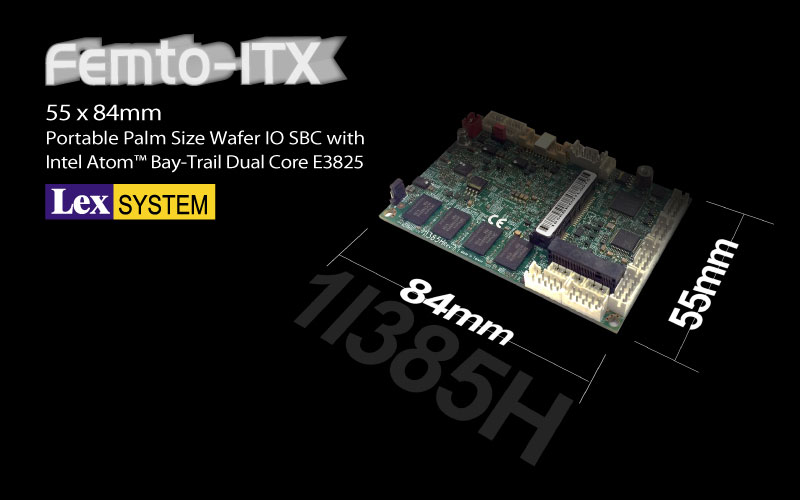

Femto-ITX size 55 x 84 mm LEX 1I385H comes with ultra small Femto-ITX (1.8”) size 55 x 84 mm ideally combines the processor advantages at the smallest footprint board. 1I385H provides the idea solution for maximizing computer performance at many space-limited and thermally constrained embedded applications. This platform with all wafer IO design delivers high flexibility toward expanded functions and also provides user hassle-free solution of integrating the SBC board at various mechanical chassis.   1I385H Spec: 1. Intel® Bay Trail-I E3825 1.33GHz (Dual core) CPU 2. MB size: Femto-ITX (1.8”) 55 x 84 mm 3. Memory: DDR3L 2G Onboard (OEM 4GB) 4. Storage: mSATA / M.2 B Key (SATA base SSD) 5. Features (wafer IO): 1 x Intel i210 GbE, 1 x USB 2.0 / 1 x Mini PCIe, 1 x VGA, 1 x COM, 3 x USB2.0, 1 xUSB3.0, eDP, Touch Screen, DIO, Audio, M.2 B Key Mini Card (SATA SSD) 6. Power: DC-IN 5V 7. Operation Temperature: -40°C ~ 70°C     Extension Modules   PC surveillance with maximizing performance ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • CN048 Mini PCIe extension Board supports M.2 SATA, GPS or WiFi & 2 x USB Specification: 1 x Mini PCIe Slot to 1~2 X Mini PCIe Slot + 1 x M.2 SATA Slot + 2 x USB Dimensions: 50.95x 30 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • CN047 Mini PCIe Extension Board supports 3G/4G, GPS and WiFi Module Specification: 1 x Mini PCIe Slot to 4 X Mini PCIe Slot & 2 Micro SIM Card Socket MPCE1 supports mSATA/PCIe/USB interface MPCE2,3,4 supports USB interface Dimensions: 61.15 x 31 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • M212A Mini PCIe Extension Board supports 2 x Giga bit/s LAN Specification: LAN Extension Card Support 1~2 Giga bit/s Intel I210IT LAN Full Duplex Flow Control Dimensions: 50.95x 30 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • M954A Mini PCIe Extension Board supports 4 x COM Specification: 4 x Serial Port Extension Card M954A-232 Mini PCIe to 4 x RS232 Dimensions: 50.95x 30 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • CIO108 Digital I/O card Specification: Support 8 ports Digital Input, Support 8 ports Digital Output or 4DI+4DO Optocoupler for Digital Input Isolation board Power Relay or State Relay (SSR) or Optocoupler for Digital Output Isolation Dimensions: 72x 35 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • M858A 8CH Video Capture card Specification: 8CH D1 Video in & 8CH Audio in CONEXANT CX25858 chip 10-bit NTSC/PAL Video Decoders Dimensions: 30 x 50.95 mm ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- • SDI 1CH HD-SDI Video Capture Card Specification: SDI-1CH HD-SDI Video Capture Card 1 x SDI Video Input Max. 1920 x 1080p @30/25/24 fps Dimensions: 30 x 50.95 mm
