| Super Compact (55 x 90 mm)
Wafer IO SBC with Intel Bay-Trail
Dual Core CPU |
| |

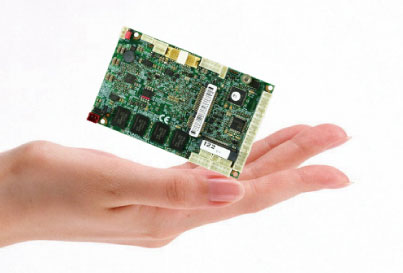

| LEX 1I386H comes with ultra small Femto-ITX (1.8") size 55
x 90 mm ideally combines the processor advantages at the
smallest footprint board. 1I386H provides ideal solution for
maximizing computer performance at many space-limited
and thermally constrained embedded applications. This platform
with all wafer IO design delivers high flexibility toward
expanded functions and also provides user hassle-free solution
of integrating embedded systems. |
|
|
|
| • |
Intel® Bay Trail-I E3825 1.33GHz (Dual core)CPU /
E3845 Quad core CPU (OEM) |
| • |
MB size: Femto-ITX (1.8") 55 x 90 mm |
| • |
Memory: DDR3L 2GB Onboard /
4GB (OEM for E3845 CPU) |
| • |
Storage: mSATA / M.2 B Key for SSD |
| • |

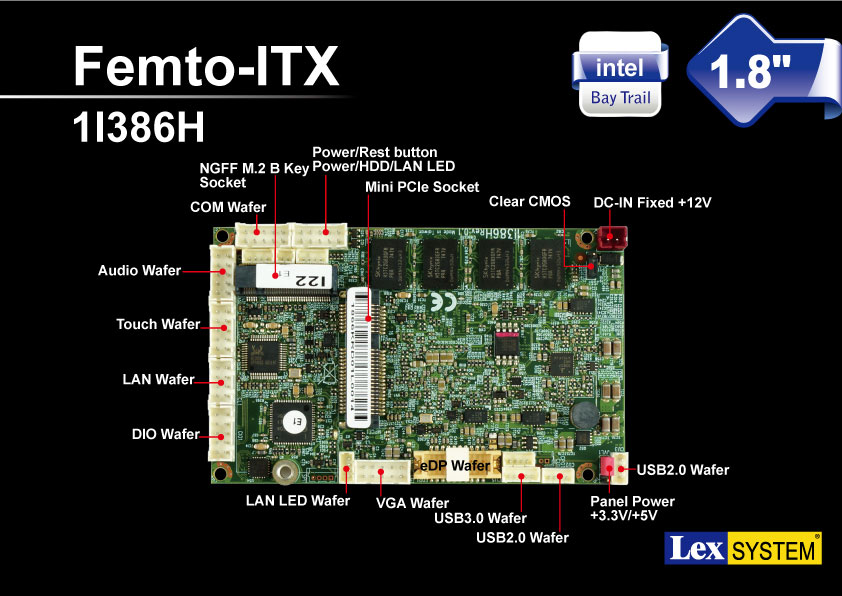

Features (wafer IO): VGA, 1 x Intel GbE, 1 x USB 3.0,
2 x USB 2.0, 1 x COM, eDP, Touch Screen,
DIO, Audio, 1 x M.2 B Key (SSD), 1 x Mini PCIe |
| • |
Power: DC-IN 12V |
| • |
Operation Temperature: -20°C ~ 70°C |
|
|
|
|
|
 |
|
 |

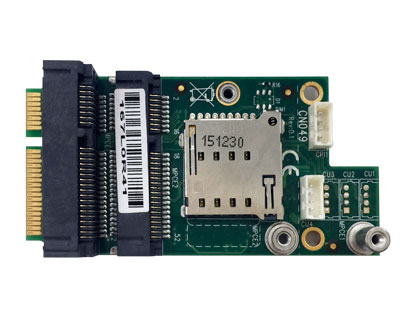

| • CN049 |
Mini PCIe converter Board |
| Specification |
1 x Mini PCIe Slot to 2~3 X Mini PCIe Slot + 1~2 x USB |
| Dimensions |
50.95 x 30 mm |
 |
|
| ---------------------------------------------------------------------------------------------- |
 |

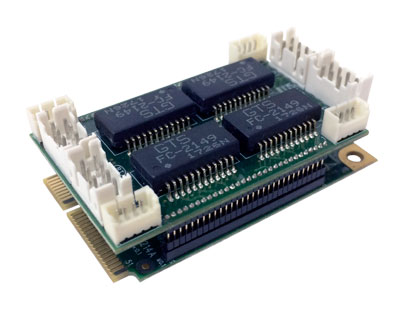

| • M214A |
Mini PCIe converter Board |
| Specification |
LAN Extension Card, Support 4 Giga bit/s Intel I210IT LAN |
| Dimensions |
50.95 x 30 mm |
|
|
| ---------------------------------------------------------------------------------------------- |
 |

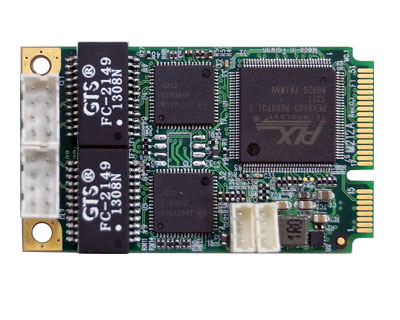

| • M212A |
Mini PCIe Extension Board supports
2 x Giga bit/s LAN |
| Specification |
LAN Extension Card, Support 1~2 Giga bit/s Intel I210IT LAN,
Full Duplex Flow Control |
| Dimensions |
50.95 x 30 mm |
|
|
|
|
|
