Ultra Compact 2.5” SBC Board with
Intel Atom™ Bay Trail-I Dual / Quad Core E3825/3845 |
| |
LEX launches 2I380A SBC with the new Intel® Atom™ Bay Trail (Dual Core / Quad Core) processor to give users fast, convenient and simplified solutions for industrial and embedded applications.
The compact size feature makes this platform well suited for many space-limited and thermally constrained embedded applications, such as Digital Signage Machines, Visual inspection instruments and intelligent thin-client solution. |
| |
|
| |
|
|
| |
| 1. |
Intel® Bay Trail-I E3825 1.33 GHz (Dual Core) / Bay Trail-I E3845 1.91 GHz (Quad Core) CPU / chipset |
| 2. |
MB size 2.5” 105 x 73mm |
| 3. |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| 4. |
Memory: DDR3L 2G/4G On board |
| 5. |
Features: VGA, HDMI, 1 x Intel Gb Ethernet, 2 x Mini PCIe, 4 x USB, COM |
| |
|
|
|
| |
|
 |
+ |
 |

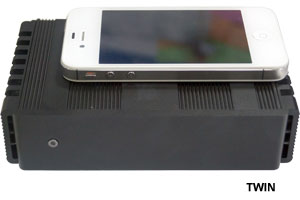

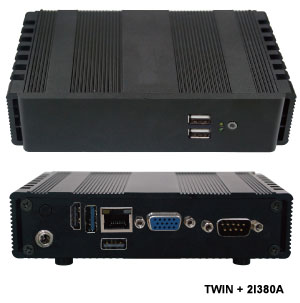

| TWIN |
Dimension: 145W x 89.3D x 35H |
| • Palm Size Fanless Solution |
| • Front Panel / Back Panel IO conntors |
|
|
| |
|
+ |
 |

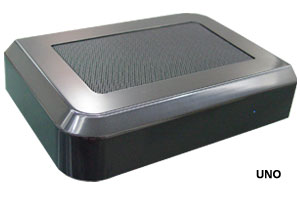

| UNO |
Dimension: 180W x 125D x 42H |
| • PoE Client solution |
| • Cost effective and One LAN cable set-up, No A/C attach required |
|
|
| |
|
|
|
Digital Signage solution with 2.5” Bay Trail-I platform |
| |
| LEX 2I380A with multiple display interface : VGA and HDMI, provides reliable & high performance platforms for customer to build up different types of digital signage tools which are able to advertising through high resolution display LCD screen 24/7 non-stop service in bus, display window, department store or air port information system. |
| |
 |
|
|

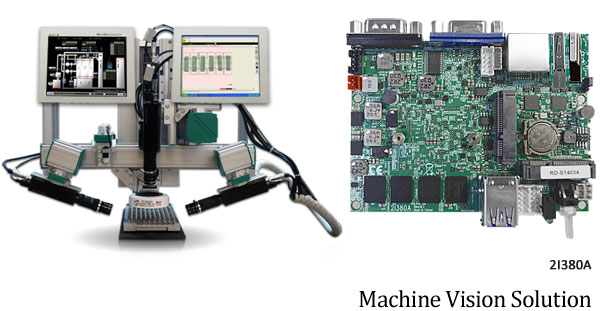

Machine Vision Solution with 2.5” Bay Trail-I platform |
| |
| With LEX rugged, compact & industrial design cases, 2I380A processes the Giga LAN & USB 3.0 interface for using high-speed cameras at wide range power supplied environments. LEX 2I380A system develops a completed machine vision solution for production facilities which require the greatest performance in a very limited space. |
| |
 |
|
|
Thin-Client / Networking Solution with 2.5” Bay Trail-I platform |
| |
| LEX 2I380A provides customers the new generation thin client platform with single/quad-core processing and multimedia support. Plus with Generation 7 graphics and media encode/decode engine, 2I380A is able to run HD video playback & internet streaming smoothly. The compact, rugged and fanless design of TWIN 2I380A helps customer to create high-performance system without additional maintenance cost for failed system fan. |
| |
 |
|
|
|

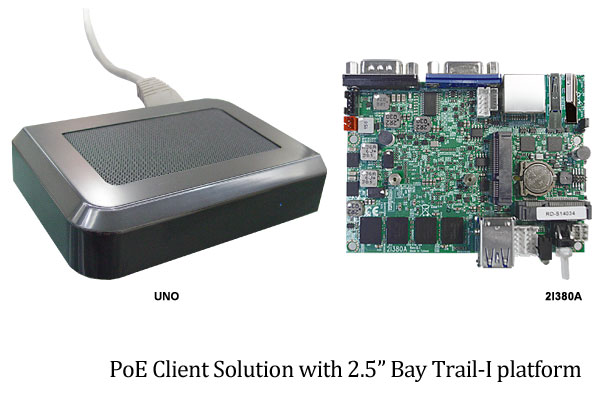

PoE Client Solution with 2.5” Bay Trail-I platform |
| |
| LEX 2I380A with PoE- In power module can be dedicated to PoE-Client device. LEX PoE-Client solution provides thin client users many benefits at environmental, cost and management aspects. Through the power over Ethernet, PoE-client system not only reduces expensive electrical wiring fee but also increases maintenance efficiency by by being able to shut down or reset devices remotely. |
| |
 |
| |
