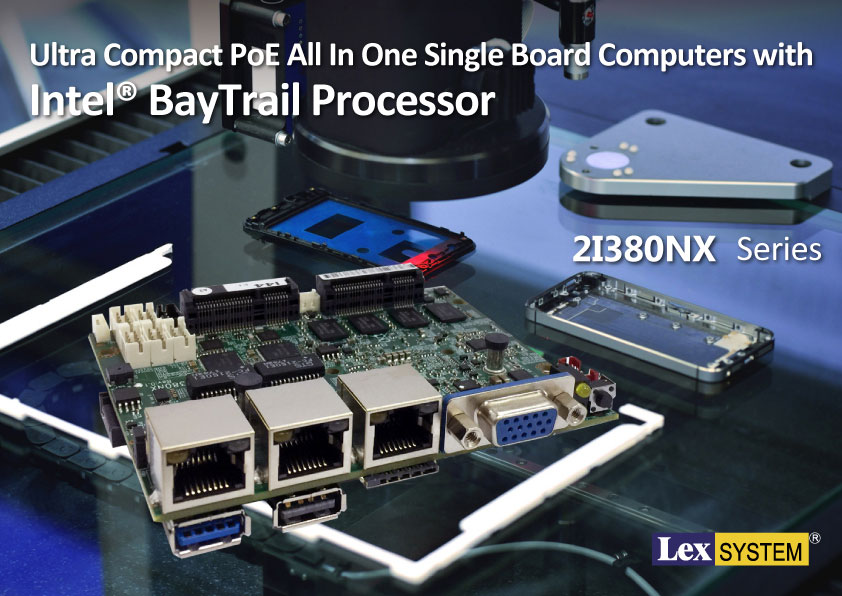

| Ultra Compact PoE All In One Single Board Computers with |
| Intel® BayTrail Processor |

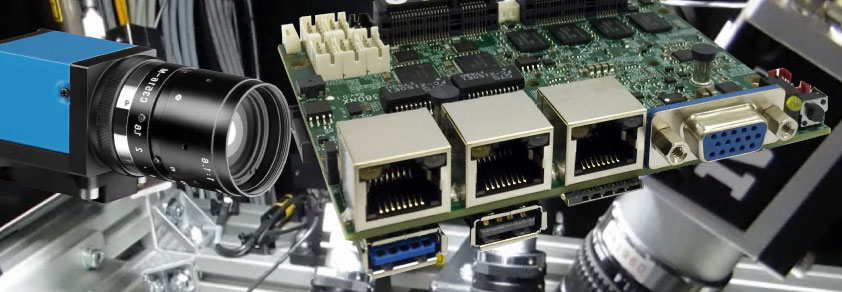

| LEX Computech released super compact (102 x 83 mm) motherboard with wide range 9~36V DC power input: 2I380NX is based on Intel® Bay Trail Quad Core processor, integrated 2 x PoE, 1 x Intel GbE LAN, 4 x USB , 2 x COM Port & VGA display interface that offers the smallest platform for applications in surveillance, networking, automation, military & machine vision applications. |
|
 |
 |
|
 |
 |
|
| 2I380NX |
|
| Integrated PoE IP and Networking Applications |
| • |

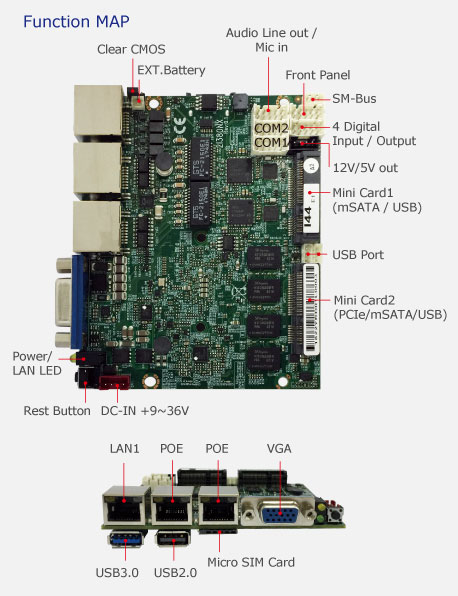

Intel® Bay Trail-I E3845 1.91GHz CPU / chipset |
| • |
On board DDR3L 1333 MHz 4GB |
| • |
Display Interface: VGA |
| • |
2 x PoE Intel i210 + 1 x LAN Intel i210 |
| • |
4 x USB (1 x USB 3.0 + 3 x USB 2.0),
Micro SIM socket, 2 x Mini PCIe |
| • |
2 x COM (RS232/422/485) |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
|

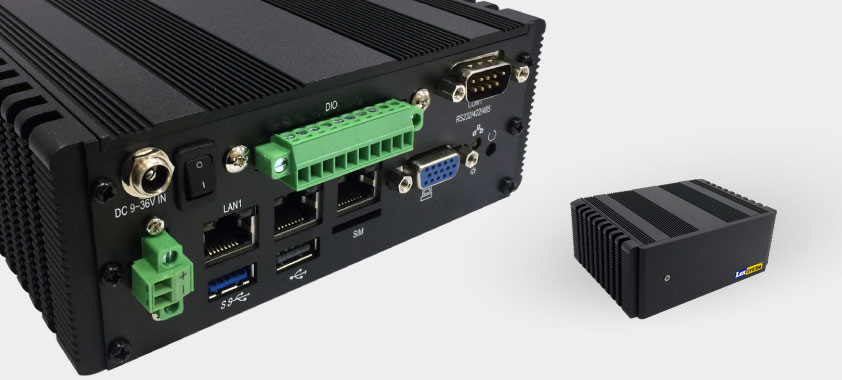

| Dimension: 56.5H x 145W x 106.2D mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
 |
|
 |
|
|
|

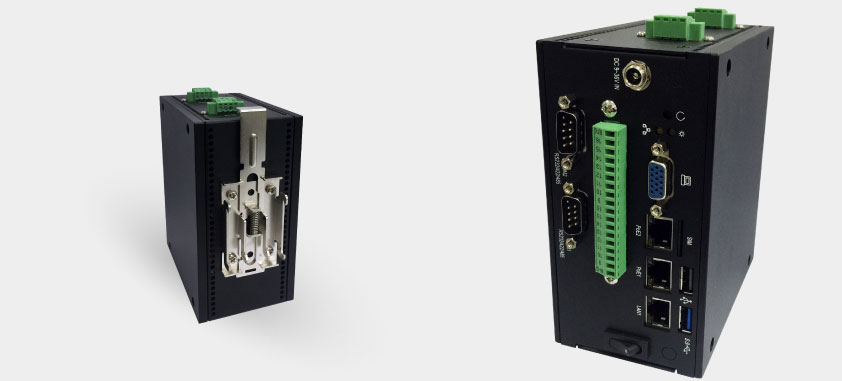

| Dimension: 72H x 139W x 116D mm |
| • Fanless DIN-Rail System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
|
| |
|
|
|
