Industrial Ethernet Appliance with
Intel Atom™ Bay-Trail Dual Core E3825 |
|

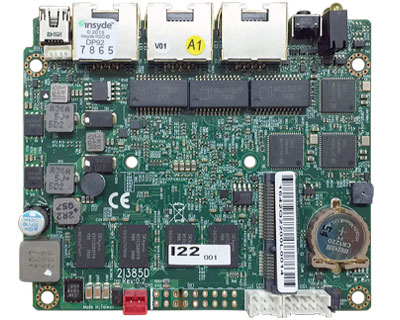

| LEX launches 2I385D series SBC with built-in 3 x Intel Giga LAN ports as an economic and flexible hardware platform for industrial communication solution. A reliable and efficient communication network which connects all the components of the factory to work together effectively plays an important role of success industrial automation. LEX 2I385D provides customers a robust, wide range power input and compact computing system with an industrial design and built-in I/O to handle diverse applications. |
| |
|
|
|
| • |
Intel® Bay Trail-I E3825 1.33 GHz (Dual Core) CPU / chipset |
| • |
MB size: 75.95 x 90.8 mm |
| • |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| • |
Memory: DDR3L 2G Onboard |
| • |
Features: |
| |
Super compact SBC, On Board DDR3L Memory, |
| |
3 x GbE, 1 x mini USB, (LAN 2 & LAN 3 can be optional to RS485) |
| |
1 x USB 2.0 (internal), VGA, 1 x Mini PCIe for mSATA |
|
|
|
| |
|
|
 |

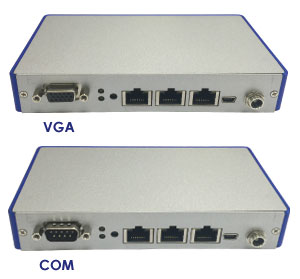

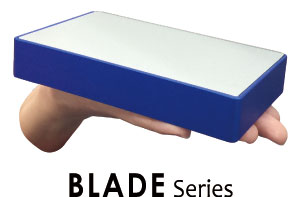

| BLADE Dimension: 25H x 150W x 81.2D mm |
| • |
Slimmest Compact, Powerful and Fanless |
| • |
Application: |
| |
Thin Client / Digital Signage / Networking |
|
|
|
|
| |
|
|
 |

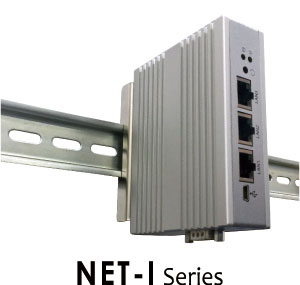

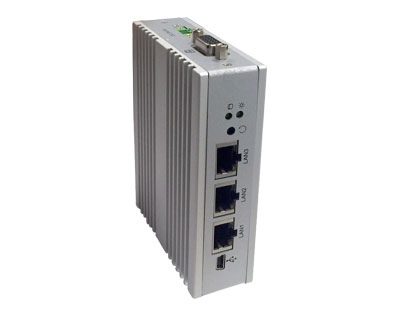

| NET-I Dimension: 106W x 85D x 30H mm |
| • |
DIN Rail system |
| • |
Ultra compact & Fanless system |
| • |
Industrial Networking platform |
|
|
|
|
