Flexible IO expansion
with 2.5” Intel Atom™ Bay-Trail Dual / Quad Core E3825/3845 platform |
| |

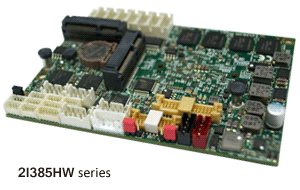

| LEX launches 2I385HW SBC with Intel® Atom™ Bay Trail (Dual Core / Quad Core) processor to give users fast, convenient and simplified solutions for industrial and embedded applications. This platform with all wafer IO design delivers high flexibility toward expanded functions and also provides user hassle-free solution of integrating the SBC board at various mechanical chassis. |
| |
| The compact size feature makes this platform well suited for many space-limited and thermally constrained embedded applications, such as Automation Control, Transportation, Military, Aquaculture industry, Oceanographic research and POS/Kiosk solution. |
| |
|
|
|
|
| |
| 1. |
Intel® Bay Trail-I E3825 1.33 GHz (Dual Core) / Bay Trail-I E3845 1.91 GHz (Quad Core) CPU/ chipset, |
| 2. |
MB size 2.5” 105 x 73mm |
| 3. |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| 4. |
Memory: DDR3L 2G/4G Onboard |
| 5. |
Features: VGA, LVDS (or eDP option), Touch Screen, 2 x Intel Gb Ethernet , 2 x Mini PCIe, 4 x USB, 4 x COM, |
| |
Wide Range +9~36V DC-in |
| |
|
|
|
|
| |
|
Waterproof solution with 2.5” Intel Atom™ Bay-Trail Single / Quad Core E3815/3845 platform |
| |
| IP67 waterproof solution is equipped with ultra compact 2I385HW with excellent heat-dissipating function and fanless design, which is capable of supporting waterproof connectors ( M12 type) with function of VGA, USB, Serial Port and LAN. |
| |

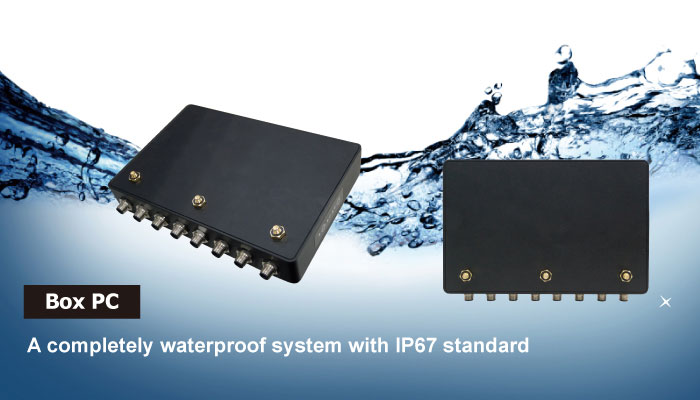

| Box PC |
Dimension: 250W x 168D x 40H |
|
| • Compact size Fanless Solution |
| • IP67 waterproof solution |
| • Waterproof (M12 type) connector |
|
 |
| |
|

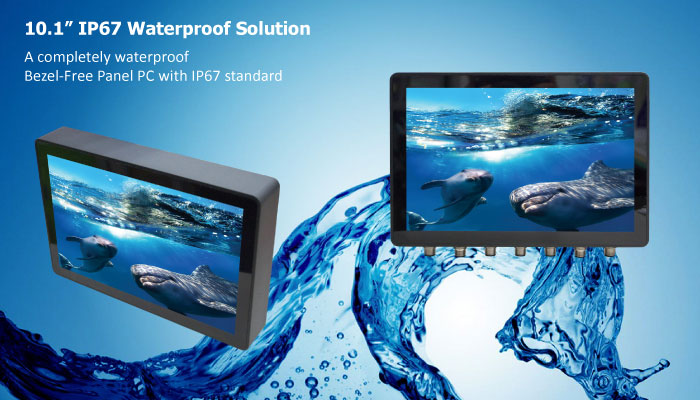

Waterproof Bezel Free Panel PC |
| |
| 10.1” IP67 Waterproof Solution |
|
| • Touch Screen panel |
| • Bezel free mechanical design |
| • Waterproof (M12 type) connector |
|
| |
 |
