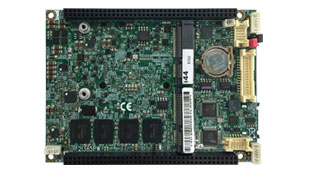

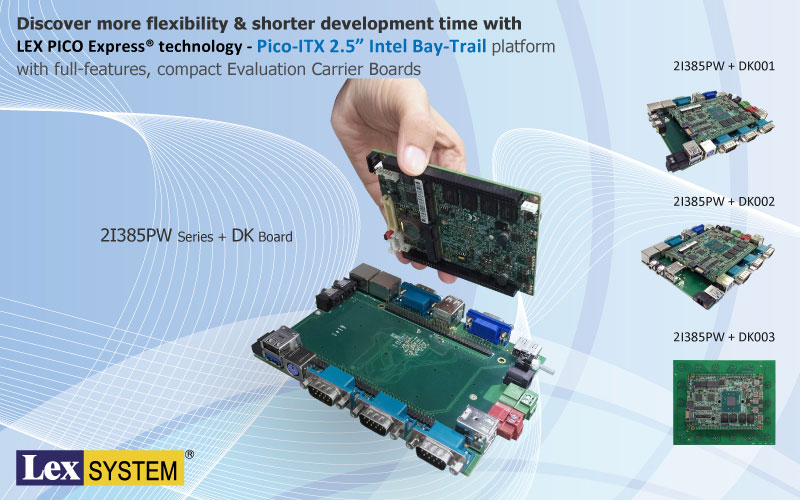

| LEX launches 2I385PW SBC with Intel® Atom™ Bay Trail (Dual Core / Quad Core) processor to give users flexible, reliable and cableless solution for configuring the customized system in the shortest time. By connecting with LEX PICO Express® technology (160-pin expansion connectors), users can adopt a carrier board with suitable I/O interfaces. |
| |
| LEX PICO Express® is a board-to-board expansion capability provides cablesless system and project-oriented IO options. 2I385PW’s PICO Express® design & Evaluation carrier boards is also the ideal solution for embedded application developers to get up and running quickly on their customized carrier boards for different OEM/ODM projects. |
| |
| |
|
|
|
| • |
Intel® Bay Trail-I E3825 1.33 GHz (Dual Core) / Bay Trail-I E3845 1.91 GHz (Quad Core) CPU/chipset |
| • |
MB size Pico-ITX 2.5” 105 x 73mm |
| • |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| • |
Memory: DDR3L 2G/4G Onboard |
| • |
Features: VGA, LVDS, HDMI, Touch Screen,
2 x Intel Gb Ethernet,
2 x Mini PCIe, 7 x USB,
4 x COM, 1 x PCIe, Wide Range +9~36V DC-in,
PICO Express® 160-pin connector |
|
|
|
| |

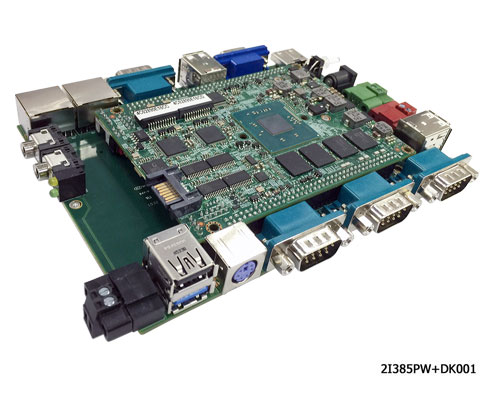

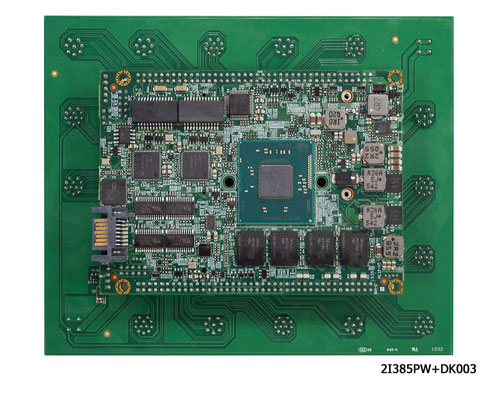

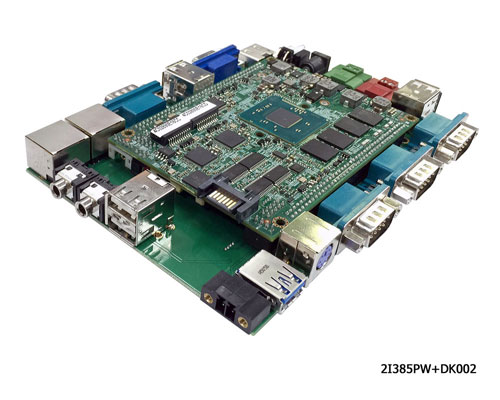

| LEX PICO Express® evaluation carrier boards: DK001/DK002/DK003 help customers evaluate the features and performance of 2I385PW M/B that demonstrate optimized and tested solutions for their application design. In addition to the evaluation, design and testing purposes, these boards help customers to expedite their carrier board development. |
| |

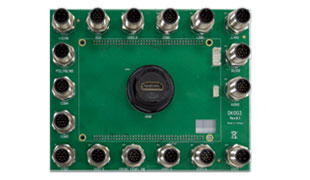

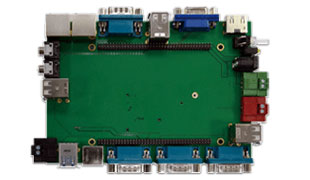

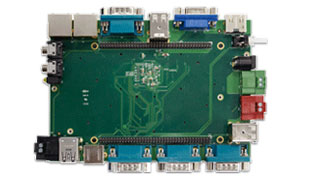

| PICO Express® Evaluation Carrier Board:
DK001 / DK002/ DK003 Spec |
|
| • |
Flexible interface for verifying LEX PICO Express® 2I385PW M/B |
| • |
Multi-type interface options for design development flexibility: |
| |
Stander IO connector & M12 Type connector |
| • |
Expedite customer’s carrier board development |
| • |
Ultra Compact size at 3.5” (145 x 102 mm) form factor |
| • |
Interface: |
| |
1~4 x miniPCIe, 1~4 x SIM holder, 1 x USB3.0, 5~6 x USB 2.0, |
| |
1 x PS2 KB/MS, 4 x COM, Line- out , Mic-in, 2 x GbE, |
| |
1 x VGA, 1x HDMI, PWR/Reset Button, PWR/LAN/HDD LED, |
| |
DC-IN JACK/TB IN/TB OUT, DIO |
|
| |
|
|
|
| |
|

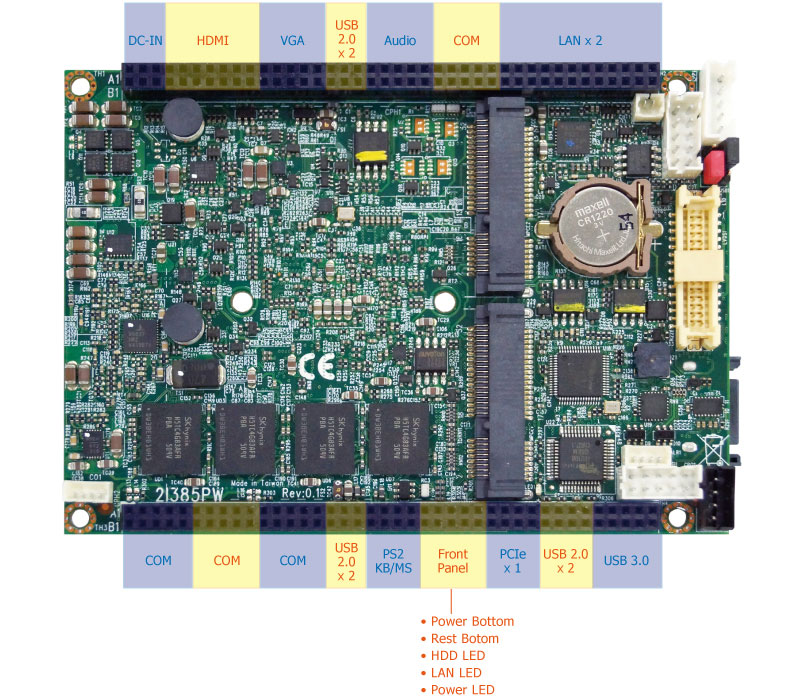

| LEX PICO Express® 160-pin connector I/O Interface Diagram |
| |
| |
2I385PW 160-pin connector I/O |
|
|
| |
 |
|
|
|
|
|
|
|
|
