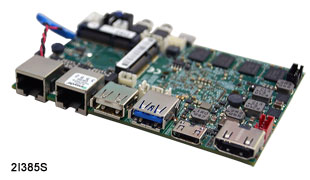

| LEX 2I385S SBC with Intel® Atom™ Bay Trail processor to give users fast, convenient and simplified solutions for industrial and embedded applications. |
| |
| The compact size & low profile I/O connector features make this platform well suited for many space-limited and thermally constrained embedded applications, such as Digital Signage Machines, thin-client and in-vehicle solution. |
| |
| 2I385S is enclosed in a compact chassis with low power consumption and is with special design to withstand high vibration, space-limited and dynamic power supply voltage vehicle working environment. |
| |
|
| |
|
|
| |
| 1. |
Intel® Bay Trail-D J1900 2.0GHz (Quad core) CPU / chipset |
| 2. |
MB size Pico ITX (2.5”) 105 x 73mm |
| 3. |
Graphic: Intel Bay Trail-D Integrated Graphics chipset |
| 4. |
Memory: DDR3L 2G Onboard |
| 5. |
Operation Temp.: 0°C~70°C |
| 6. |
Features: 2 x Intel Gb Ethernet, 2 x HDMI, 2 x Mini PCIe, 3 x USB, HD Audio, |
| |
Wide Range -9~36V DC-IN (option) |
| |
|
|
|
| |
|
| |
| The slim, light and compact size features of BLADE system make the platform well suited for many space-limited and thermally constrained embedded applications, such as digital signage, networking/thin client & in-vehicle PC systems. |
| |
 |
+ |
 |

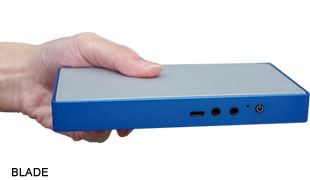

| BLADE |
Dimension: 150W x 80.8D x 18H mm |
| • Slimmest Size (18mm / 260g) Fanless Solution |
| • Operation Temp.: 0°C~50°C |
| • Wide Range Power input supported (option) |
|
|
| |
|
| |
|
+ |
 |

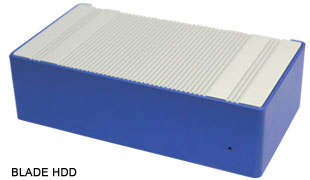

| BLADE HDD |
Dimension: 150W x 80.8D x 42H mm |
| • Slimmest Size (42mm / 470g) Fanless Solution |
| • Operation Temp.: 0°C~50°C |
| • Wide Range Power input supported (option) |
|
|
|
| |
|
Digital Signage |
| This slim sized (18 mm) Blade 2I385S system is equipped with Intel Bay Trail platform technology for enhanced system performance. Furthermore, Blade 2I385S ‘s 2 x HDMI display interface also makes it the ideal solution as the digital signage tool which is able to advertising through high resolution display LCD screen 24/7 non-stop service in bus, display window, department store or air port information system. |
| |
 |
| |
|
Thin-Client / Networking |
| 2I385S with built-in multiple Giga LAN ports is a high-performance, reliable and flexible platform to develop Network solution as Server, VPN, Firewall, Gateway, NAS, NAD and Enhanced Thin Clients applications. |
| |
 |
|
|
|
|
