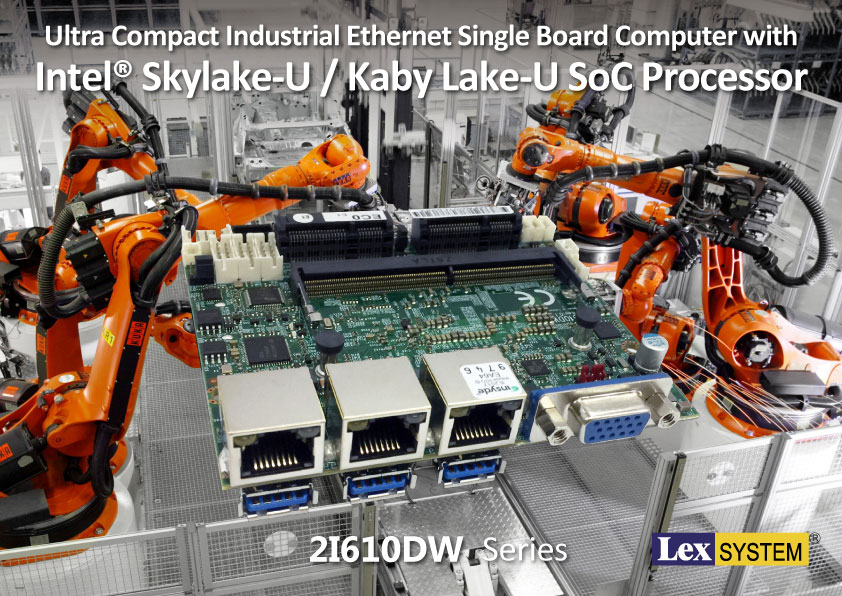

| Ultra Compact Industrial Ethernet Single Board Computer with |
| Intel® Skylake-U / Kaby Lake-U SoC Processor |

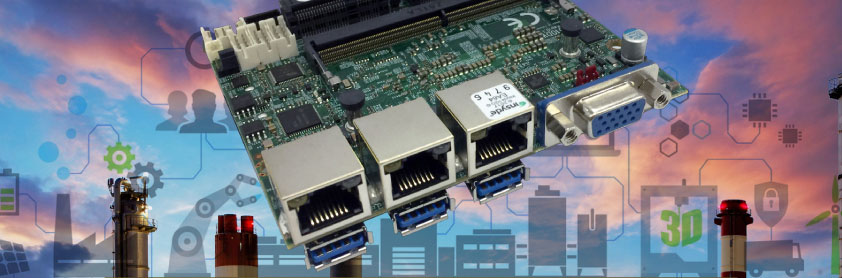

| LEX Computech released ultra compact (102 x 83 mm) motherboard with wide range 9~36V DC power input & 3 x Intel GbE: 2I610DW is based on the Intel® SkyLake-U/Kaby Lake-U i7/i5/i3/Celeron processor, integrated 3 x GbE LAN, 6 x USB, 2 x COM Port and VGA display interface that offer the ideal platforms for high performance applications in Networking, Smart Automation, Machine Vision, In-vehicle, Industry 4.0 and any compact high-performance Internet of Things (IoT) applications. |
|
 |
 |
|
 |
 |
|
| 2I610DW |
|
| Compact solution for Networking & IoT Applications |
| • |

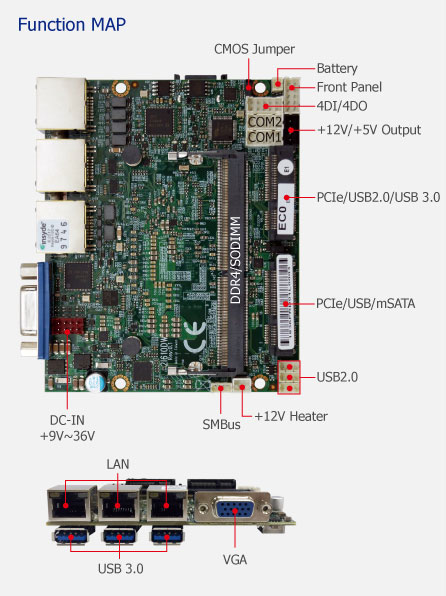

Intel® Skylake-U/Kaby Lake-U i7 /i5 /i3 /Celeron SoC
CPU / chipset |
| • |
1 x DDR4 SODIMM socket, max. up to 16GB |
| • |
Display Interface: VGA |
| • |
3 x Intel (I210 IT) GbE, 2 x Mini PCIe, 4DI/4DO |
| • |
6 x USB (3 x USB 3.0/2.0 + 3 x USB 2.0),
2 x COM (RS232/422/485) |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 60°C |
| |
 |
|
|
 |
|
|
|

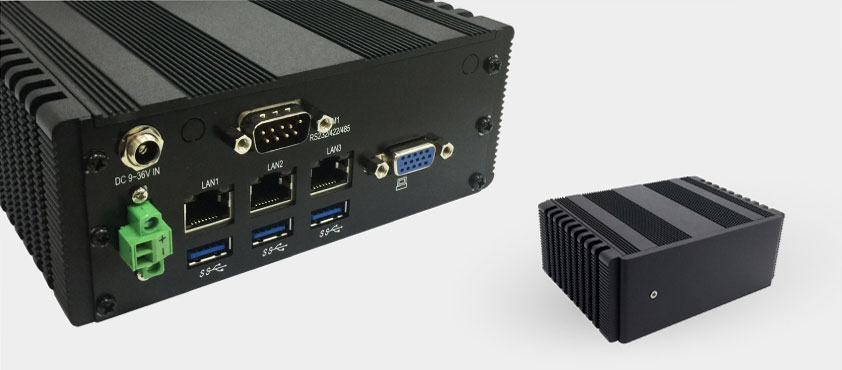

| Dimension: 56.5H x 145W x 106.2D mm |
| • Compact & Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
 |
|
 |
|
|
|
