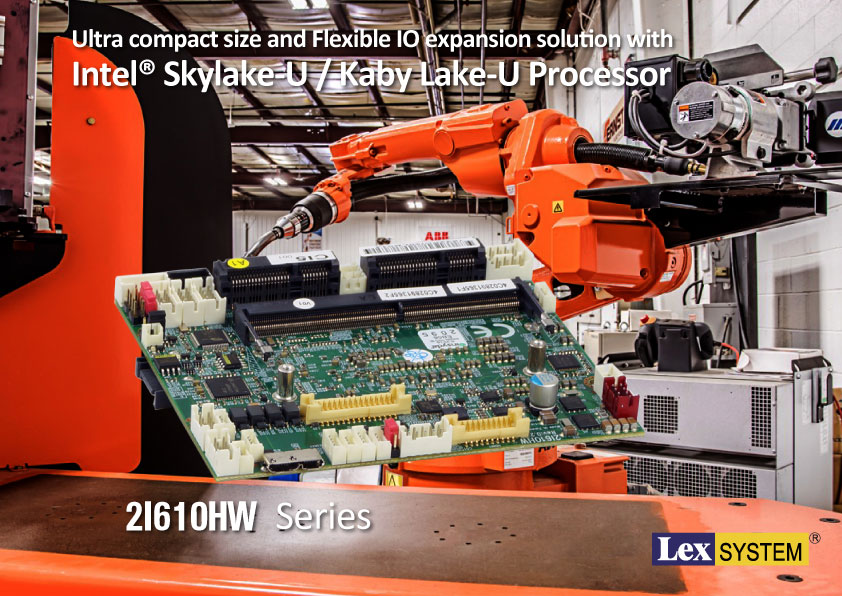

| Ultra compact size and Flexible IO expansion solution with |
| Intel® Skylake-U / Kaby Lake-U Processor |

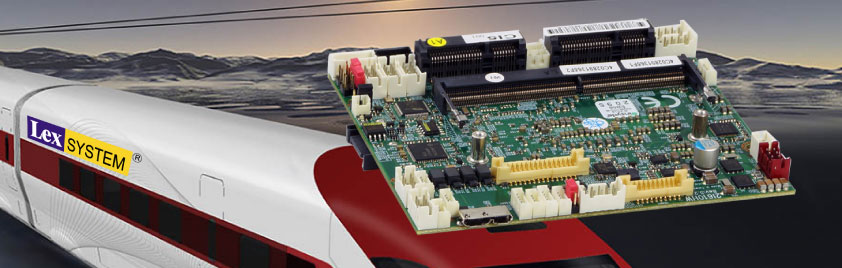

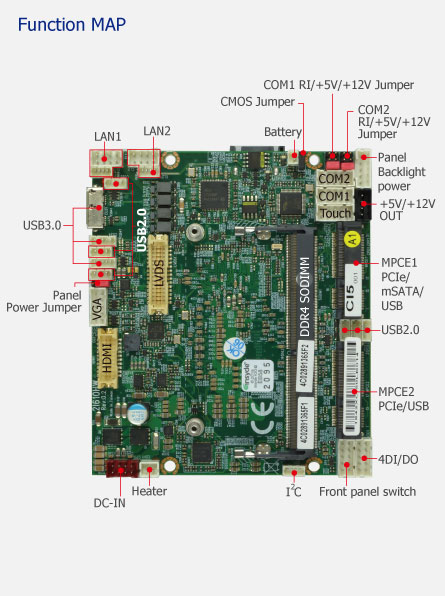

LEX Computech released the next generation 2.5" (102 x 88 mm) motherboard 2I610HW powered with Intel® Skylake-U / Kaby Lake-U processor & offered the ideal platform for high performance applications. 2I610HW's all wafer IO design delivers high flexibility toward expanded functions and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures.
The compact size feature makes 2I610HW well suited for many space-limited and thermally constrained embedded applications, such as Automation Control, In-Vehicle, Military, Smart Factory, Industry 4.0 and Robot Technology solution. |
|
 |
 |
|
 |
 |
|
| 2I610HW |
|
| ideal solution for space-limited embedded Applications |
| • |
Intel® Skylake-U/Kaby Lake-U i7 /i5 /i3 /Celeron SoC
CPU / chipset |
| • |
1 x DDR4 SODIMM socket, max. up to 16 GB |
| • |
Display Interface: HDMI, VGA & LVDS |
| • |
2 x Intel (I210 IT) GbE, 2 x Mini PCIe, 4 DI/4DO,
Touch Screen |
| • |
9 x USB (3 x USB 3.0 + 6 x USB 2.0),
2 x COM (RS232/422/485) |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
|

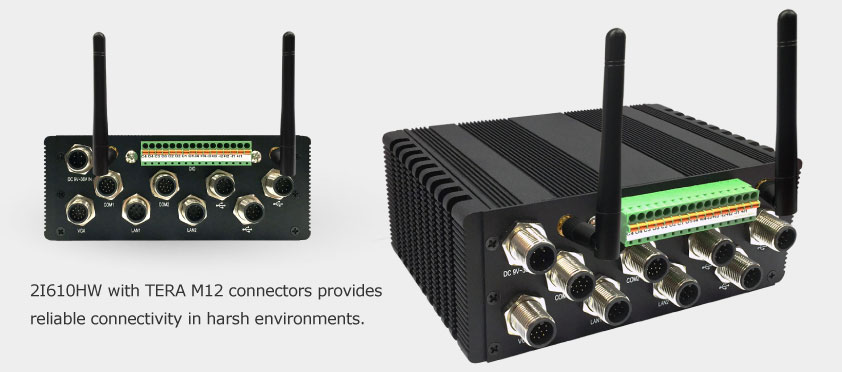

| Dimension: 145W x 106.2D x 56.5H |
| • Compact size Fanless Solution |
| • Robust M12 connectors |
|
| |
 |
|
 |
|
|
 |
| Waterproof solution with |
| Intel® Skylake-U / Kaby Lake-U Platform |

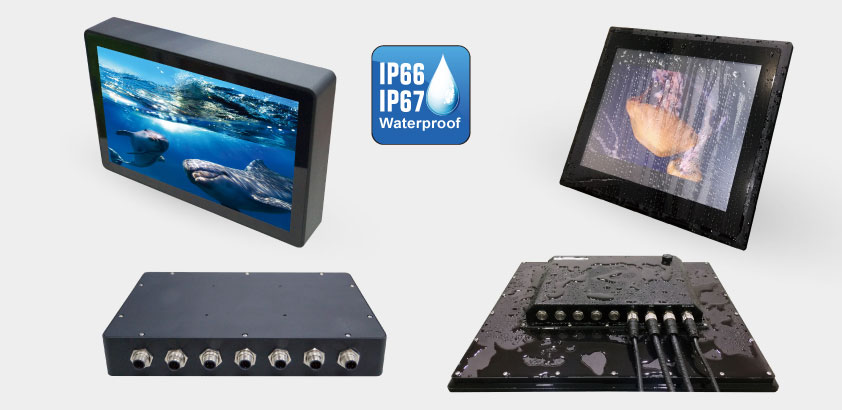

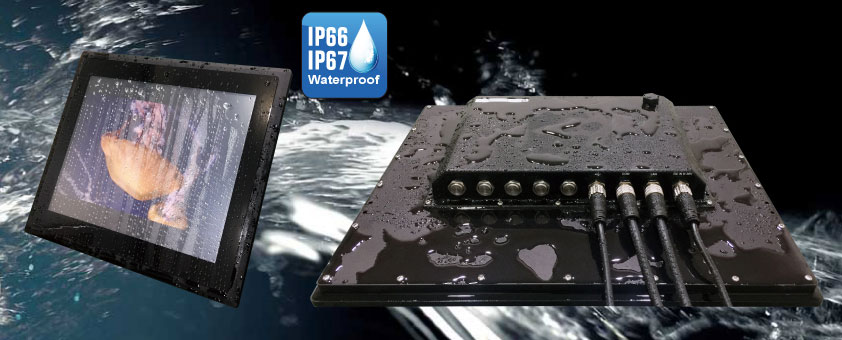

| IP67 waterproof solution is equipped with ultra compact 2I610HW with excellent heat-dissipating function and fanless design, which is capable of supporting waterproof connectors (M12 type) with function of VGA, USB, Serial Port and LAN. |
|
 |
 |
|
|
|
| • Touch Screen panel |
| • Bezel free mechanical design |
|
|
| |
|
|
|
