eNews - 2I612CW

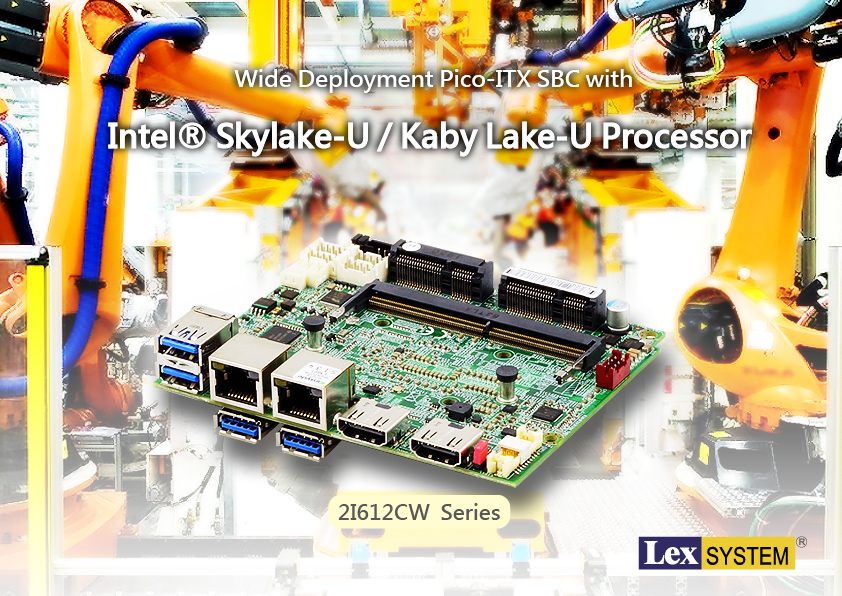

Wide Deployment Pico-ITX SBC with

Intel® Skylake-U / Kaby Lake-U Processor

LEX SYSTEM released Pico-ITX 2.5" (110 x 92 mm) motherboard 2I612CW: powered with Intel® Skylake-U / Kaby Lake-U processor & offered the ideal platform for high performance applications. With 2 x Intel GbE LAN ports, 4 x USB 3.0 ports, and 3 x USB 2.0 ports, 2I612CW can be connected to a range of cameras and sensors and its 4 DI /4 DO enables it to control connected systems base on digital inputs. 2I612CW also has 2 x HDMI port ( could be OEM to DP) and eDP for display output for wide deployment in application specific environments, such as machine vision , automation, effect HMI related applications.

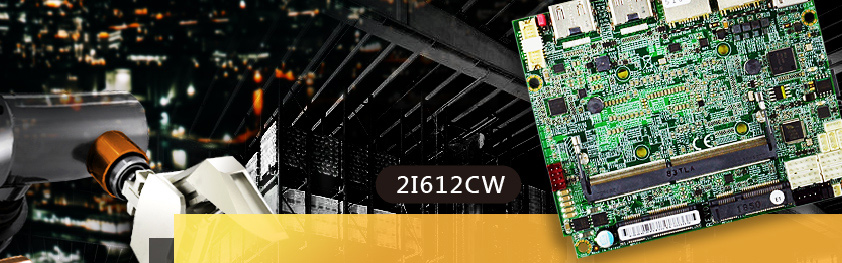

2I612CW

2I612CW –ideal solution
for space-limited embedded Applications

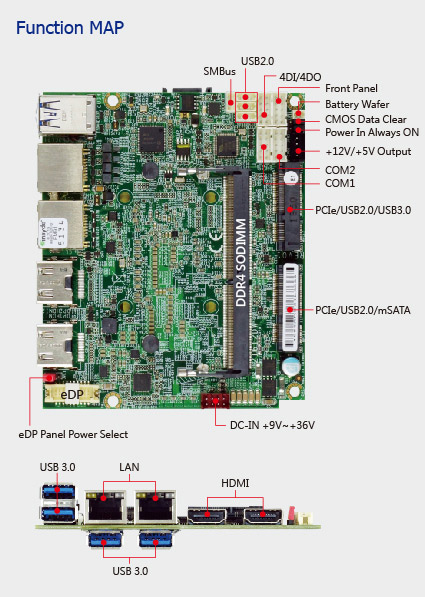

•	Intel® Skylake-U/Kaby Lake-U i7 /i5 /i3 /Celeron SoC CPU
•	1 x DDR4 SODIMM socket, max. up to16GB
•	Display Interface: 2 x HDMI (OEM to DP), eDP
•	2 x Intel ( I210 IT ) GbE
•	1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Full size Mini PCIe (PCIe / USB 3.0 / USB2.0)
•	4 DI/4 DO
•	7 x USB (4 x USB 3.0/2.0 + 3 x USB 2.0)
•	2 x COM (RS232/422/485)
•	TPM 2.0 (Option)
•	Wide Range DC IN +9~36V
•	Wide temperature support of -20°C ~ 70°C
