| Ultra Compact Networking Appliance |
| with 8th Intel® Whiskey Lake-U SoC Processor |
| LEX Computech released ultra compact (102 x 108 mm) SBC 2I810D is with 8th Gen. Intel® Whiskey Lake-U i7/i5/i3/Celeron processor, integrated 4 x GbE LAN, 7 x USB, 2 x COM Port and HDMI,VGA display interface that offer the ideal platforms for high performance applications in Networking, Smart Automation, Machine Vision, In-vehicle , Industry 4.0 and any compact high-performance Internet of Things (IoT) applications. |
|
 |
 |
|
 |
 |
|

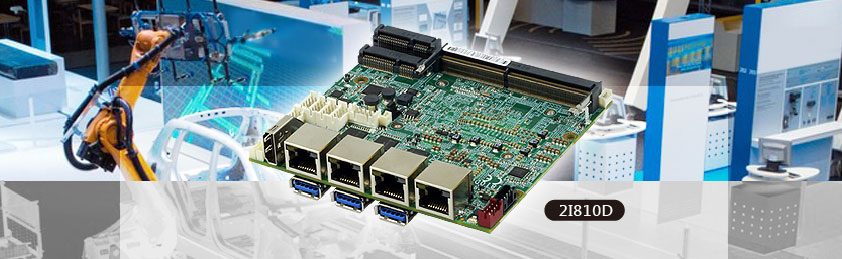

| 2I810D |
|
| Compact solution for Networking Appliance |
| • |

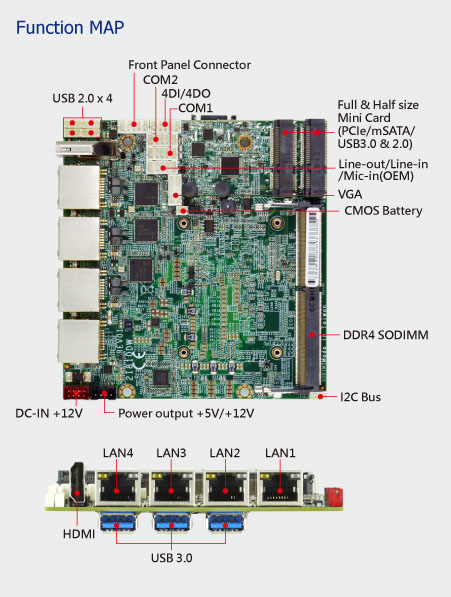

8th Intel® Whiskey Lake-U i7 /i5 /i3 /Celeron SoC CPU / chipset |
| • |
1 x DDR4 SODIMM socket, max. up to 32GB |
| • |
Display Interface: VGA & HDMI |
| • |
4 x Intel (1x I219LM+3xI210 IT) GbE, 2 x Mini PCIe, 4DI/4DO |
| • |
7 x USB (3 x USB 3.0/2.0 + 4 x USB 2.0), 2 x COM (RS232/422/485) |
| • |
DC IN +12V |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
|

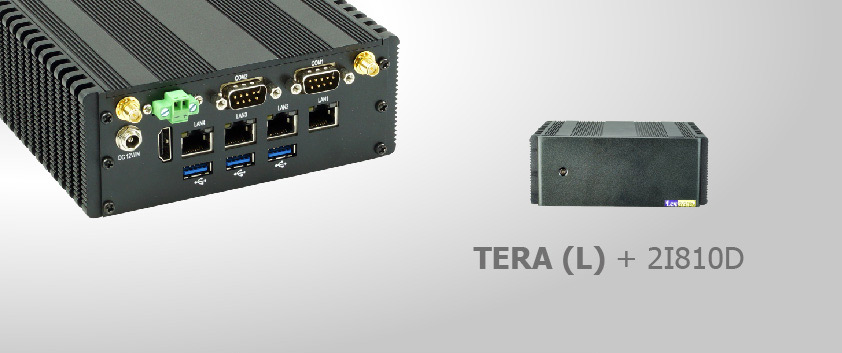

| Dimension: 71.9 H x 141W x 111.2D mm |
| • Compact & Excellent DIN-Rail System |
| • Robust & Powerful Fanless Embedded solution |
| |
|
| |
 |
|
 |
|
|
|

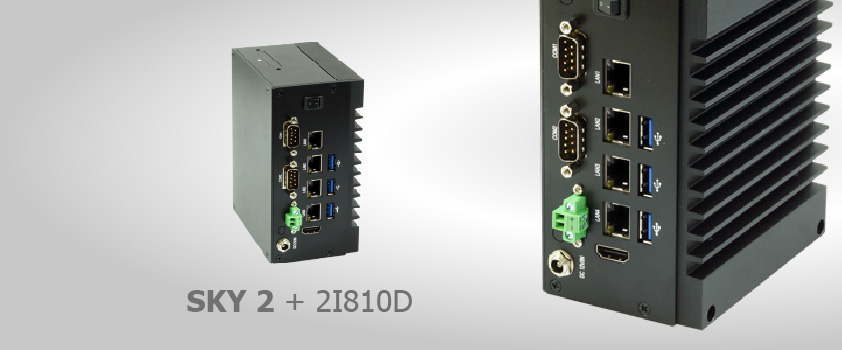

| Dimension: 56.5H x 145W x 126.2D mm |
| • Compact & Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
|
|
| |
|
|
|
