| Industrial Ethernet Appliance 3.5” Single Board Computer with |
| Intel® Skylake-S / Kaby Lake-S Processor |
| LEX Computech released of the next generation 3.5” motherboard with wide range 9~36V DC power input 3I170DW is based on the Intel® Skylake-S / Kaby Lake-S i7/i5/i3/Celeron processor, Intel Q170 Chipset, integrated 5 x GbE LAN, 10 x USB, 2 x COM Port and HDMI, VGA display interface that offer the ideal platforms for high performance applications in Networking, Smart Automation, Point-Of-Information (POI), Self-Services, In-vehicle, Industry 4.0 and any compact high-performance Internet of Things (IoT) applications. |
|
 |
 |
|
 |
 |
|

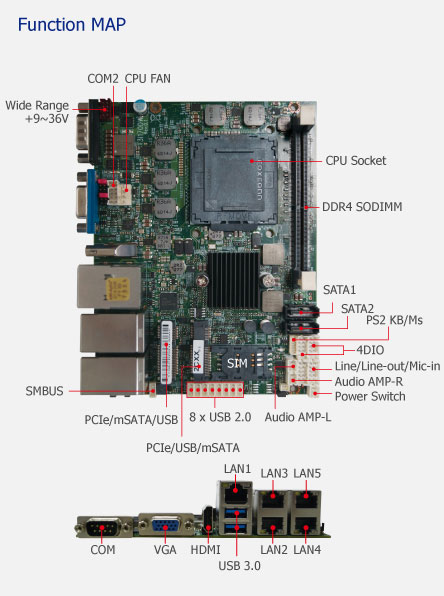

| 3I170DW |
|
| Completed solution for Networking & IoT Applications |
| • |
Intel® Skylake-S / Kaby Lake-S i7/i5/i3/ Celeron CPU / Q170 chipset |
| • |
1 x DDR4 SODIMM socket, max. up to 16GB |
| • |
Display Interface: HDMI & VGA |
| • |
5 x Intel (4 x I210 IT + 1 x I219LM) GbE,
2 x Mini PCIe, 1 x SIM |
| • |
10 x USB (2 x USB 3.0/2.0 + 8 x USB 2.0), HD Audio,
2 x COM (RS232/422/485) |
| • |
8DI/8DO, HD Audio, Audio AMP |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
|

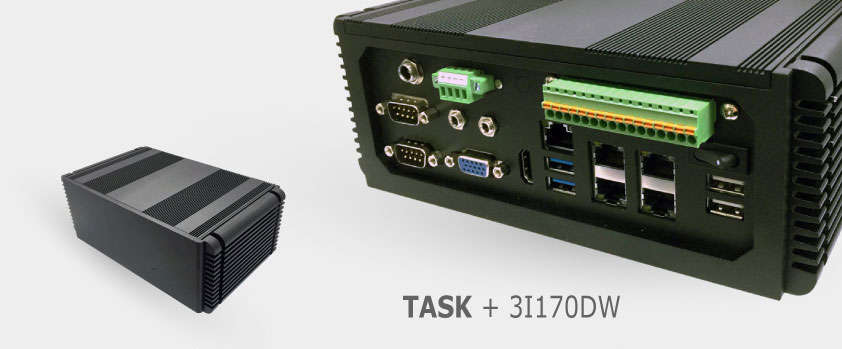

| Dimension: 77H x 210W x 125D mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
 |
|
 |
|
|
|
