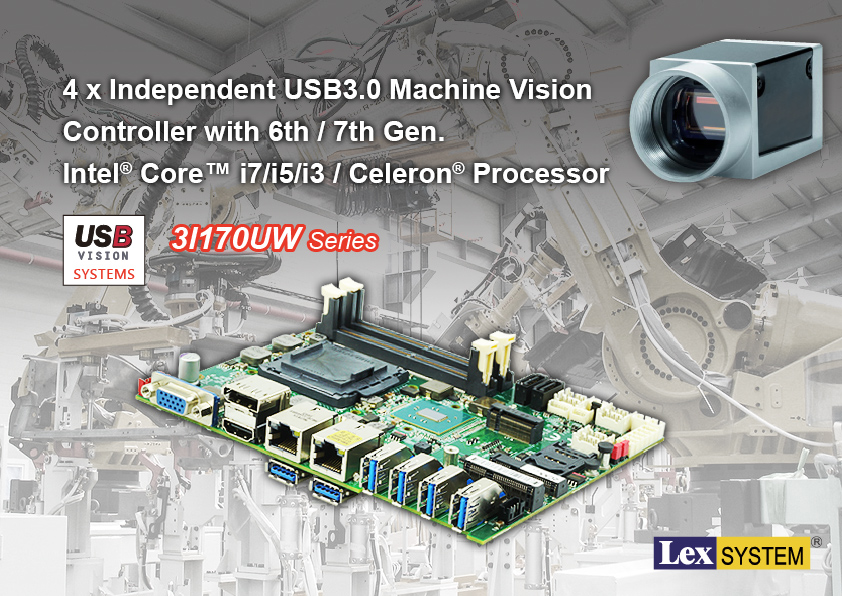

| 4 x Independent USB3.0 Machine Vision Controller with |
| 6th / 7th Gen. Intel® Core™ i7/i5/i3 / Celeron® Processor |

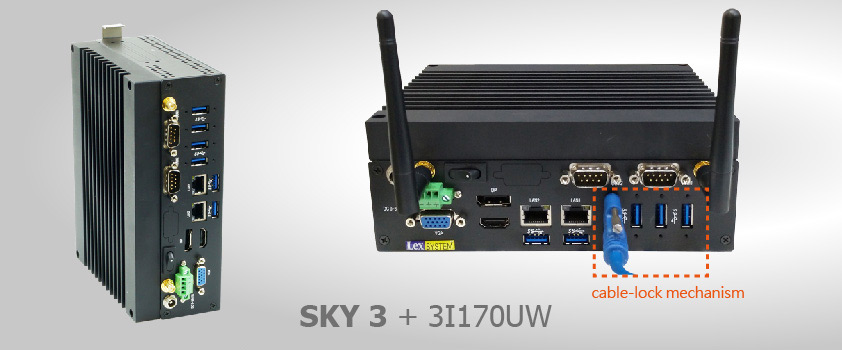

| LEX SYSTEM 3I170UW features wide range DC input & 1* VGA, 1* DisplayPort, 1* HDMI, 2* COM, 2*USB 3.0; combining built-in four Renesas uPD720202 USB 3.0, Host Controller with max. 2A output current for vision camera; is the ideal platform for demanding machine vision controller application. SKY 3- 3I170UW fanless machine vision controller also supports cable-lock mechanism for reliable cable connection of USB industrial cameras in machine vision, factory automation, and medical applications, as well as any other applications that require high-data transfer speeds. |
|
 |
 |
|
 |
 |
|

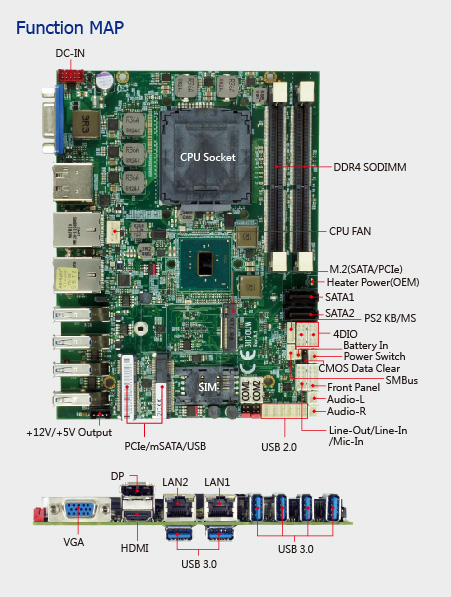

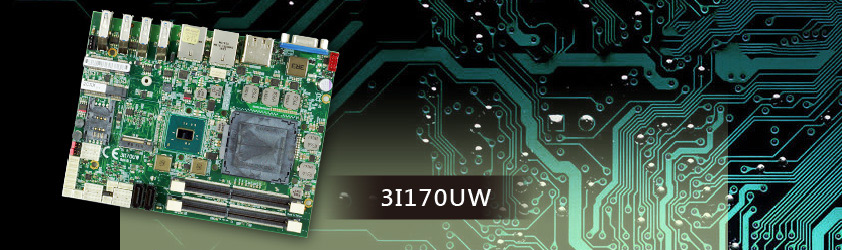

| 3I170UW |
|
| 4*independent USB 3.0 Machine Vision Controller |
| • |
Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 / Celeron CPU / Q170 chipset |
| • |
2 x DDR4 2133 Mhz SODIMM, Max up to 32 GB |
| • |
Display Interface: HDMI, DP & VGA |
| • |
4 x Renesas uPD720202 USB 3.0 |
| • |
2 x Intel GbE LAN, 2 x USB 3.0, 6 x USB 2.0 , 2 x RS232/422/485 |
| • |
2 x Mini PCIe,1 x SIM, 1 x M.2 B Key |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~70°C |
| |
 |
|
|
 |
|
|
|
| Dimension: 66.9H x 183W x 142.2D mm |
| • DIN-Rail & super heat-dissipating system |
| • Robust & Powerful Fanless Embedded solution |
| |
|
| |
 |
|
 |
|
|
|
