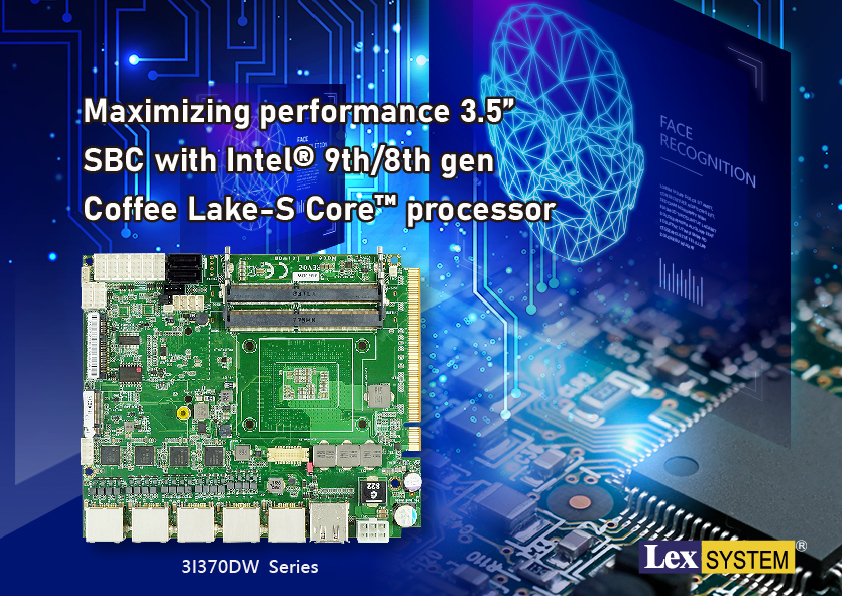

Maximizing performance 3.5” SBC with Intel® 9th/8th gen
Coffee Lake-S Core™ processor |
LEX SYSTEM 3I370DW, with latest Intel 9th/8th Gen Coffee Lake-S Core i CPU, equipped with 5 x GbE, 6 x RS232/RS422/485 serial ports, 8 x USB, 16 DI /16 DO, DP, HDMI & eDP and PCIe/mPCIe/M.2 expansion slots, is ideal platform to integrate diagnostic test tools and control equipments for video surveillance, vehicle communication and industrial IoT automation applications.
3I370DW provides the option of horizontal & vertical type memory SODIMM socket for flexible implementing with heat-spreading requirement. Furthermore, APOLLO-S & APOLLO-RS 3I370DW mechanical design provide rugged and scalable computing platforms that support installing graphics card which benefit the implementation of advanced AI applications such as machine learning, autonomous vehicle, intelligent video analytics, facial recognition. |
|
 |
 |
|
 |
 |
|
| 3I370DW |
|
3I370DW – Completed solution
for AI & Industry 4.0 Applications |
|
| • |

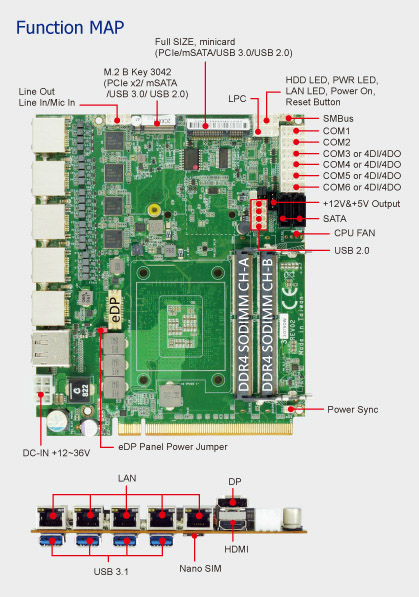

Intel® 9th /8th Gen Coffee Lake-S, i9 (35W) /i7 / i5 / i3 / Pentium/ Celeron CPU |
| • |
Intel® Q370 Chipset |
| • |
2 x DDR4 SODIMM socket, Max. 64GB |
| • |
Multiple Independent display: HDMI, DP & eDP
(eDP to VGA and DVI converter) |
| • |
5 x Intel GbE LAN, 4 x USB 3.1,4 x USB 2.0, TPM2.0 |
| • |
1 x Full size Mini PCIe (PCIe /mSATA /USB 3.0 /USB2.0) |
| • |
1 x M.2 B Key, Type 2242 (Support NVME) |
| • |
1 x PCIe 16x golden finger |
| • |
6 x RS232/422/485 (internal) – Optional to DIO port |
| • |
16 DI/ 16 DIO-Optional to Serial Port |
| • |
Wide Range DC Input +12~36V |
| • |
Wide Range temperature support -20 °C ~ 60°C |
|
|
|
 |
|
|
 |
|

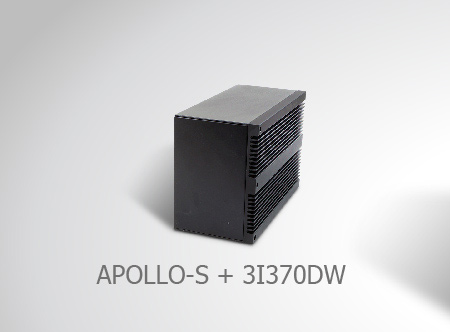

| Dimension : 230 x 99 x 173 mm |

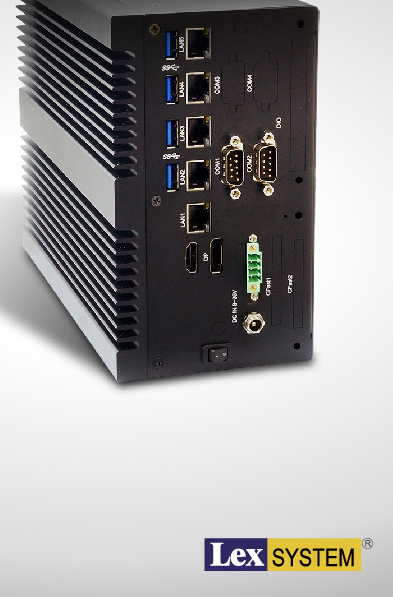

| • Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
 |
|
|
 |
|
 |
 |
|

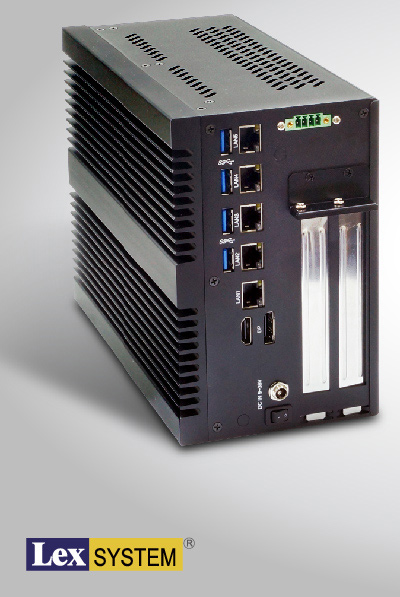

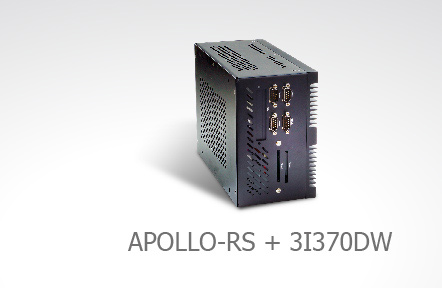

| Dimension : 230 x 109 x 173 mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
| • Support 1x PCIe Slot expansion |
|
|
|
|
| Extension Cards |
 |
RS804 : Riser card for PCIe to 1 x PCIe Slot
PCIe (x16) interface to 1 x PCIe Slot ( PCIe x16)
Riser Card for Apollo-RS 3I370DW
110 x 45 mm |
|
|
 |
E694A : 4 x PoE 802.3 AF/AT
PCIe x 4 Compliant
4 x Intel I210 IT Chipset
120 x 101 mm |
|
|
 |
PW502 : Wide range Power board & Power Supply
Input Voltage: 18V~75V, 9V~36V or 16.6V~154V
Output: 4 x +12V DC output (Optional to 24V)
Operating base plate temperature -40ºC to +100ºC
Isolation voltage: 3000V
Power: 200W
102 x 73 mm |
|
|
|
| |
|
