Integrated PoE IP & Networking Applications -
with Intel® Bay Trail-I E3815/E3845(Single/Quad Core) CPU |
| |

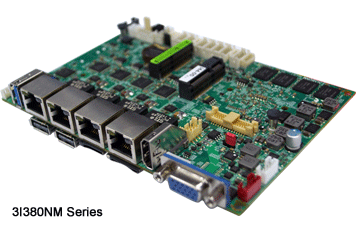

| LEX’s 3I380NM series provides 4 x PoE ports as PoE / NVR platforms specially used in the surveillance industry. Combined with a compact and rugged housing, it’s compatible with most electronic applications and delivers its maximum capability consistently during the movement. |
| |
|
|
|
|
| |
| 1. |
Intel® Bay Trail-I E3815 1.46GHz (Single core) / E3845 1.91GHz (Quad core) CPU/ chipset |
| 2. |
MB size 3.5” 145 x 102mm |
| 3. |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| 4. |
Memory: DDR3L 2GB/4GB Onboard |
| 5. |
Features: VGA, HDMI, 4 x IEEE 802.3af PoE Lan, 2 x Mini PCIe, 1 x SIM card socket,1 x MicroSD socket, |
| |
7 x USB, 4 x COM, Wide Range DC-In |
| |
|
|
|
|
|
| Combine PoE IP Surveillance system with Car Power Control function |
| As it comes to the application of transportation PC system, how to deal with unstable voltage and current becomes a critical issue. |
| |
| LEX’s 3I380NM can be upgraded with CPC module built in as an option; the CPC software is developed to protect PC system from damage causing by unexpected voltage and current and makes sure it operates normally. |
| |
 |
|

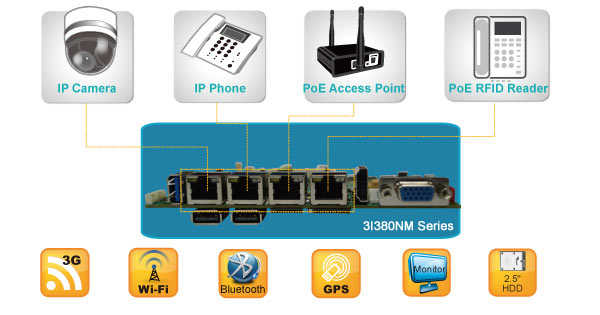

| PoE IP Surveillance system with maximizing performance |
| 3I380NM integrated 4 x 802.3af PoE LAN Port, as an innovative & and highly cost-effective all-in-one PoE/ NVR solution. It supports PoE applications include surveillance monitoring with IP cameras, wireless access points, VoIP phones, ethernet router and etc. |
| |
 |
|
| Intelligent network Appliance with maximizing performance |
| 3I380NM with built-in multiple Giga LAN ports is a high-performce, reliable and flexible platform to develop Network solution as Server, VPN, Firewall, Gateway, NAS, NAD and Enhanced Thin Clients applications. |
| |
 |
|
| Machine Vision Solution with maximizing performance |
| With LEX rugged, compact & industrial design cases, 3I380NM processes the multiple LAN interface for using high-speed cameras at wide range power supplied environments. LEX 3I380NM system develops a completed machine vision solution for production facilities which require the greatest performance in a very limited space. |
| |
 |
