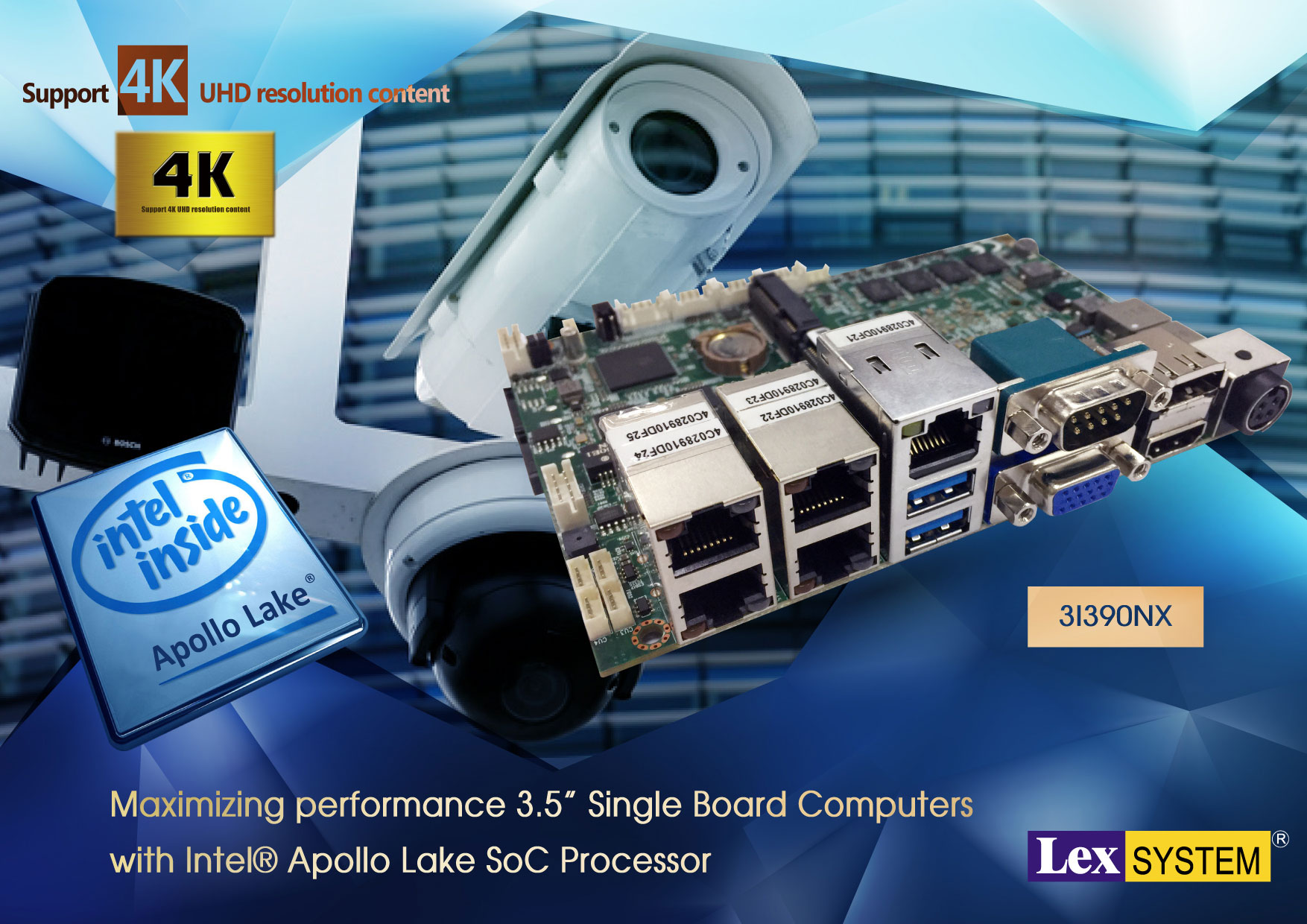

| Maximizing performance 3.5” Single Board Computers with |
| Intel® Apollo Lake SoC Processor |
| LEX Computech released of the next generation 3.5” motherboard with wide range 9~36V DC power input: 3I390NX is based on the latest Intel® Apollo Lake processor, integrated 5 x GbE( 4 x PoE ), 6xUSB , 2x COM Port & VGA, HDMI, DP ,eDP display interface that offers the ideal platform for high performance applications in surveillance, networking, automation, military & industrial facilities. |
|
| |
| |
3I390NX |
Integrated PoE IP and Networking Applications |
| • Intel® Apollo Lake N4200 / N3350 / E3950 SoC CPU / chipset |
| • On Board 4GB DDR3L Memory |
| • Display Interface: HDMI, DP, VGA & eDP |
| • 5 x Intel i211AT GbE LAN (4 x PoE) (optional to i210IT LAN Chipset) |
| • 6 x USB (2 x USB 3.0 + 4 x USB 2.0) , HD Audio, 2 x COM, 2 x Mini PCIe |
| • Wide Range DC IN +9~36V |
| • Wide temperature support of -40°C ~ 70°C |
| • Support 4K UHD resolution content |
 |
|
| |
|
| |
|
| Dimension: 77H x 210W x 125D mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
|
|
| |
|
|
