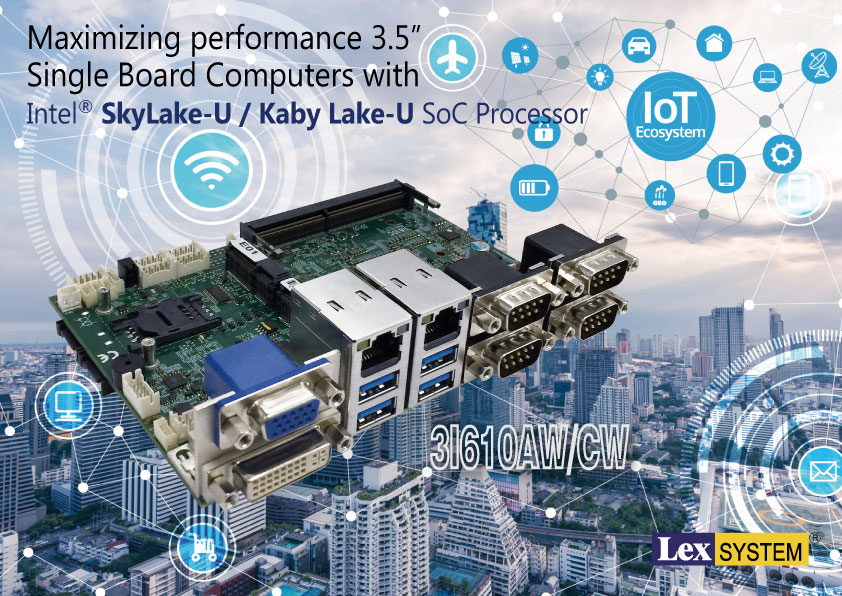

| Maximizing performance 3.5” Single Board Computers with |
| Intel® SkyLake-U / Kaby Lake-U SoC Processor |
| LEX Computech released of the next generation 3.5” motherboard with wide range 9~36V DC power input: 3I610AW/3I610CW is based on the Intel® SkyLake-U / Kaby Lake-U i7/i5/i3/Celeron processor, integrated 2 x GbE LAN, 7 x USB, 6 x COM Port and VGA, DVI display interface that offer the ideal platforms for high performance applications in Healthcare Service, Smart Automation, Point-Of-Information (POI), Self-Services, In-vehicle Infotainment, Industry 4.0 and any compact high-performance Internet of Things (IoT) applications. |
|
 |
 |
|
 |
 |
|
| 3I610AW/CW |
|
| Completed solution for IoT & Industry 4.0 Applications |
| • |

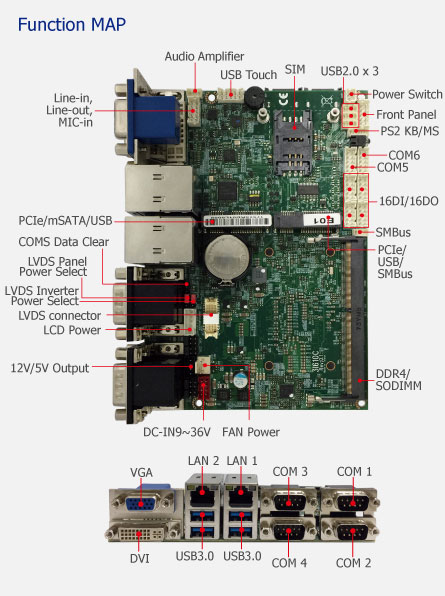

Intel® SkyLake-U / Kaby Lake-U i7 / i5 / i3 / Celeron CPU / chipset |
| • |
1 x DDR4 SODIMM socket, max. up to 16GB |
| • |
Display Interface: VGA & DVI, LVDS
(Touch Screen controller) |
| • |
2 x Intel GbE, 2 x Mini PCIe, 1 x SIM |
| • |
7 x USB (4 x USB 3.0/2.0 + 3 x USB 2.0) |
| • |
6 x RS232 / 422 / 485
(COM 1~4 provide 5V/12V jumper option) |
| • |
Storage: 2 x SATA, 1 x mSATA |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
 |
| Dimension: 77H x 210W x 125D mm |
| • Super Excellent Wide Range Temperature |
| • Robust & Powerful Fanless Embedded solution |
|
| |
 |
|
 |
|
|
|
