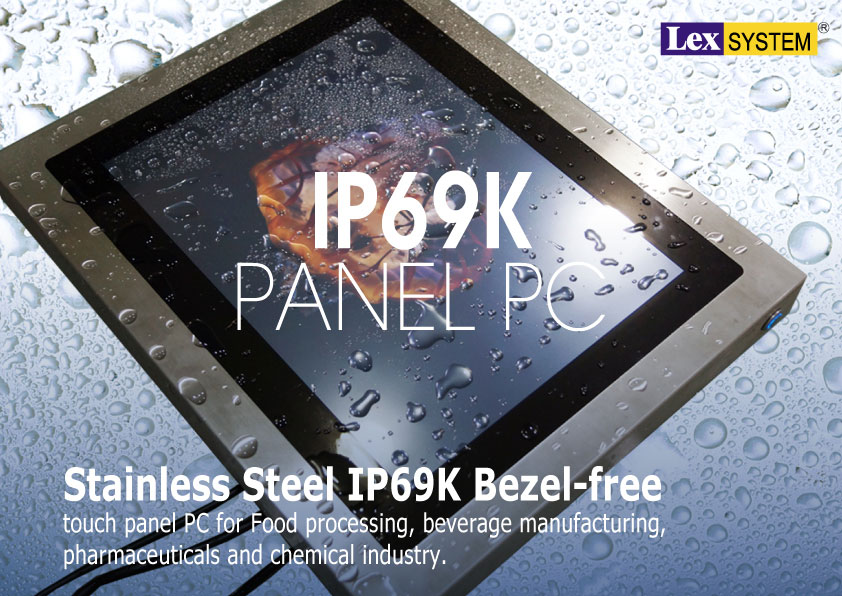

| Stainless Steel IP69K Bezel-free |
touch panel PC for Food processing,
beverage manufacturing,
pharmaceuticals and chemical industry |
LEX series of bezel-free, stainless steel panel pc
(10.4”/15.1”/19”) which are fully IP66/IP67
waterproof & IP69K- rated and are reliable working
in harsh environments against hazards including dust,
dirt, water, oil, grease, bio-fluids and chemicals.
The stainless steel chassis and IP69K waterproofing
illustrates the ability to clean the product via high
temperature and high pressure wash down with water,
harsh detergents and acidic/alkaline disinfectants.
Bezel-free display helps the system to avoid liquid
residues accumulation. LEX IP69K protection stainless
series PPC will satisfy the stringent sanitation
requirements of food processing, pharmaceutical
manufacturing, and chemical factories. |
|
 |
|
 |
| |
Features of LEX bezel-free, Stainless steel IP69K panel pc |
|
| |
| • |
Fully IP66/IP67 & IP69K bezel-free Fanless |
| • |
Intel BayTrail E3825/E3845 Dual Core/Quad Core CPU |
| • |
On board DDR3L/DDR3 2G/4G memory |
| • |
Resistive/Capacitive Touch Screen |
| • |
M12 I/O connectors of LAN, COM, USB, VGA, Power |
| • |
Storage options: mSATA, 1 x2.5” HDD |
| • |
2 x Mini Card PCIe, VESA 100 standard compatible |
| • |
Working Temperature: -20°C~+60°C |
| • |
Wide Range DC-In +9~36V |
| |
 |
|
|
|
 |
 |
| IP66/67 & IP69K Stainless steel Waterproof Solution |
| • |
Resistive/Capacitive Touch Screen panel |
| • |
Bezel free mechanical design |
| • |
10.4" PPC Dimension: 308W x 45H x 259.4D mm |
| • |
15.1" PPC Dimension: 414W x 45H x 346.1D mm |
| • |
19" PPC Dimension: 476.4W x 45H x 404.6D mm |
|
|
|
|
|
 |
 |
LEX 2I385HW SBC is with Intel® Atom™ Bay Trail (Dual Core / Quad Core) processor to give users fast, convenient and simplified solutions for industrial and embedded applications. This platform with all wafer IO design delivers high flexibility toward expanded functions & and also provides user hassle-free solution of integrating the SBC board at various mechanical chassis.
The compact size feature makes this platform well suited for many space-limited and thermally constrained embedded applications, such as Automation Control, Transportation, Military, Aquaculture industry, Oceanographic research and POS/Kiosk solution. |
|
 |
 |
|
 |
 |

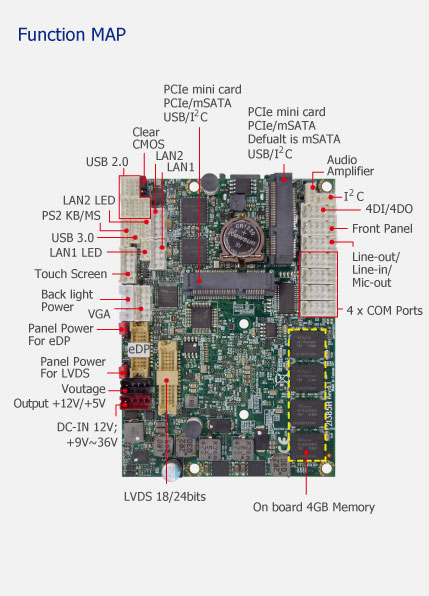

| 2I385HW |
|
| • |
Intel® Bay Trail-I E3825/E3845 |
| • |
MB size Pico-ITX 2.5” 102 x 73mm |
| • |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| • |
Memory: DDR3L 2G/4G Onboard |
| • |
Features: VGA, eDP, LVDS, Touch Screen, |
| |
2 x Intel Gb Ethernet, 2 x Mini PCIe, |
| |
1 x USB 3.2/2.0, 4 x USB2.0, |
| |
4 x COM (RS232-optional to RS485) |
| • |
Working Temperature: -20°C~+70°C |
| • |
Wide Range DC-In +9~36V |
 |
|
|
 |
|
|
|
