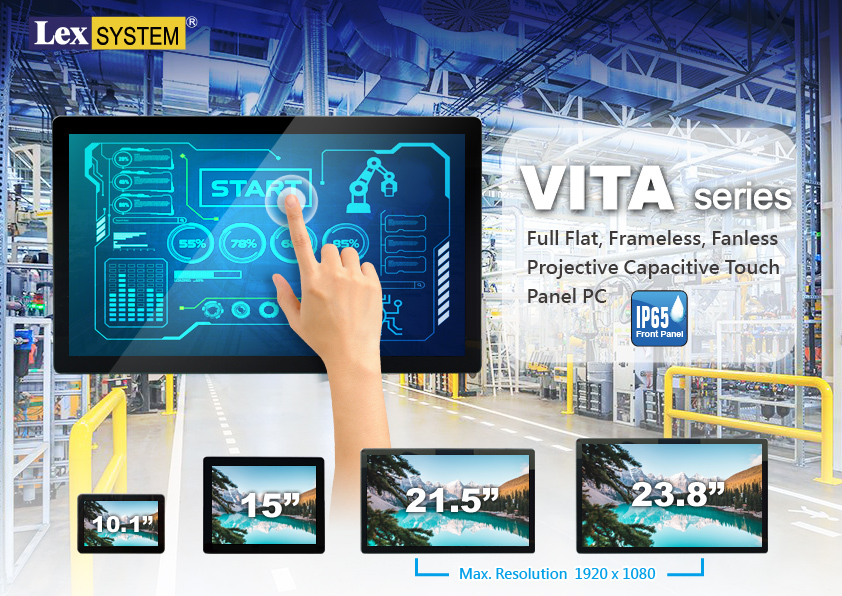

LEX SYSTEM VITA series Panel PC

LEX SYSTEM VITA series Panel PC ( 10.1/15/21.5/23.8 inch) are power by Intel® Bay Trail CPU, plus with frameless display design, rich I/O connection, wide range+9~36V DC input & both VESA / panel mounting offer uses the ideal platforms for demanding applications in versatile industrial automation, factory control, surveillance, smart kiosk, military and communication centers. VITA series panel pc are equipped with projective capacitive touch screen which can be easily controlled with fingers and provides great protection from scratches, and the edge design reduces the dap and prevents accumulation of dust and liquid.

Main Features
Slim, compact and front panel full flat design
10.1" ,15" ,21.5" ,23.8" industrial grade LCD panel & projective capacitive touch panel integrated Max 178 degree wide-view angle in frameless design
Fanless system with Intel® Atom™ E3845 / E3825, Celeron® J1900 processor
Rich I/Os : 4 COMs , 4 USB, dual Intel® LAN, VGA & DVI
Wide Range +9~36V DC Input
Dual mini PCIe expansion for wireless communication
Fanless housing with front IP65 compliance and up to 50 degree high temperature


  VITA PPC + 3I385AW
VITA 10.1"
260.67W x 183.37D x 70.8H mm
VITA 15"
364.03W x 290.93D x 72.8H mm
VITA 21.5"
519.91W x 314.91D x 73.25H mm
VITA 23.8"
575.06W x 347D x 73.8H mm

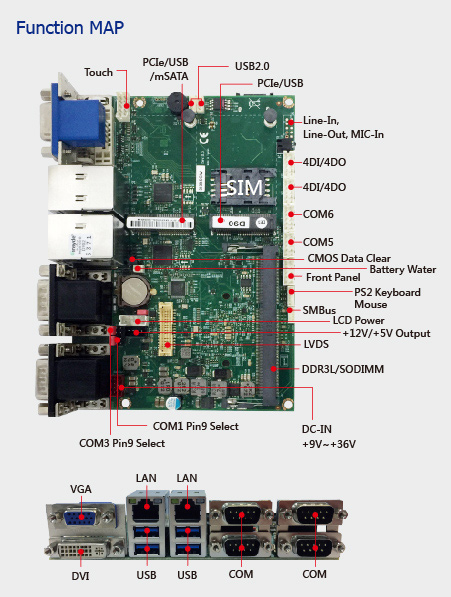

3I385AW/CW

Completed solution for IoT & Industry 4.0 Applications

Intel® Atom™ E3845 / E3825, Celeron® J1900 processor
1 x DDR3L SODIMM socket, max. 8GB
Display Interface: VGA & DVI
2 x Intel GbE, 2 x Mini PCIe, 1 x SIM
4 x USB 3.0, 6 x RS232/422/485
Wide Range DC IN +9~36V
Wide temperature support of -20°C ~ 70°C
