IP65 Panel PC

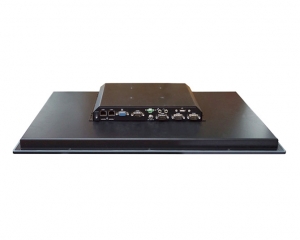

STAR 21.5" PPC + 2I385CW
21.5" Fanless Panel PC with Intel® Atom™ Bay Trail Processor
Features

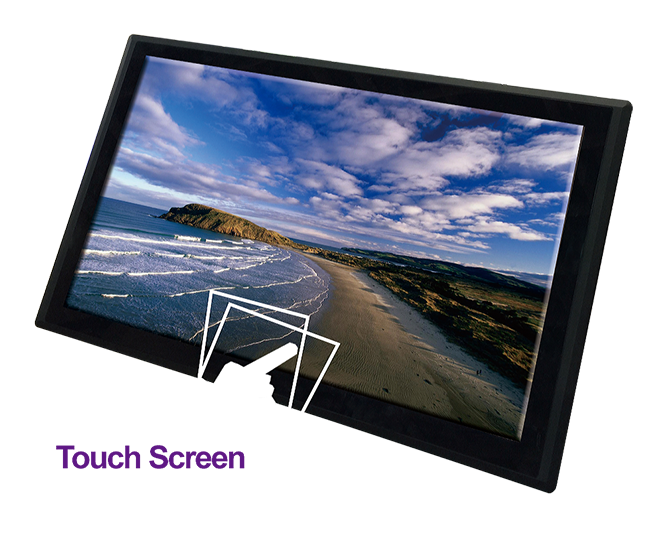

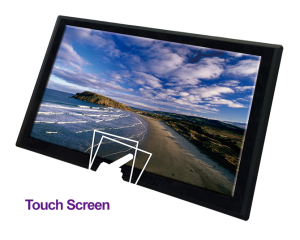

- 21.5" LCD with capacitive touch screen
- Intel® Atom™ Bay Trail J1900 / E3825 / E3845 SoC
- DDR3L 2GB / 4GB on board

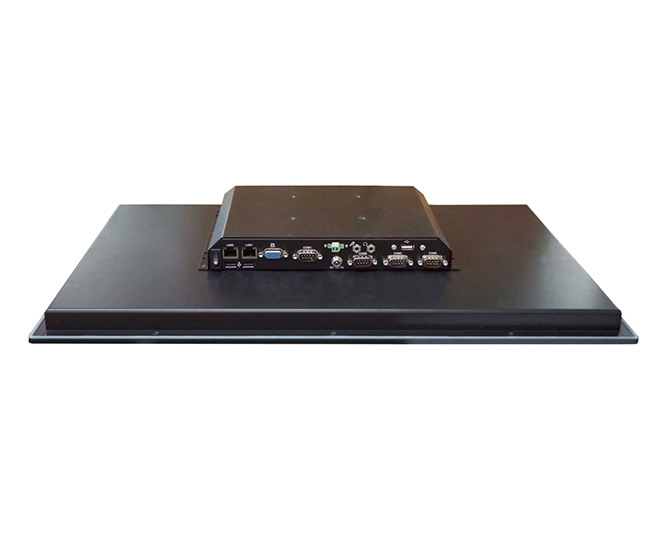

- 2 x GbE, 4 x COM, VGA, 3 x USB, Audio
- Wide Range 9~36V DC input
- Aluminum housing
STAR 21.5" PPC + 2I385CW Datasheet
STAR 21-5-2I385CW_CE
STAR 21-5-2I385CW_FCC
STAR 21-5-2I385CW-3I380CW_LVD
MODEL | STAR 21.5" PPC | |
---|---|---|
System Dimension(WxDxH) | 548W x 328.6D x 64H mm | |
Weight(Incl.M/B) | 5.19 kg | |
Motherboard | 2I385CW | |
CPU | Intel® Atom™ Bay Trail J1900 / E3825 / E3845 | |
Chipset | Intel Bay Trail SoC | |
Memory | DDR3L 2GB / 4GB on board | |
Storage | mSATA, HDD / SSD* | |
Expansion slots | 1 x Full-size Mini PCIe (PCIe / USB / mSATA) 1 x Half-size Mini PCIe (USB / mSATA) |
|
M12 I /O ports (Selectable) | Network | 2 x Intel GbE |
USB | 3 x USB 2.0 | |
Serial ports | 4 x COM | |
Display | 1 x VGA | |
Audio | Lin-out / Mic-in | |
Optional Modules & Function |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS *SATA Kit, *VESA Mount Kit, * External power adapter |
|
Power | DC input : +9~36V AC input : External adapter 100 / 240V, AC-DC (optional) |
|
Display Type | 21.5 inch 16:9 | |
Max. Resolution | 1920 x 1080 | |
Viewing Angle | 80(U) 80(D) 85(R) 85(L) | |
Luminance (cd/m2) | 250 | |
Contrast Ratio | 1000:1 | |
Touch Type | Capacitive Touch Screen | |
Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD |
|
Storage Temp. | -20°C to +70°C | |
Relative Humidity | 95% @ 40°C, non-condensing | |
IP Rating | Front panel IP65 Compliant | |
OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
