| Battery Charger function & Flexible IO expansion |
| with small size Intel® Bay Trail Platform |
| LEX launches 2I385BW SBC with Intel® Bay Trail SoC processor to give users fast, convenient and simplified solutions for industrial and embedded applications. The battery charger feature makes this platform well suited for many reliability and mobility constrained embedded applications, such as Automation Control, Transportation, ATM machines, medical / hospital station and warehouse solution. |
|
 |
 |
|
 |
 |
|
| 2I385BW |
|
| Highly mobility solution for Industry 4.0 Applications |
| • |

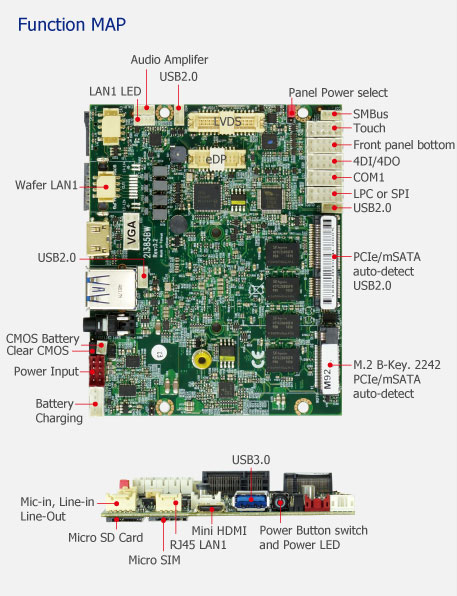

Intel® Bay Trail E3825 / E3845 CPU / chipset |
| • |
On Board DDR3L 2GB / 4GB |
| • |
Display Interface: Mini HDMI, VGA & LVDS or eDP |
| • |
1 x Intel (I210 IT) GbE, 1 x Mini PCIe,
1 x Micro SIM, 1 x Micro SD |
| • |
3 x USB (1 x USB 3.0/2.0 + 2 x USB 2.0), HD Audio,
1 x COM (RS232/422/485) |
| • |
4DI/4DO, 1 x M.2 B Key |
| • |

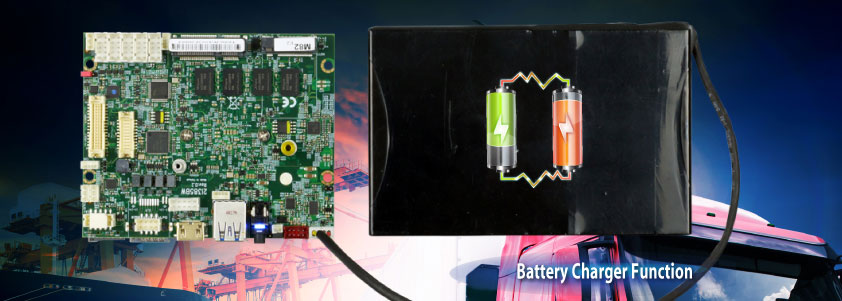

Battery Charger function |
| • |
Wide Range +12~36V (Typical 12V / 24V) |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
 |

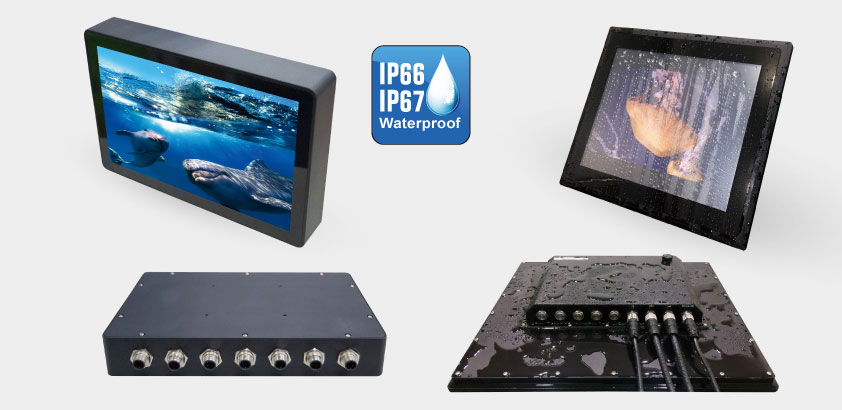

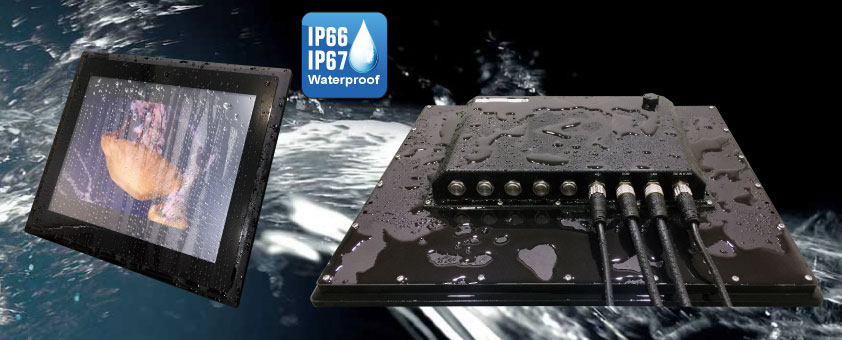

| Waterproof solution with |
| Intel® Bay Trail E3825/E3845 Platform |

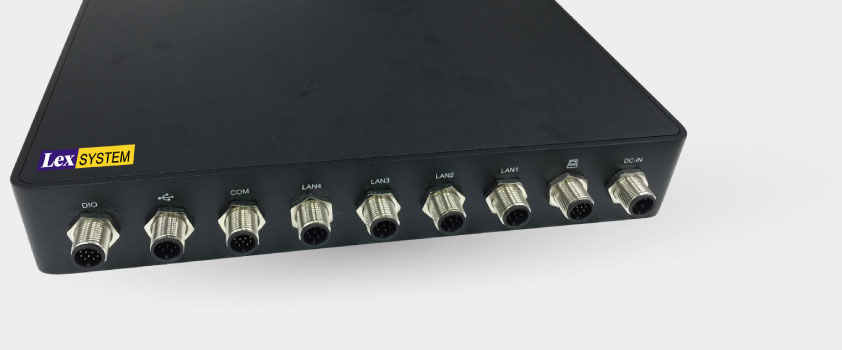

| IP67 waterproof solution is equipped with ultra compact 2I385BW with excellent heat-dissipating function and fanless design, which is capable of supporting waterproof connectors (M12 type) with function of VGA, USB, Serial Port and LAN. |
|
 |
 |
|
|
| Dimension: 250W x 168D x 40H |
| • Compact size Fanless Solution |
| • IP67 waterproof solution |
|
| |
 |
|
 |
|
|
|
|
| • Touch Screen panel |
| • Bezel free mechanical design |
|
|
| |
|
|
|
