| Industrial Ethernet Appliance 3.5” Single Board Computer with |
| Intel® Skylake-U / Kaby Lake-U SoC Processor |
| LEX Computech released of the next generation 3.5” motherboard with wide range 9~36V DC power input & fantastic flexibility and integration with optional eIO (PCIe + USB) expansion Function: 3I610DW is based on the Intel®
Skylake-U / Kaby Lake-U i7/i5/i3/Celeron processor, integrated 5 x GbE LAN, 7 x USB, 2 x COM Port and HDMI, DP display interface that offer the ideal platforms for high performance applications in Networking, Smart Automation, Point-Of-Information (POI), Self-Services, In-vehicle, Industry 4.0 and any compact high-performance Internet of Things (IoT) applications. |
|
 |
 |
|
 |
 |
|

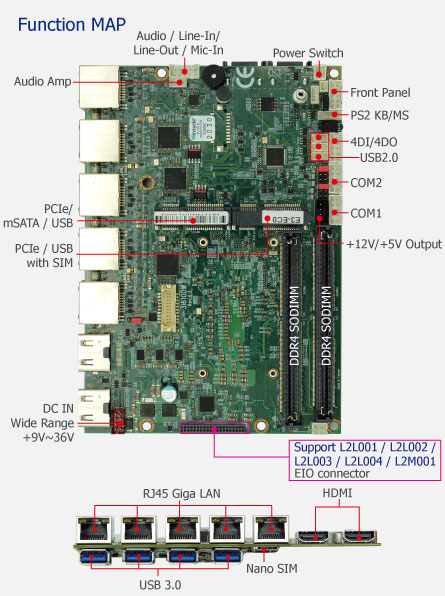

| 3I610DW |
|
| Complete solution for Networking & IoT Applications |
| • |
Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 / Celeron CPU / chipset |
| • |
2 x DDR4 SODIMM socket, max. up to 32GB |
| • |
Display Interface: 2 x HDMI, eDP |
| • |
5 x Intel (4 x I210 IT + 1 x I219LM) GbE,
2 x Mini PCIe, 1 x Nano SIM |
| • |
7 x USB (4 x USB 3.0/2.0 + 3 x USB 2.0) |
| • |
HD Audio |
| • |
2 x COM (RS232/422/485) |
| • |
4DI/4DO, HD audio, Lex eIO: PCIe + USB |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 70°C |
| • |
TPM 2.0 / vPro |
 |
|
|
 |
|
|
|

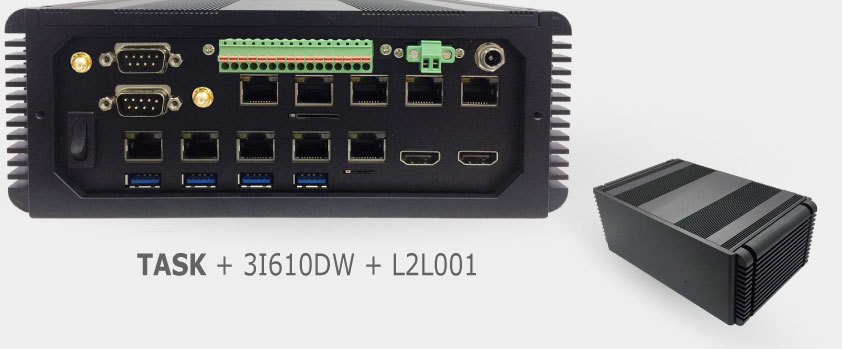

| Dimension: 77H x 210W x 125D mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
 |
|
 |
|
|
|

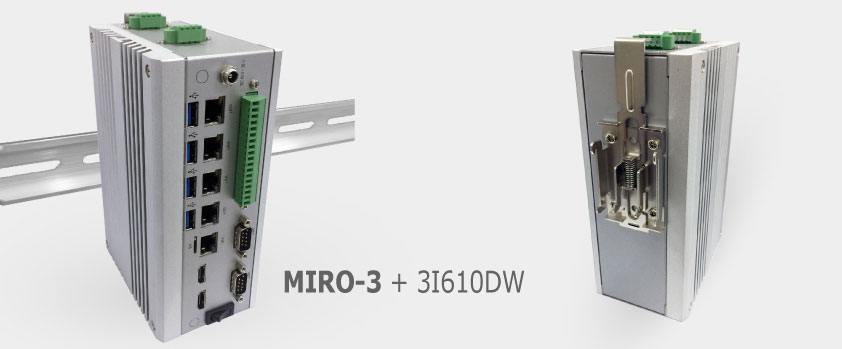

| Dimension: 72.9H x 178W x 116D mm |
| • DIN Rail embedded System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
|
|
| |
|
|
| LEX eIO extension card: |
|
|
|
|
|
|
|
| • |

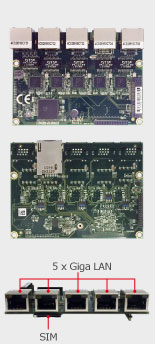

5 PCIe Giga LAN |
| • |
Intel I210-IT / I211-AT |
| • |
1 Mini PCI Express socket. |
| • |
USB and PCIe
(Option, share fifth LAN port) |
| • |
SIM-Push-Push |
| • |
Dimension: 102 x 73mm |
|
| • |

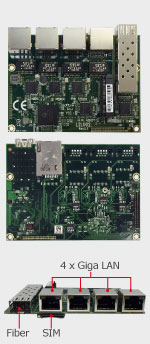

4 PCIe Giga LAN |
| • |
Intel I210-IT / I211-AT |
| • |
1 port 1000Base-SX Fiber. |
| • |
1 Mini PCI Express socket. |
| • |
USB and PCIe
(Option, share Fiber LAN port) |
| • |
SIM-Push-Push |
| • |
Dimension: 102 x 73mm |
|
| • |

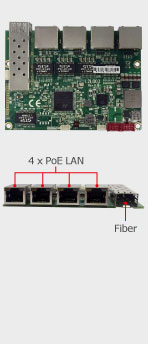

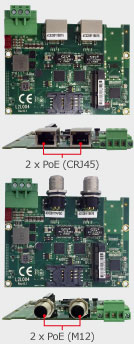

4 x PoE Giga LAN,
1 x Fiber LAN |
| • |
Power: Wide Range +9V ~+36V |
| • |
Dimension: 102mm x 73 mm |
|
| • |
2 x PoE Giga LAN M12 type |
| • |
1 x Fiber LAN
(Optional to 1 x PoE LAN) |
| • |
1 x Full Size Mini card USB interface |
| • |
1 x SIM socket |
| • |
Power: Wide Range +9V ~+36V |
| • |
Dimension: 102mm x 73 mm |
|
| • |

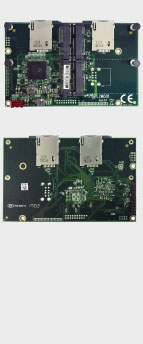

4 Mini PCI Express socket
(full size). |
| • |
Support USB and PCIe,
SIM-Push-Push |
| • |
For option: 2 x USB 3.0 |
| • |
Dimension: 117 x 73 mm |
|
|
|
|
