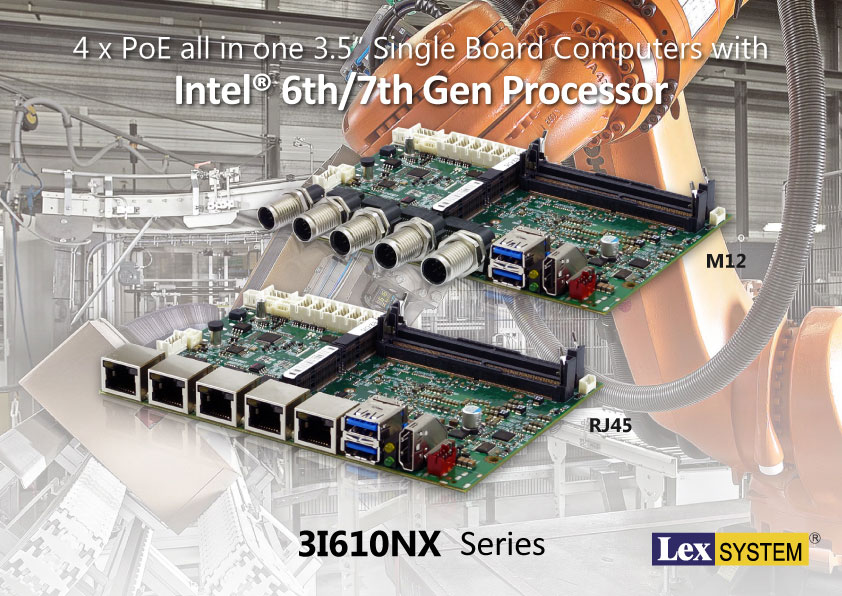

| 4 x PoE all in one 3.5” Single Board Computers with |
| Intel® 6th/7th Gen Processor |
| LEX Computech released of the next generation 3.5” motherboard with wide range 9~36V DC power input: 3I610NX is based on Intel® 6th/7th Skylake-U / Kaby Lake-U processor, integrated 5 x GbE (4 x PoE), 8 x USB , 2 x COM Port & VGA, HDMI display interface that offers the ideal platform for high performance applications in surveillance, networking, automation, military & machine vision applications. |
|
 |
 |
|
 |
 |
|

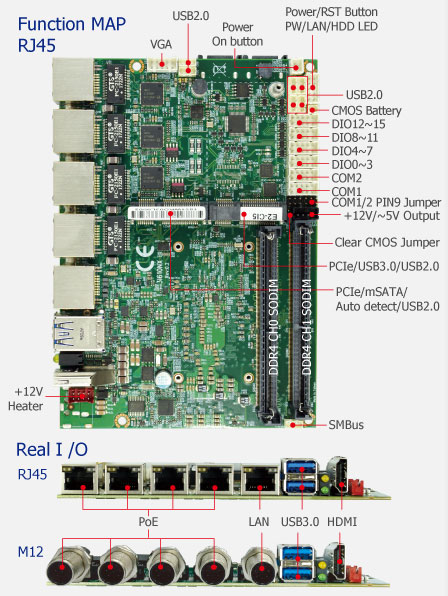

| 3I610NX |
|
| Integrated PoE IP and Networking Applications |
| • |
Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 / Celeron
CPU / chipset |
| • |
2 x DDR4 2133 Mhz SODIMM, Max up to 32 GB |
| • |
Display Interface: HDMI & VGA |
| • |
5 x Intel GbE LAN (4 x PoE) |
| • |
8 x USB (2 x USB 3.0 + 6 x USB 2.0) , SIM socket,
2 x Mini PCIe |
| • |
2 x COM (RS232/422/485), 16 x DI / 16 x DO |
| • |
Wide Range DC IN +9~36V |
| • |
Wide temperature support of -20°C ~ 60°C |
| • |
Support 4K UHD resolution content |
 |
|
|
 |
|
|
|
| Dimension: 77H x 210W x 125D mm |
| • Super Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
|
| |
 |
|
 |
|
|
|
