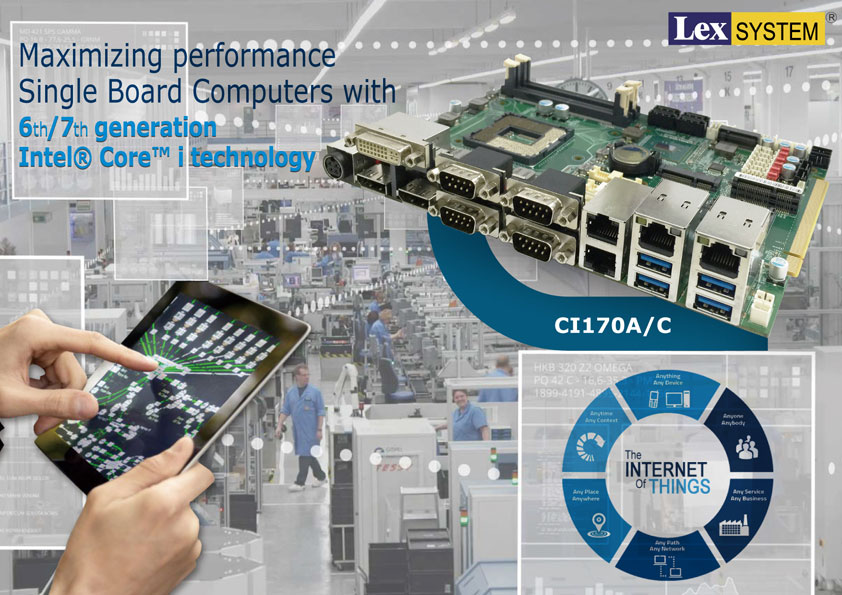

| Maximizing performance Single Board Computers with |
| 6th/7th generation Intel® Core™ i technology |
| LEX Computech released CI170A/C series motherboard supporting
the 6th/7th Generation Intel® Core™ processor with Intel Q170 chipset.
CI170A/C is specifically designed for customers who need high-level
processing and graphics performance in various application sectors. |
| Its standout features include 10 x RS-232/422/485 serial ports,
5 x 10/100/1000 Mbps Ethernet ports, 4 x USB 3.0, 5 x USB 2.0 ports,
DVI, LVDS, HDMI & DisPlay ports that offer the ideal platform for high
performance applications in Digital Signage, medical devices, POS/Kiosk,
gaming machines, automation, military & industrial facilities. |
|
| |
| |
CI170A/C |
|
| Completed solution for IoT & Industry 4.0 Applications |
| • 6th/7th generation Intel® Core™ I processor + Intel Q170 |
| • DDR4 SO-DIMM x 2, Max up to 32GB |
| • Display: DP, HDMI, DVI & LVDS or eDP |
• 4 x Intel GbE i210IT, 1 x Intel GbE i219-LM,
4 x USB 3.0 & 2.0 ; 5 x USB 2.0,
Line-out, Mic-in, 10 x COM (RS232/422/485) |
• 2 x Mini PCIe, 1 x PCIe 16X, 2 x SIM card socket,
1 x M.2 (B key SATA, type 2242) |
| • Support 4K UHD resolution content |
 |
|
| |
| |
|
| Dimension: 85H x 300W x 200D mm |
| • Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
| • Support 1x PCIe Slot expansion |
|
|
|
| |
|
| |
| TINO Series |
| Dimension: 110H x 268W x 182D mm |
| • Excellent heat-dissipating System |
| • Robust & Powerful Fanless Embedded solution |
| • Support 2 x PCIe Slot & 10 x Serial Port expansion |
|
|
| |
|
| |
|
| Dimension: 44.3H x483.7W x 398.5D mm |
| • Server Grade System |
| • Robust & Powerful Fanless Embedded solution |
| • Support 2 x PCIe Slot & 4 x Mobile Rack HDD expansion |
|
|
|
| |
|
| |
| E244P |
| 4 x PoE 802.3 AF/AT Expansion Card |
|
| • Support PCIe x 4 |
| • 4 x Intel I210 (IT) LAN chip |
| • PoE PSE Compliant, IEEE 802.3 af/at |
| • Dimension: 120 x 101 mm |
|
|
| |
|
| |
| E214P |
| 4 x PoE 802.3 AF/AT Expansion Card |
|
| • Support PCIe x 1 |
| • 4 x Intel I210 (IT) LAN chip |
| • PoE PSE Compliant, IEEE 802.3 af/at |
| • Dimension: 120 x 101 mm |
|
|
| |
|
| |
|
| • Wide Range Power board & power supply |
| • Input Voltage: 18V~75V, 9V~36V or 16.6V~154V |
| • Output: 4 x +12V DC output (Optional to 24V DC output) |
| • Operating base plate temperature -40ºC to +100ºC |
| • Isolation voltage: 3000V |
| • Power: 200W |
| • Dimension: 102 x 73 mm (power board size) |
|
|
|
|
