| LEX PM series CPU boards |
| flexible expansions via configurable PCIe extension cards |

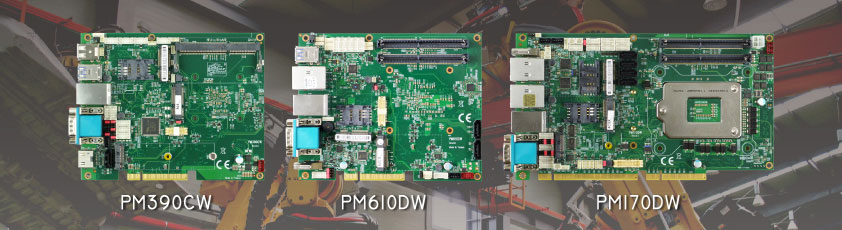

| LEX Computech released of the innovative PM series CPU boards which are with fantastic flexibility and integration with PCI Express expansion function. PM170DW & PM610DW are based on the Intel® 6th/7th CPU; PM390CW is based on Intel Apollo Lake processors, integrated 2~5 x GbE LAN, 4 x USB, 2~5 x COM Port, VGA, HDMI & LVDS (eDP) display interface that offer the ideal platforms for high performance applications. PM series's highly configurability (PCIe x 16, PCIe x 8, PCIe x 4 & PCIe x 1 extension) provide integrators an ideal solution at combination Graphics processing unit (GPU card), Networking (PoE / LAN expansion module), USB connection module & CANBus modules. |
|
 |
 |
|
 |
 |
|

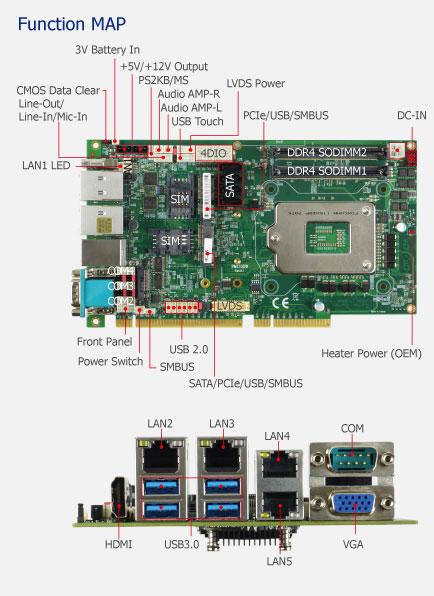

| PM170DW |
|
LEX CPU board with
Intel Skylake-S / Kaby Lake-S CPU platform |
| • |
Embedded Intel® Skylake-S / Kaby Lake-S i7 /i5 /i3 / Celeron CPU |
| • |
Intel® Q170 chipset |
| • |
2 x DDR4 SODIMM socket, Max up to 32GB |
| • |
Multiple Independent display: HDMI, VGA & LVDS |
| • |
5 x Intel GbE LAN, 4 x USB 3.0, 6 x USB 2.0, 4 x COM,
Touch Screen, 1 x M.2 |
| • |
2 x Mini PCIe, 2 x SIM card socket, HD Audio,
16DI / 16DO, vPro@ TPM2.0 |
| • |
PCIe x 16 / x 8 golden finger
(PCIe x 16 + PCIe x 4 Signal) |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
 |
|
|
 |
|
|
 |
 |
|
| PM610DW |
|

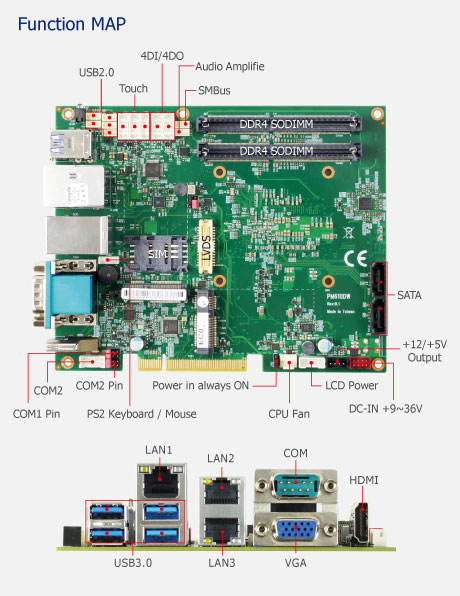

LEX CPU board with
Intel Skylake-U / Kaby Lake-U CPU platform |
| • |
Embedded Intel® SkyLake-U i7 /i5 /i3 / Celeron CPU / chipset |
| • |
2 x DDR4 SODIMM socket, Max up to 32GB |
| • |
Multiple Independent display: HDMI, VGA & LVDS |
| • |
3 x Intel GbE LAN, 4 x USB 3.0, 3 x USB 2.0,
2 x COM,
Touch Screen |
| • |
2 x Mini PCIe, 1 x SIM card socket, HD Audio,
8DI/ 8DO, vPro@ TPM2.0 |
| • |
PCIe x 8 golden finger (PCIe x 4 + PCIe x 1 Signal) |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
|
|
|
| |
|
|
 |
 |
|

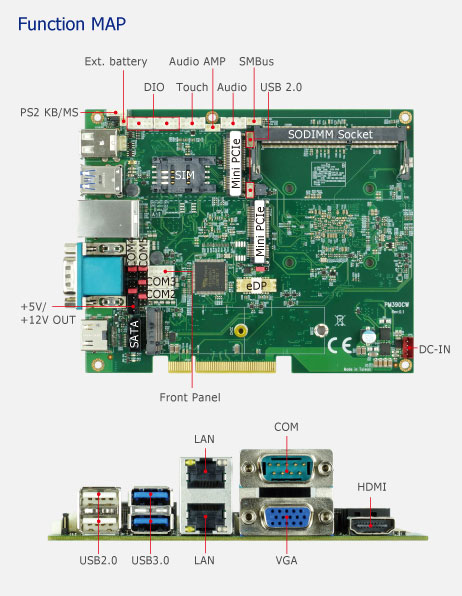

| PM390CW |
|
| LEX CPU board with Intel Apollo Lake CPU platform |
| • |
Intel® Apollo Lake N4200 / N3350 / E3950 SoC CPU / chipset |
| • |
1 x DDR3L 1600 Mhz SODIMM, max up to 8GB |
| • |
Multiple Independent display: HDMI, VGA & eDP |
| • |
2 x Intel GbE LAN, 2 x USB 3.0, 3 x USB 2.0,
5 x COM, 1 x M.2 |
| • |
2 x Mini PCIe, 1 x SIM card socket, HD Audio,
8DI / 8DO, Touch Screen |
| • |
PCIe x 8 golden finger (PCIe x 4 + PCIe x 1 Signal) |
| • |
Wide temperature support of -20°C ~ 70°C |
| |
|
|
|
| |
|
|
 |
 |
 |
| |

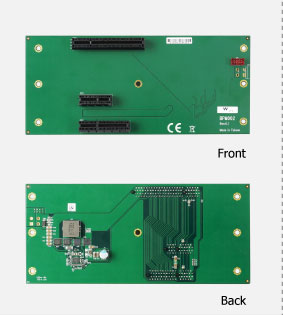

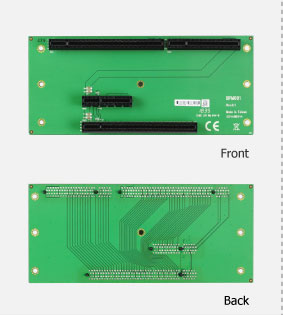

| LEX Backplanes |
|
| • |
2-slot: PCIe x 16 + PCIe x 4 |
| |
(PCIe x 16 / x 8 to PCIe x 16 + PCIe x 4) |
| • |
work with PM170DW |
|
|
|
 |
| |
| LEX Backplanes |
|
| • |
2-slot: PCIe x 1 + PCIe x 4 |
| |
(PCIe x 8 to PCIe x 1 +
PCIe x 4) |
| • |
work with PM610DW / PM390CW |
|
|
|
|
| |

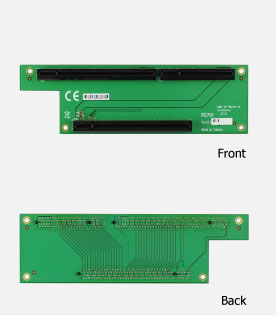

| Riser Card |
|
| • |
1-slot: PCIe x 16 |
| • |
work with PM170DW |
|
|
|
 |
|

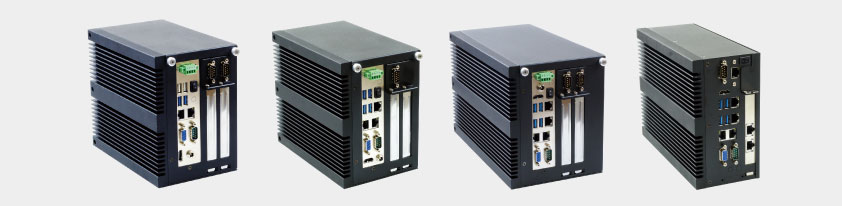

LEX APOLLO configurable system provides full spectrum mechanical solutions
(Optional 2/4 * Mobile Rack or CFast by OEM) & Flexibility expand function
(PCIe x 16, PCIe x 8, PCIe x 4 & PCIe x 1 Slots) for optional 4~8 PoE / LAN,
WiFi, 4G LTE, GPS, Isolated COM, CANBus at less cabling, reduced assembly,
complexity and labor cost and all feature IO options to fulfill vertical applications
for Machine Vision, Motion Control, gaming, automation, military & industrial facilities. |
|
 |
| |
|
|
| • Configurable expansion solution |
| • Robust & Powerful Embedded solution |
|
| |
 |
|
 |
|
|
|
