Pico Express® the best alternative to COM Express solution |
| |
• More reliable & flexible design
• Save Time & effort of developing extension I/O interfaces
• Provide various customized systems quickly & easily |
|
 |

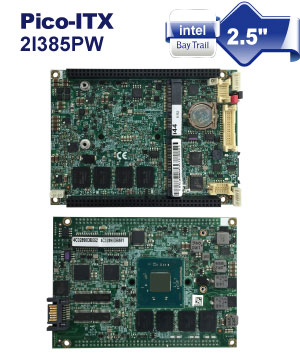

| 2I385PW Spec: |
| 1. |
Intel® Bay Trail-I E3825 1.33GHz (Dual core) /
E3845 1.91GHz (Quad core) CPU/ chipset |
| 2. |
MB size Pico-ITX 2.5” 105 x 73mm |
| 3. |
Graphic: Intel Bay Trail-I Integrated Graphics chipset |
| 4. |
Memory: DDR3L 2G/4G Onboard |
| 5. |
Features : |
| |
VGA, LVDS, HDMI, Touch Screen,
2 x Intel Gb Ethernet, 2 x Mini PCIe,
1 x USB 3.0/2.0, 5 x USB 2.0,
4 x COM, 1 x PCIe,
Wide Range +9~36V DC-in,
PICO Express® 2 x 80-pin connector |
| 6. |
Operation Temperature: -20°C ~ 70°C |
 |
|
| |
 |

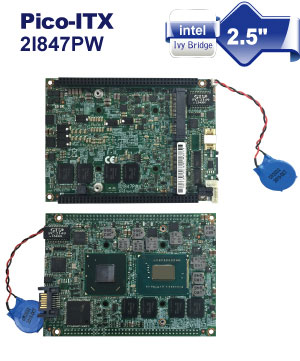

| 2I847PW Spec: |
| 1. |
Intel® Intel Ivy Bridge Celeron 1047UE 1.4 GHz;
Support i3/i7 CPU |
| 2. |
MB size Pico-ITX 2.5” 105 x 73mm |
| 3. |
Graphic: Intel Panther Point (PCH) HM76 |
| 4. |
Memory: DDR3 2G/4G Onboard |
| 5. |
Features : |
| |
VGA, HDMI, 2 x Intel Gb Ethernet,
1 x USB 3.0/2.0, 5 x USB 2.0,
2 x Mini PCIe, 2 x COM, 1 x PCIe,
Wide Range +9~36V DC-in,
PICO Express® 2 x 80-pin connector |
| 6. |
Operation Temperature: -20°C ~ 70°C |
|
|
|
|
| ◆ |
Pico Express® Extension Evaluation Board |
| |
LEX DK series extension evaluation boards help customers evaluate the features and performance of Pico Express® M/Bs that demonstrate optimized and tested solutions for their application design. In addition to the evaluation, design and testing purposes, these boards help customers to expedite their carrier board development. |
|
 |

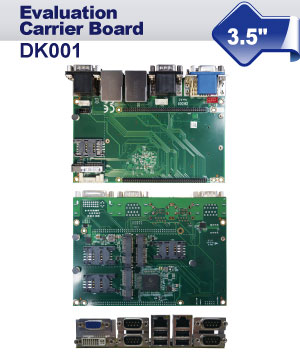

| DK001 Spec: |
| • |
Form Factor: 3.5” (145 x 102 mm) |
| • |
4 x Mini PCIe |
| • |
4 x SIM card holder |
| • |
1 x USB 3.0/2.0, 5 x USB 2.0 |
| • |
1 x DVI-D, 1 x VGA |
| • |
2 x RJ45 |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
| |
 |

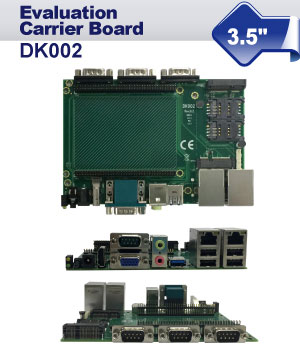

| DK002 Spec: |
| • |
Form Factor: 3.5” (145 x 102 mm) |
| • |
2 x Mini PCIe |
| • |
2 x SIM card holder |
| • |
1 x USB 3.0/2.0, 4 x USB 2.0 |
| • |
1 x HDMI, 1 x VGA |
| • |
2 x RJ45 |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
| |
 |

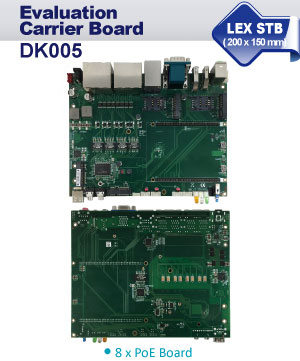

| DK005 Spec: |
| • |
Form Factor: LEX STB (200 x 150 mm) |
| • |
4 x Mini PCIe |
| • |
2 x SIM card holder |
| • |
1 x USB 3.0/2.0, 4 x USB 2.0 |
| • |
1 xHDMI, 1 x VGA |
| • |
9 x RJ45 (1 x GbE+8 x PoE) |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
| |
 |

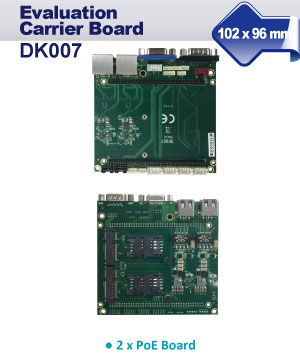

| DK007 Spec: |
| • |
Form Factor: 102 x 97 mm |
| • |
2 x Mini PCIe |
| • |
2 x SIM card holder |
| • |
1 x USB 3.0/2.0, 5 x USB 2.0,
(2 x USB share with Mini-PCIe) |
| • |
1 x VGA |
| • |
2 x RJ45 (PoE) |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
| |
|

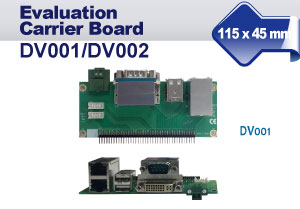

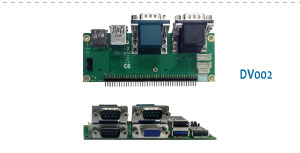

| DV001 / DV002 Spec: |
| • |
Form Factor: 115 x 45 mm |
| • |
1 x Mini PCIe |
| • |
1 x SIM card holder |
| • |
1 x USB 3.0/2.0, 4 x USB 2.0 |
| • |
1 x DVI-D, 1 x VGA |
| • |
2 x RJ45 |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
| |
 |

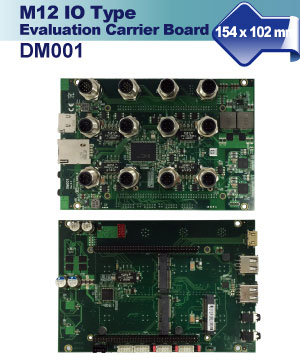

| DM001 Spec: |
| • |
Form Factor: 154 x 102 mm |
| • |
3 x Mini PCIe |
| • |
2 x USB 2.0 |
| • |
1 x Mirco SD card (push/push) |
| • |
1 x VGA (M12) |
| • |
1 x SIM card (push/push) |
| • |
1 x mini HDMI |
| • |
1 x Ethernet (M12) |
| • |
4 x COM (1 x M12 , 3 x wafer)
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
| • |
8 x 10/100 Mbps.PoE (M12) |
|
|
| |
 |

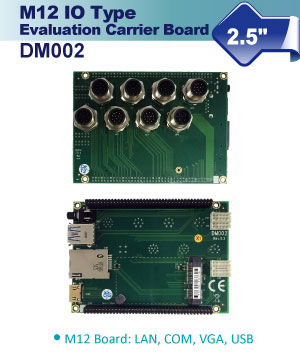

| DM002 Spec: |
| • |
Form Factor: Pico-ITX 2.5" (102 x 73 mm) |
| • |
1 x Mini PCIe |
| • |
1 x SIM card (push/push) |
| • |
1 x USB 3.0/2.0 |
| • |
1 x VGA (M12) |
| • |
4 x USB 2.0 (2 x M12) |
| • |
1 x mini HDMI |
| • |
2 x Ethernet (M12) |
| • |
4 x COM (2 x M12 , 2 x wafer)
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
| |
 |

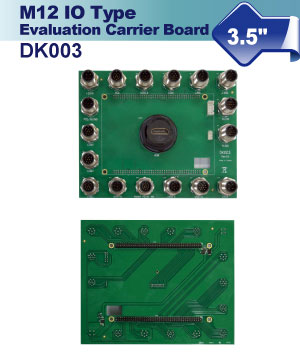

| DK003 Spec: |
| • |
Form Factor: 3.5” (145 x 102 mm) |
| • |
1 x USB 3.0/2.0, 6 x USB 2.0 |
| • |
1 x HDMI, 1 x VGA |
| • |
2 x Ethernet |
| • |
4 x COM (w/2I385PW) ; 2 x COM (w/2I847PW) |
|
|
|
|
| ◆ |

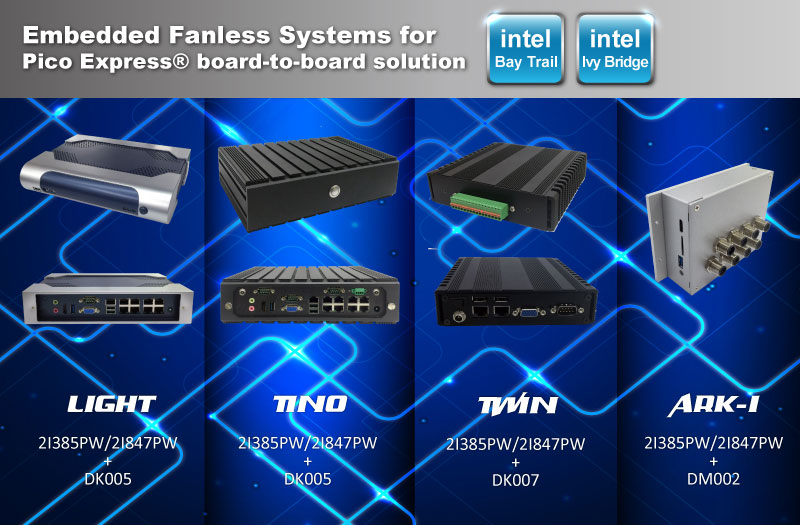

Pico Express® Extension Chassis |
| |
LEX provides system solution for Pico Express® SBC & DK series boards. With different mechanical design chassis, system integrators will have the benefits of cableless & less development time and cost via applying the solution to different applications such as Transportation, Factory Automation, Digital Signage and Intelligent Surveillance systems. |
|
 |
|
|
|
