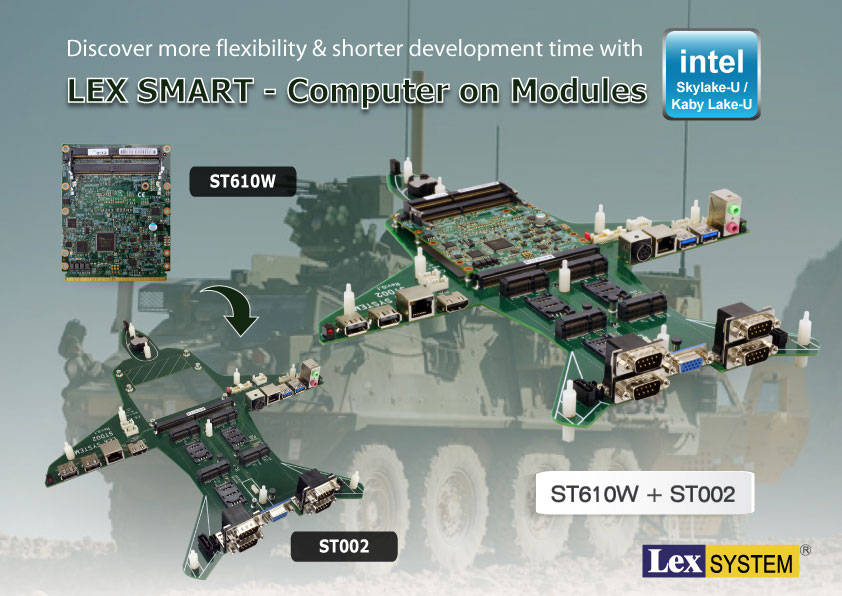

| Discover more flexibility & shorter development time with |
| LEX SMART - Computer on Modules |
LEX launches ST610W Computer on Modules with Intel® Skylake-U / Kaby Lake-U i3/i5/i7, Celeron processor to give users flexible, reliable and cableless solution for configuring the customized system in the shortest time. By connecting with MXM-3 connectors (314-pin expansion), users can adopt a carrier board with suitable I/O interfaces.
With more flexible and complete functions than COM Express® and SMARC 2.0 options,
LEX's SMART-ST610W provides customer the maximize potential with their carrier boars to
build their own compact, high-performance system designed in a shortened development
time. ST610W’s design is also the ideal solution for embedded application developers to
get up and running quickly on their customized carrier boards for different OEM/ODM projects. |
|
 |
 |
|
 |
 |
More functions than COMe and SMARC 2.0
Save your time and money to develop carrier board |
|

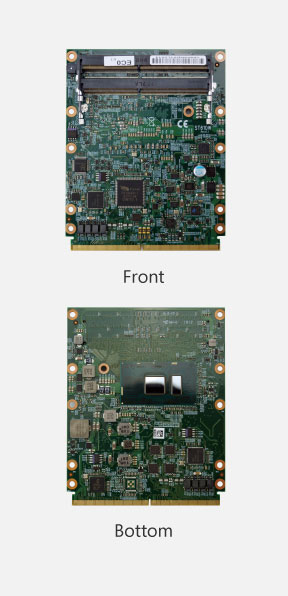

| ST610W |
| DDR4 SO-DIMM, max up to 32GB |
HD Audio with Amplifier |
| VGA, HDMI, LVDS 24 bit / 2CH |
9~36V DC-Input |
| Resister Touch Screen Controller |
5V, 12V DC-Output |
| 2 x Intel GbE i210 LAN |
LPC |
| 2 x USB 3.0, 5 x USB 2.0 |
Watch Dog Timer 0-255 second |
| 4 x COM RS232 / 422 / 485 Auto |
Dimension: 110 x 88 mm |
| 4 x PCIe |
Operation Temp.: -20°C~70°C |
| 2 x SATA |
Operation Humidity:
5~95%, non-condensing |
| 8 x DI / 8 x DO |
|
|
|
|
|
|
|
 |
 |

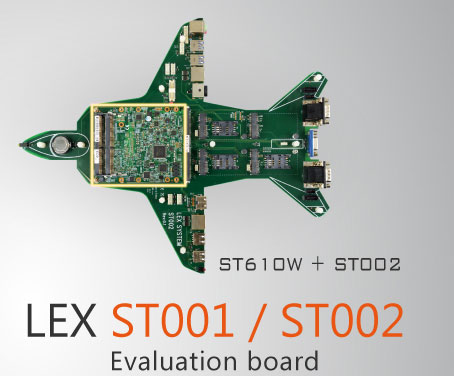

| LEX ST001/ST002 evaluation board help customers evaluate
the features and performance of ST610W Computer on Module.
The unique appearance of ST002 proves that we can provide
customized carrier board services according to customers'
applications. In addition to the evaluation, design and testing
purposes, ST001/ST002 helps customers to expedite their
carrier board development. |
|
|
 |
|
 |
 |
|

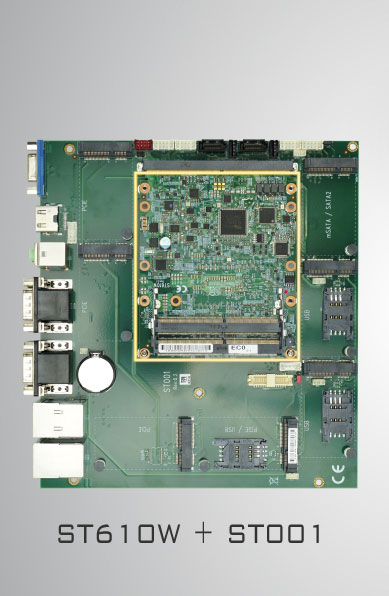

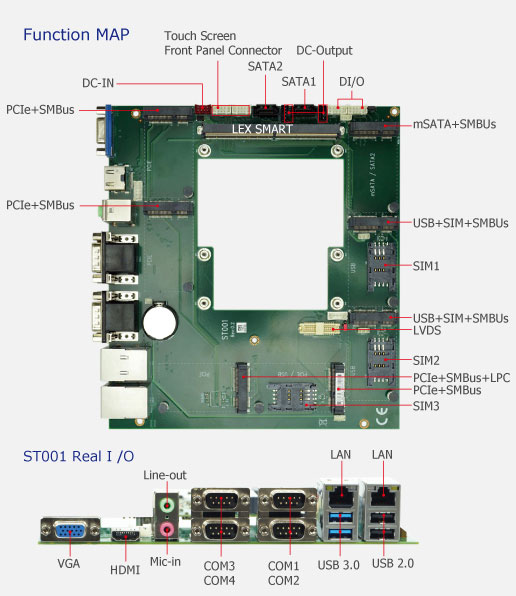

| ST001 |
|
| • |
Flexible interface for verification |
| • |
Expedite customer's evaluation board development |
| • |
200 x 180mm form factor |
| • |
IO Interface: |
| |
1 x VGA, 1 x HDMI,
7 x mini PCIe, 3 x SIM holder,
2 x USB 3.0, 2 x USB 2.0,
4 x COM, 2 x GbE, Line-out, Mic-in |
| |
 |
|
|
 |
|
|
 |
 |
|

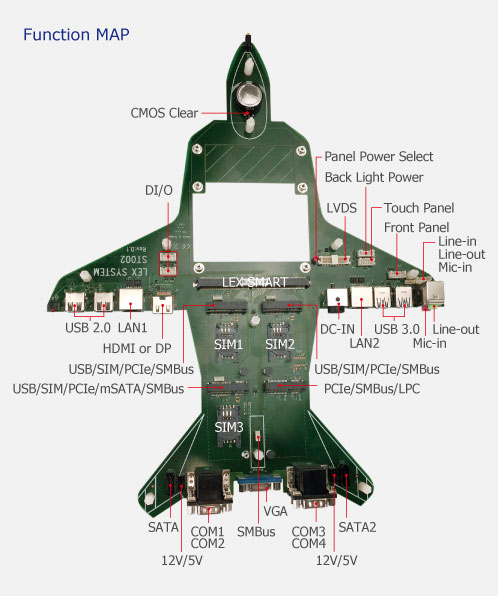

| ST002 |
|
| • |
Flexible interface for verification |
| • |
Expedite customer's evaluation board development |
| • |
IO Interface: |
| |
1 x VGA, 1 x HDMI or DP,
4 x mini PCIe, 3 x SIM holder,
2 x USB 3.0, 2 x USB 2.0,
4 x COM, 2 x GbE, Line-out, Mic-in |
| |
|
|
|
| |
|
|
|
