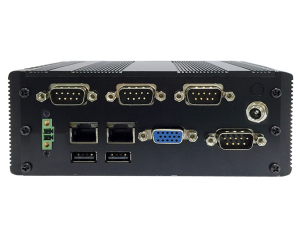

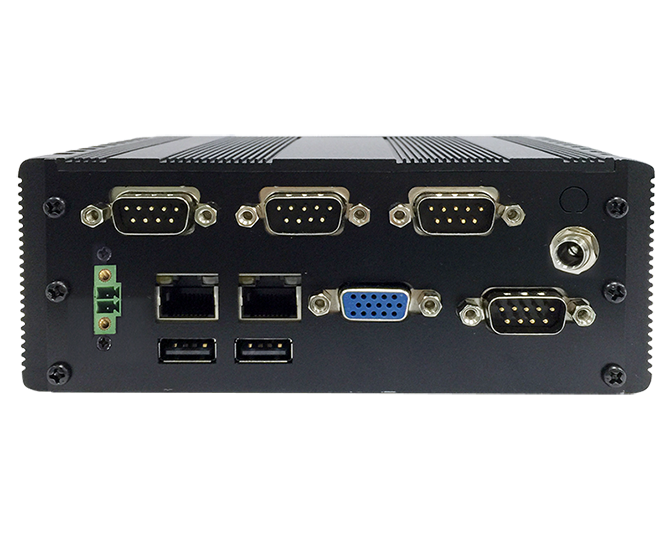

Embedded Box PC

TERA 2I385CW / 2I385A

Compact Fanless Embedded Computer with Intel® Bay Trail Processor

Features

  • Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
  • On Board DDR3L
  • 2 / 4GB 2 x GbE, 4 x COM, VGA, 2 x USB
  • Wide Range 9~36V DC input

Watch Video

MODEL

TERA + 2I385CW / 2I385A

System Dimension(WxDxH)

145W x 106.2D x 56.5H mm

Weight(Incl.M/B)

0.9 kg

CPU

Intel® Bay Trail E3845 / E3825 / J1900

Chipset

Intel® Bay Trail SoC

Memory

On Board DDR3L 2 / 4GB

Storage

mSATA, HDD / SSD*

Expansion slots

1 x Full-size Mini PCIe (PCIe / USB / mSATA)

1 x Half-size Mini PCIe (USB / mSATA)

I/O ports

Network

2 x Intel GbE

USB

2 x USB 2.0

Serial ports

4 x COM

Display

1 x VGA

Optional Modules

GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM,

& Accessory

battery UPS, DI/DO, Video Input



SATA Kit*, VESA Mount*, Wall Mount*

Power

DC input : +9~36V (2I385CW) ; +12V (2I385A)

AC input : External AC / DC adapter 100 / 240V 30W

Operating Temp.

-20°C to +60°C with mSATA / SSD

(100 % CPU usage)

0°C to +50°C with HDD

Storage Temp.

-20°C to +70°C

Relative Humidity

95% @ 40°C, non-condensing

OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
