DIN-Rail System
Edge AI & Vision Learning

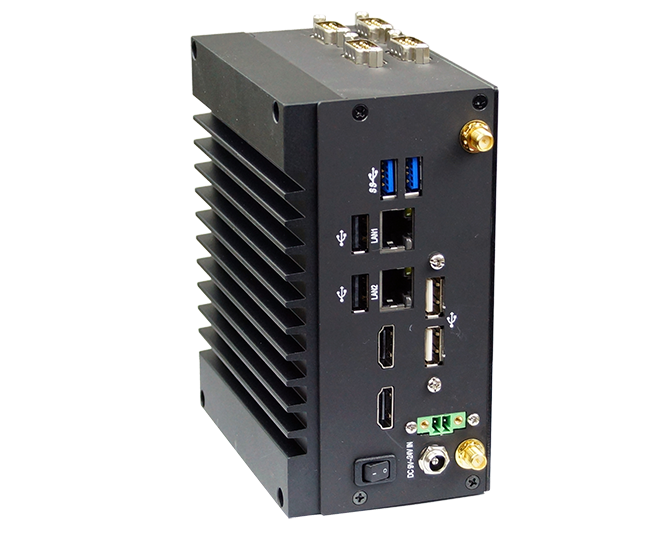

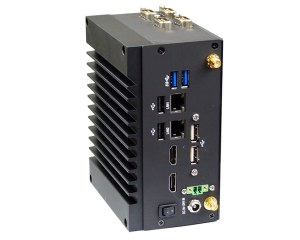

SKY 2 - 2I640CW

Compact DIN-Rail Embedded Computer
with Elkhart Lake ATOM® X6413E / J6412 Processor


SKY 2 2I640CW is a compact fanless DIN-Rail computer with dimensions measuring just 71.9 x 111.2 x 145 mm. It features Intel Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, AIot , edge computing and gateway.

SKY 2 2I640CW is equipped with multiple I/O, such as 2 x HDMI, 2 x 2.5 Gb Ethernet ports, 2 x USB 3.0 ports, 4 x USB 2.0 ports and 4 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 & Mini PCIe slots, the SKY 2 2I640CW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.

The attributes of low power consumption and lightweight mechanical design also make SKY 2 2I640CW an ideal solution for projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.




  • Elkhart Lake ATOM® X6413E / J6412 CPU CPU
  • On Board 4 / 8GB LPDDR4
  • Multiple Independent display: 2 x HDMI or DP
  • 2 x Intel 2.5 GbE LAN, 2 x USB 3.0, 4 x USB 2.0, 4 x COM
  • 1 x M.2, 1 x Nano SIM, 1 x Mini PCIe, 4DI / 4DO

Watch Video

Motherboard 2I640CW
Dimension(WxDxH) 145W x 111.2D x 71.9H mm
Weight(Incl.M/B) 1.36 kg
CPU Intel® Elkhart Lake ATOM x6413E Quad Core 2.7 GHz CPU Intel®
Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU
Chipset Intel Elkhart Lake SoC
Memory On Board LPDDR4 4 / 8GB
Storage M.2, SSD
Expansion slots 1 x M.2 B Key Type3042
(USB 2.0 / SATA / USB 3.0-optional to PCIe x2)
1 x Nano SIM
1 x Mini PCIe (USB 2.0 / PCIe)
I/O portsNetwork 2 x Intel 2.5 GbE I225 / I226
USB 2 x USB 3.0, 4 x USB 2.0
Serial ports 1 x RS232 / 422 / 485 ;
3 x RS232
Display 2 x HDMI
DIO 4DI / 4DO (option)
Optional Modules
& Accessory
4G / 5G LTE, M.2 Module
*VESA Mounting Kit, *DIN-Rail Mounting Kit
Power DC input : Wide Range +9~24V
Operating Temp.
(100 % CPU usage)
20°C to +60°C (X6413E)
0°C to +60°C (J6412)
*With wide range temperature memory & storage
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support Windows® 10 IOT (64bit)
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
