NET-III 2I640DW
with Elkhart Lake ATOM® X6413E / J6412 Processor
Overview

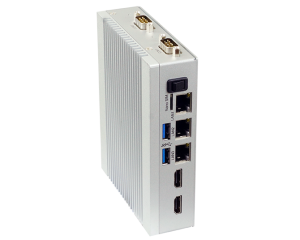

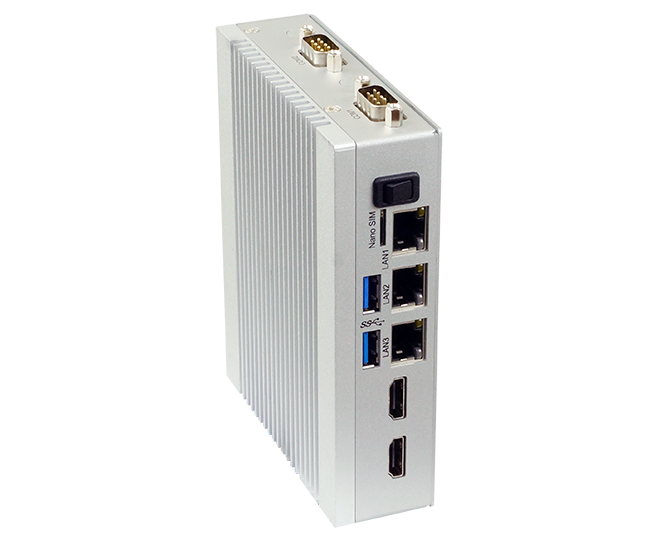

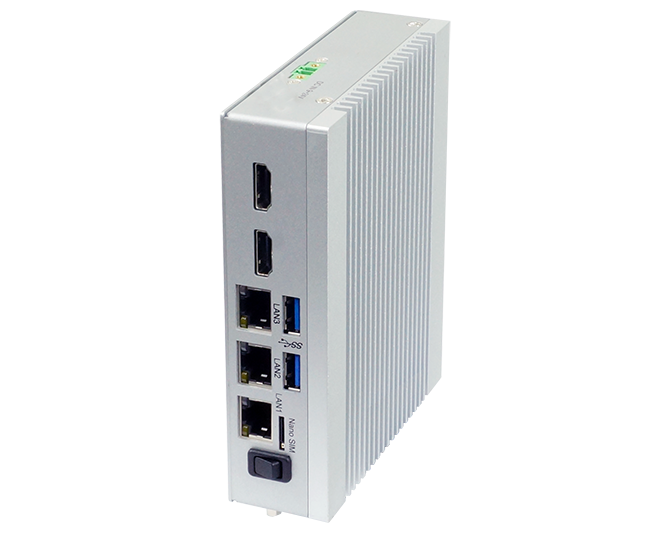

NET-III 2I640DW is an extremely compact fanless DIN-Rail computer with dimensions measuring just 35 x 110 x 135 mm. It features Intel Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, AIot , Edge computing and gateway.
NET-III 2I640DW is equipped with multiple I/O, such as 2 x HDMI, 3 x 2.5 Gb Ethernet ports, 2 x USB 3.0 portsand 2 x COM ports for industrial communication and control. In addition, by adopting M.2 slot, the NET-III 2I640DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of low power consumption and lightweight mechanical design also make NET-III 2I640DW an ideal solution for projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- Elkhart Lake ATOM® X6413E / J6412 CPU CPU
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI or DP
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 2 x COM
- 2 x M.2, 1 x Nano SIM
| MODEL | NET-III 2I640DW | |
|---|---|---|
| Motherboard | 2I640DW | |
| System Dimension(WxDxH) | 135W x 110D x 35H mm | |
| Weight(Incl.M/B) | 0.75 kg | |
| Mounting | DIN-Rail Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Storage | M.2 | |
| Expansion slots | 1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x Nano SIM 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0 / SATA) |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 |
| USB | 2 x USB 3.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI | |
| Optional Modules & Accessory |
CN064: M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067: M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) *DIN-Rail Mounting Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
